Installation and Operating Instructions
MODEL: CT400/CT450

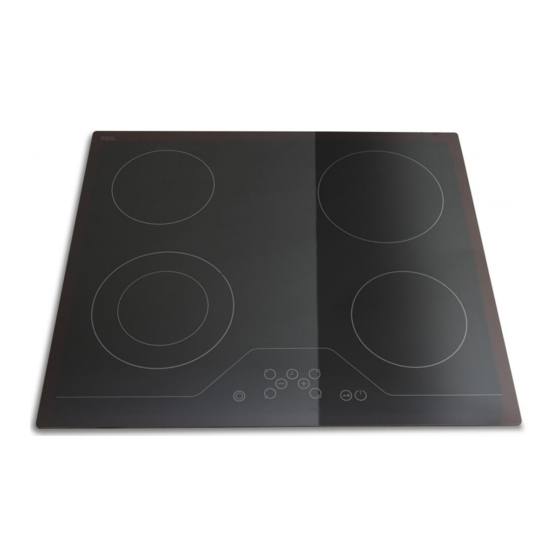

Built-In 4 Zone Ceramic Hob
(Picture shown for indicative purposes only
)
Please read these instructions carefully before attempting to install or use this appliance.
It is advisable to keep these instructions in a safe place for future reference.
Advertisement
Related Manuals for montpellier CT400
Summary of Contents for montpellier CT400

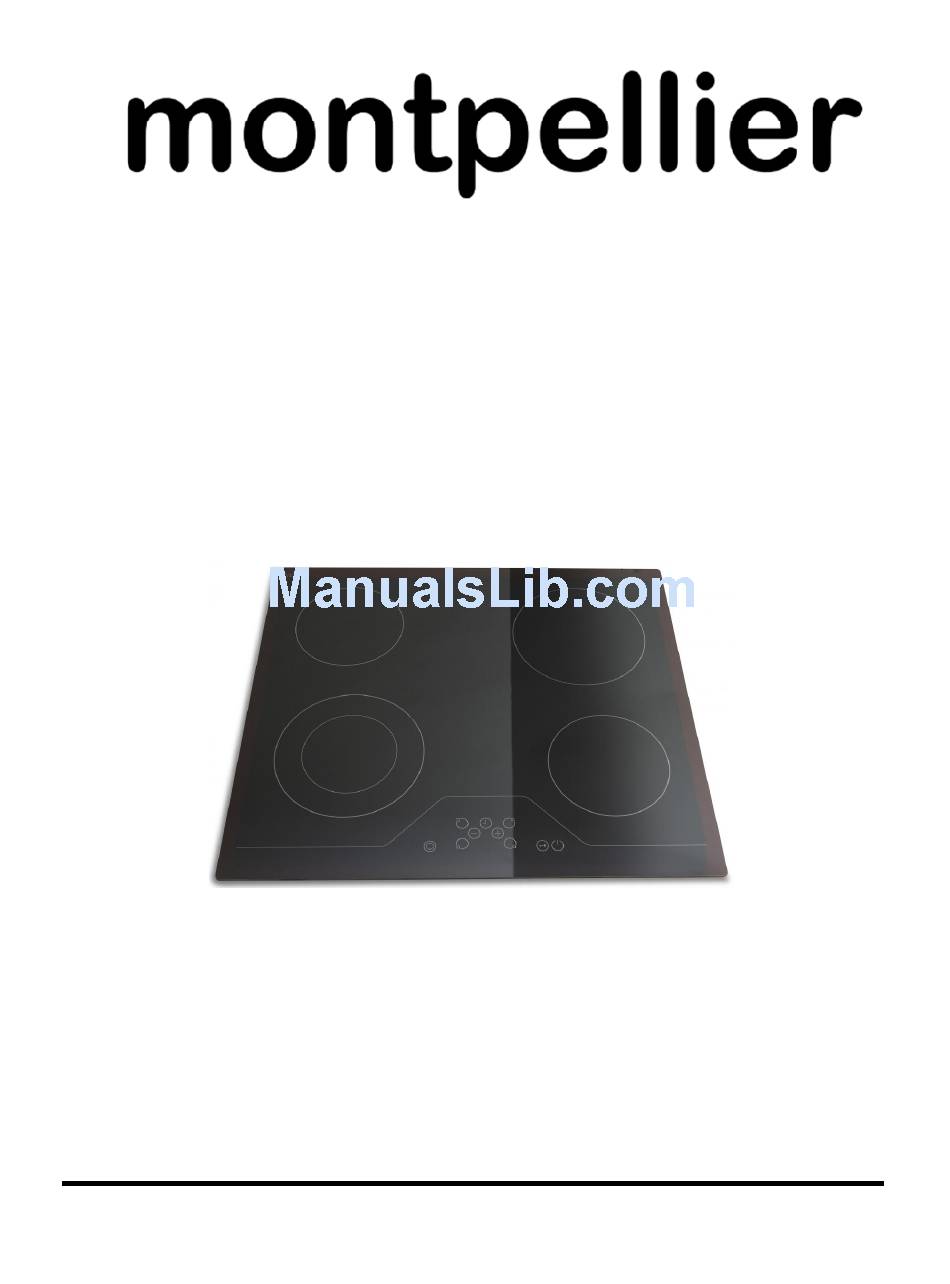

- Page 1 Installation and Operating Instructions MODEL: CT400/CT450 Built-In 4 Zone Ceramic Hob (Picture shown for indicative purposes only Please read these instructions carefully before attempting to install or use this appliance. It is advisable to keep these instructions in a safe place for future reference.
- Page 2 Introduction montpellier branded appliance . It Thank you for choosing this has been designed to give years of trouble-free use provided it is installed and maintained correctly. Please read these instructions carefully before installing or using your appliance. It is advisable to keep your purchase and installation receipts with these instructions in a safe place for future reference.
- Page 3 Your 2 year Manufacturer's guarantee THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS. Your new montpellier appliance carries a free guarantee which protects you against the cost of repairs during the first 24 months from date of purchase provided that: Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase, such as a Sales Receipt, showing that the appliance was purchased within the 24 months prior to the date of claim.
-
Page 4: Description Of The Appliance
Description of the Appliance 1. Small Cook Zone 2. Large Cook Zone 3. Touch Controls 4. Large Dual Cook Zone (Picture shown is for indicative purposes only) - Page 5 CONTENTS: Section 1. Installation Section 2. Safety Advice Section 3. Operating the Appliance Section 4. Maintenance...
- Page 6 Section 1. Installation Remove all packaging, protective film and securing tape from the appliance. Position the appliance in a dry atmosphere. The following dimensions are provided as a guide for installation – your installer will carry out the installation in accordance with the current regulations. Your installer will connect the power cable in accordance with the current regulations.
- Page 7 1.3. Electrical Connection This appliance must be ‘hard wired’ to a suitable fused point adjacent to the appliance housing and protected with a 32 amp fuse. Please note that a switchable spur should be accessible above the work surface to allow the power to be turned off. Note: This hob cannot be connected via a 3pin plug! Your installer will connect this appliance in accordance with current regulations.
- Page 8 Section 2. Safety Advice - Please read this booklet thoroughly before installing and switching on the appliance. The manufacturer accepts no responsibility for incorrect installation and usage. - This appliance is guaranteed for Domestic Use Only. - The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their...
- Page 9 Section 3. Operating the Appliance 3.1. Control Panel 3.2. Timer, Power and Cooking Functions Switching the appliance on: Switch the hob on by touching the ON/OFF key . All heater displays show a static “0” and the bottom right dot will blink. If no cooking zone is selected within 10 seconds, the hob will automatically turn off.
- Page 10 Switching the cooking zones off: A cooking zone can be turned off in 3 different ways: · Simultaneous operation of the keys. · Reducing the heat setting to “0” by operating key. · Use of the timer turn off function. If the cooking zone is hot, “H”...
- Page 11 Child Lock: After switching on the control, the child lock function can be activated. To activate the child lock, simultaneously operate the increase heat setting key and decrease heat again. “L” meaning setting key , and then operate the increase heat setting key LOCKED will appear in all the heater displays and the control cannot be changed.
- Page 12 Section 4. Maintenance Before any maintenance or cleaning work is carried out, DISCONNECT the appliance from the ELECTRICITY supply and ensure that the appliance is completely cool. 4.1. Cleaning the Hob Surface Clean spillages from the hob surface as soon as possible after use. Always ensure that the surface has cooled down before cleaning.
- Page 13 If after the previous checks there is still a fault, please contact the Repairtech Service Helpline below. Please ensure that you have the model number, serial number, date of purchase and retailers information available before you make the call. Should your appliance develop a fault, please call the Repairtech Service Helpline on: 01527-888133...
-
Page 14: Important Note
Important Note: This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
