Installation and Operating Instructions
Models:
MON-INT30T15 & MON-INT60T15
(Pictures indicative of models supplied)
Please read these instructions carefully before attempting to install or use this appliance.
It is advisable to keep these instructions in a safe place for future reference.
N.B. Should your appliance require attention, our service agents will not be able to book
a service call without your unique serial number which can be found on the last page of
.
this manual
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for montpellier MON-INT30T15
Summary of Contents for montpellier MON-INT30T15

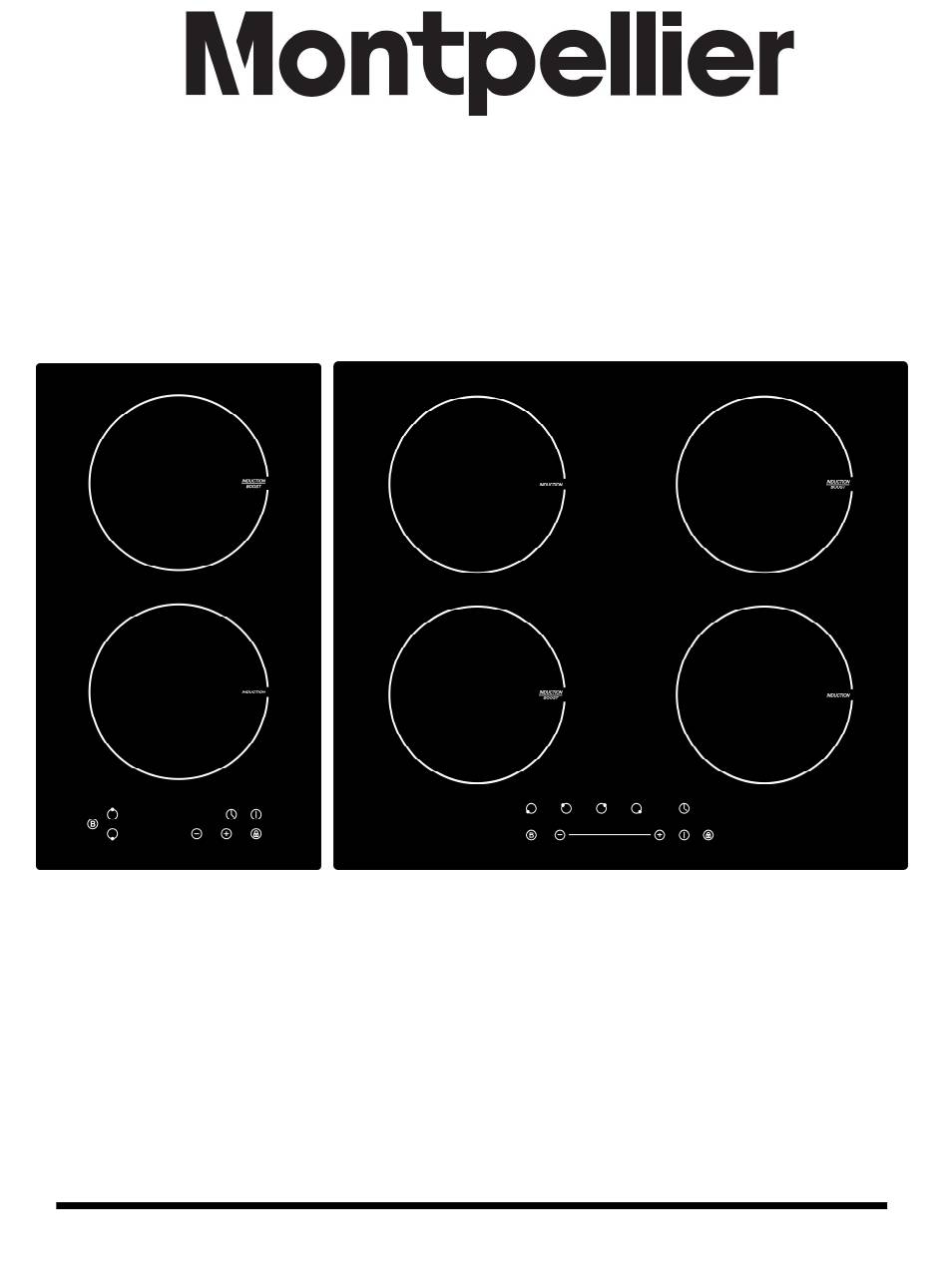

- Page 1 Installation and Operating Instructions Models: MON-INT30T15 & MON-INT60T15 (Pictures indicative of models supplied) Please read these instructions carefully before attempting to install or use this appliance. It is advisable to keep these instructions in a safe place for future reference.
- Page 2 Introduction Thank you for choosing this Montpellier branded appliance . It has been designed to give years of trouble-free use provided it is installed and maintained correctly. Please read these instructions carefully before installing or using your appliance. It is advisable to keep your purchase and installation receipts with these instructions in a safe place for future reference.
- Page 3 Your 2 year Manufacturer's guarantee THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS. Your new Montpellier appliance carries a free guarantee which protects you against the cost of repairs during the first 24 months from date of purchase provided that: Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase, such as a Sales Receipt, showing that the appliance was purchased within the 24 months prior to the date of claim.

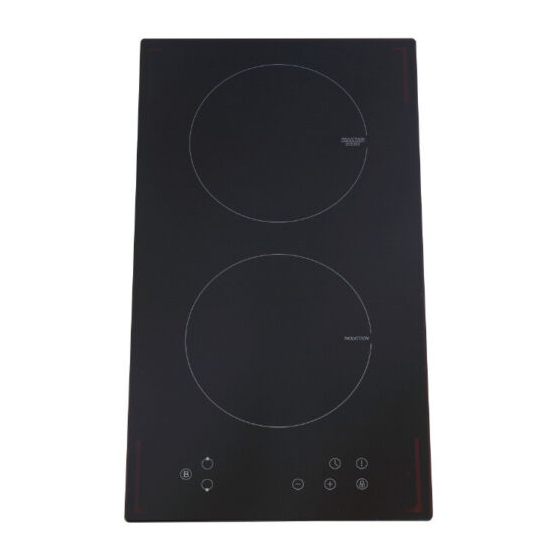

- Page 4 Description Of The Appliance MON-INT30T15 1. 2000W (Plus Boost Function) Cook Zone 2. 1500W Cook Zone 3. Main Function Controls 4. Boost Function Control...
- Page 5 MON-INT60T15 1. 2000W (Plus Boost Function) Cook Zone 2. 1500W Cook Zone 3. Main Function Controls 4. Boost Function Control...
- Page 6 CONTENTS: Section 1. Installation Section 2. Safety Advice Section 3. Operating the Appliance Section 4. Maintenance...
- Page 7 The work surface must have a thickness of at least 30mm. The work surface must be heat resistant. Model L(mm) W(mm) H(mm) D(mm) A(mm) B(mm) X(mm) MON-INT60T15 50 mini MON-INT30T15 62.5 58.5 268＋4 500＋4 50 mini...
- Page 8 1.2. Space to Rear or Side Wall A = 760mm B = 50mm (min) C = 20mm (min) D = Air Gap/Intake E = Air Exit (5mm) 1.3. Fixing Brackets Fix the brackets as shown below: a) Screw b) Bracket c) Screw Hole d) Base of hotplate...
- Page 9 1.4. Electrical Connection These appliances have a total Power Rating of 3500W (MON- INT30T15) and 7000W (MON-INT60T15) and must be ‘hard wired’ into a suitable fused spur adjacent to the appliance housing. The product must be installed by a Qualified Electrician.
- Page 10 Section 2. Safety Advice Please read this booklet thoroughly before installing and switching on the appliance. The manufacturer accepts no responsibility for incorrect installation and usage. This appliance is guaranteed for Domestic Use Only. This appliance shall not be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction on how...
- Page 11 Induction Hobs. Never allow melamine or plastic containers to come in contact with the heat zones. 3.2. Control Panel 3.2.1. MON-INT30T15 1. On/Off Control 2. Heat Zone Selection Controls 3. Power & Timer Regulation Control 4.
- Page 12 3.2.2. MON-INT60T15 1. On/Off Control 2. Heat Zone Selection Controls 3. Power & Timer Regulation Control 4. Child Lock Control 5. Timer Control 6. Boost Control 3.3. Power, Cooking & Timer Functions 3.3.1. On-Off To turn the appliance on or off, press and hold the Power On/Off control (1) until you hear a ‘beep’.
- Page 13 3.3.3. Power Boost You can use the ‘Boost’ function to boost the power of the relevant heat zone for a maximum of 5 minutes. To operate, press the heat zone selection button (boost zone only) and then press the Boost function control (6). The heat zone will operate at full power for 5 minutes.
- Page 14 3.3.5. Child Lock To activate the Child Lock, press and hold the Child Lock control (4) until ‘Lo’ is displayed. The lock will now be set and the appliance will not operate. To unlock the Child Lock, simply press and hold the Child Lock control again until the display is removed. 3.3.6.
- Page 15 Section 4. Maintenance Before any maintenance or cleaning work is carried out, DISCONNECT the appliance from the ELECTRICITY supply and ensure that the appliance is completely cool. 4.1. Cleaning the Hob Surface Clean spillages from the hob surface as soon as possible after use. Always ensure that the surface has cooled down before cleaning.
- Page 16 The display indicates E5: This indicates high temperature. Allow the hob to cool down then start again The hob makes a ‘clicking’ noise during use: This is quite normal – it is the sound of the induction coils during operation. For all other error codes, switch off and call your service provider.
- Page 17 Important Note: This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
