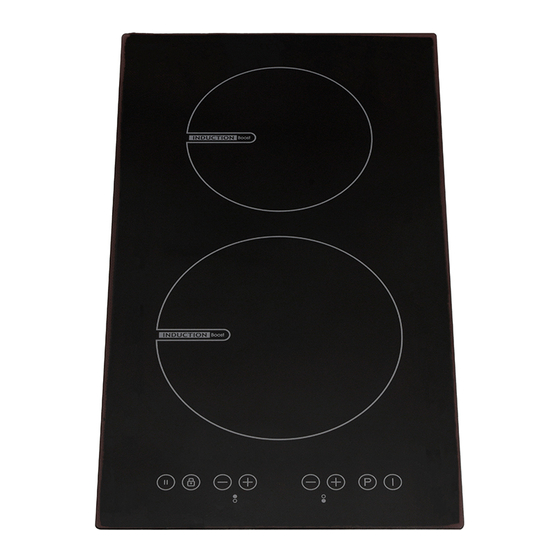

30cm Induction Domino Hob
INT300 - 2 Zones - Front Touch Control
Please read these instructions carefully before attempting to install or use this appliance.
We recommend that you keep these instructions in a safe place for future reference.
THE PERFECT BALANCE OF FUNCTION AND STYLE
LAUNDRY - DISHWASHING - COOKING - COOLING
Installation and Operating Instructions
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for montpellier INT300
Summary of Contents for montpellier INT300
- Page 1 Installation and Operating Instructions 30cm Induction Domino Hob INT300 - 2 Zones - Front Touch Control Please read these instructions carefully before attempting to install or use this appliance. We recommend that you keep these instructions in a safe place for future reference.
- Page 2 Welcome Thank you for choosing this Montpellier Induction Hob. Our hobs have been designed to provide you with the best combination of style, reliability and performance to give you years of trouble-free use. You may be familiar with a similar product, but please take time to read these instructions carefully before installing or using your Induction Hob to ensure you get the most from your purchase.
- Page 3 Thank you for choosing this product. This User Manual contains important safety information and instructions on the operation and maintenance of your appliance. Please take the time to read this User Manual before using your appliance and keep this book for future reference. Icon Type Meaning...
-
Page 4: Table Of Contents
CONTENTS 1.SAFETY INSTRUCTIONS ....................4 1.1. General Safety Warnings ....................4 1.2. Installation Warnings .....................6 1.3. During Use........................7 1.4. During Cleaning and Maintenance ................7 2.INSTALLATION AND PREPARATION FOR USE ..............9 2.1. Instructions for the Installer ...................9 2.2. Installation of the Hob ....................9 2.3. -
Page 5: Safety Instructions
1. SAFETY INSTRUCTIONS • Carefully read all instructions before using your appliance and keep them in a convenient place for reference when necessary. • This manual has been prepared for more than one model therefore your appliance may not have some of the features described within. - Page 6 • For induction hobs, metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface because they can get hot. • For induction hobs, after use switch off the hob element using the control knob. Do not rely on the pan detector.
-
Page 7: Installation Warnings
household use only. It should not be used for any other purpose or in any other application, such as for non-domestic use, in a commercial environment or for heating a room. • All possible measures have been taken to ensure your safety. -
Page 8: During Use
• The temperature of the bottom surface of the hob may rise during operation, therefore a board must be installed underneath the product. 1.3. During Use • Do not put flammable or combustible materials in or near the appliance when it is operating. Do not leave the cooker unattended while cooking with solid or liquid oils. - Page 9 CE Declaration of conformity We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced. This appliance has been designed to be used only for home cooking. Any other use (such as heating a room) is improper and dangerous.
-
Page 10: Installation And Preparation For Use
2. INSTALLATION AND PREPARATION FOR USE WARNING: This appliance must be installed by an authorised service person or qualified technician, according to the instructions in this Minimum Minimum 42 cm 42 cm guide and in compliance with the current local regulations. Incorrect installation may cause harm •... - Page 11 Separator Apply the supplied one-sided self- • adhesive sealing tape all the way Worktop mounting around the lower edge of the cooktop. bracket Do not stretch it. Self-adhesive sealing tape Screw the 4 worktop mounting brackets • to the side walls of product. EN - 11...
-
Page 12: Electrical Connection And Safety
Insert the appliance into the aperture. • Yellow+Green 2.3. eleCtriCal ConneCtion anD Safety WARNING: The electrical connection of this appliance should be carried out by an authorised service person or qualified electrician, according to the instructions in this guide and in compliance Brown Blue with the current local regulations. -
Page 13: Product Features
3. PRODUCT FEATURES Important: Specifications for the product vary and the appearance of your appliance may differ from that shown in the figures below. List of Components 1. Induction zone 2. Control Panel EN - 13... -
Page 14: Use Of Product
4. USE OF PRODUCT 4.1. Control of hob Control of the Induction zone The information given in the following table is for guidance only. Settings Use for Circular Saucepan Base Element off Delicate warming Gentle simmering, slow warming Reheating and rapid simmering Boiling, saute and searing Small Saucepan Saucepan base that... - Page 15 (If a cooking-zone is not selected within 20 power for the activated heater(s) will reduce seconds, the hob will automatically turn off). to level 1 and ´II` will appear at all displays. Switching the appliance off Touch ( ) again to deactivate Smart Pause.
-
Page 16: Cleaning And Maintenance
Buzzer Calibration error. Call authorised service While the hob is in operation, the following agent. activities will be signalled by the buzzer: • Normal button activation will be 5. CLEANING AND accompanied with a short sound signal MAINTENANCE • Continuous button operation over a longer period of time (10 seconds) 5.1. - Page 17 durability of the ceramic and is not due to a change in the material. Colour changes to the ceramic glass may be for a number of reasons: 1. Spilt food has not been cleaned off the surface. 2. Using incorrect dishes on the hob will erode the surface.
-
Page 18: Troubleshooting&Transport
6. TROUBLESHOOTING&TRANSPORT 6.1. troubleShootinG If you still have a problem with your appliance after checking these basic troubleshooting steps, please contact an authorised service person or qualified technician. Problem Possible Cause Solution Check the household fuse for the Hob control card’s display is appliance. -
Page 19: Technical Specifications
7. TECHNICAL SPECIFICATIONS 7.1. Energy Fiche Brand Model INT300 Type of Hob Electric Number of Cooking Zones Heating Technology-1 Induction Size-1 Ø16,0 Energy Consumption-1 Wh/kg 189.0 Heating Technology-2 Induction Size-2 Ø20,0 Energy Consumption-2 Wh/kg 189.0 Energy Consumption of Hob Wh/kg 189.0... - Page 20 Your 2 year Manufacturer’s guarantee THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS. Your new Montpellier appliance carries a free guarantee which protects you against the cost of repairs during the first 24 months from date of purchase provided that: Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase, such as a Sales Receipt, showing that the appliance was purchased within the 24 months prior to the date of claim.
- Page 21 Montpellier Domestic Appliances Ltd. Unit 1, Tewkesbury Retail Park, Northway Lane, Tewkesbury, Gloucestershire GL20 8JU www.montpellier-appliances.com The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
