Built In Ceramic Hob - 15min Timer
CER30T15/CER60T15 - 30cm/60cm
Please read these instructions carefully before attempting to install or use this appliance.
We recommend that you keep these instructions in a safe place for future reference.
THE PERFECT BALANCE OF FUNCTION AND STYLE
LAUNDRY - DISHWASHING - COOKING - COOLING
Installation and Operating Instructions
Advertisement
Related Manuals for montpellier MON-CER60T15
Summary of Contents for montpellier MON-CER60T15
- Page 1 THE PERFECT BALANCE OF FUNCTION AND STYLE LAUNDRY - DISHWASHING - COOKING - COOLING Installation and Operating Instructions Built In Ceramic Hob - 15min Timer CER30T15/CER60T15 - 30cm/60cm Please read these instructions carefully before attempting to install or use this appliance. We recommend that you keep these instructions in a safe place for future reference.
- Page 2 Welcome Thank you for choosing this Montpellier Ceramic Hob. Our Ceramic Hobs have been designed to provide you with the best combination of style, reliability and performance to give you years of trouble-free use. You may be familiar with a similar product, but please take time to read these instructions carefully before installing or using your Hob to ensure you get the most from your purchase.
-
Page 3: Description Of The Appliance

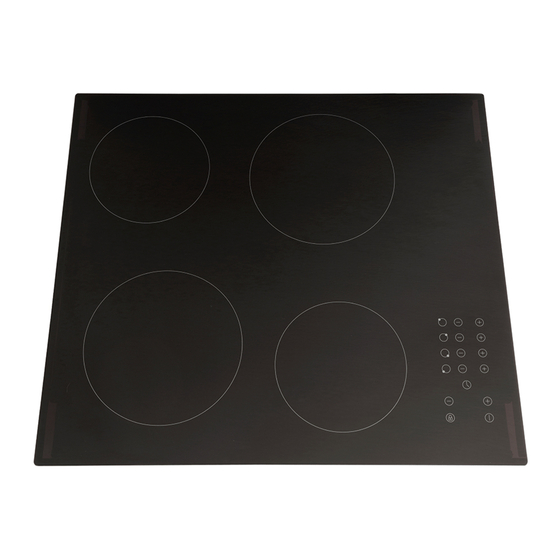

Description Of The Appliance MON-CER30T15 1. 1800W Cook Zone 2. 1200W Cook Zone 3. Function Controls 4. Ceramic Glass Plate... - Page 4 MON-CER60T15 1. 1800W Cook Zone 2. 1200W Cook Zone 3. Function Controls 4. Ceramic Glass Plate...
- Page 5 CONTENTS: Section 1. Installation Section 2. Safety Advice Section 3. Operating the Appliance Section 4. Maintenance...
- Page 6 For installation and use, a minimum of 5cm must be maintained around the cut-out. The work surface must have a thickness of at least 30mm. The work surface must be heat resistant. Model L(mm) W(mm) H(mm) D(mm) A(mm) B(mm) X(mm) MON-CER60T15 50 mini MON-CER30T15 50 mini 268＋4 500＋4...
- Page 7 1.2. Space to Rear or Side Wall A = 760mm B = 50mm (min) C = 20mm (min) D = Air Gap/Intake E = Air Exit (5mm) 1.3. Fixing Brackets Fix the brackets as shown below: a) Screw b) Bracket c) Screw Hole d) Base of hotplate...
- Page 8 1.4. Electrical Connection These appliances have a total Power Rating of 3000W (MON- CER30T15) and 6000W (MON-CER60T15) and must be ‘hard wired’ into a suitable fused spur adjacent to the appliance housing. The product must be installed by a Qualified Electrician.
- Page 9 Section 2. Safety Advice Please read this booklet thoroughly before installing and switching on the appliance. The manufacturer accepts no responsibility for incorrect installation and usage. This appliance is guaranteed for Domestic Use Only. This appliance shall not be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction on how...
- Page 10 3.1.1. MON-CER30T15 1. On/Off Control 2. Power & Timer Regulation Controls 3. Child Lock Control 4. Heat Zone Selection Controls 5. Timer Control 3.1.2. MON-CER60T15 1. On/Off Control 2. Heat Zone Selection Controls 3. Child Lock Control 4. Power Regulation Controls 5.
- Page 11 3.2. Timer, Power and Cooking Functions 3.2.1. On-Off To turn the appliance on or off, press and hold the Power On/Off control (1) until you hear a ‘beep’. When the appliance powers up, the heat zone indicators will display. 3.2.2. Setting the Zone Temperature Press the required heat zone and then use the ‘+’...
- Page 12 Select the required time between 1 and 15 minutes by using the ‘+’ or ‘-‘ on MON-CER30T15 or Timer Regulation controls (6) on the MON-CER60T15. Now the heat zone will operate for the selected time and automatically turn off at the end of the period. An audible signal will also be heard at the end of the time period.
- Page 13 Section 4. Maintenance Before any maintenance or cleaning work is carried out, DISCONNECT the appliance from the ELECTRICITY supply and ensure that the appliance is completely cool. 4.1. Cleaning the Hob Surface Clean spillages from the hob surface as soon as possible after use. Always ensure that the surface has cooled down before cleaning.
- Page 14 Your 2 year Manufacturer’s guarantee THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS. Your new Montpellier appliance carries a free guarantee which protects you against the cost of repairs during the first 24 months from date of purchase provided that: Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase, such as a Sales Receipt, showing that the appliance was purchased within the 24 months prior to the date of claim.
- Page 15 Montpellier Domestic Appliances Ltd. Unit 1, Tewkesbury Retail Park, Northway Lane, Tewkesbury, Gloucestershire GL20 8JU www.montpellier-appliances.com The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
