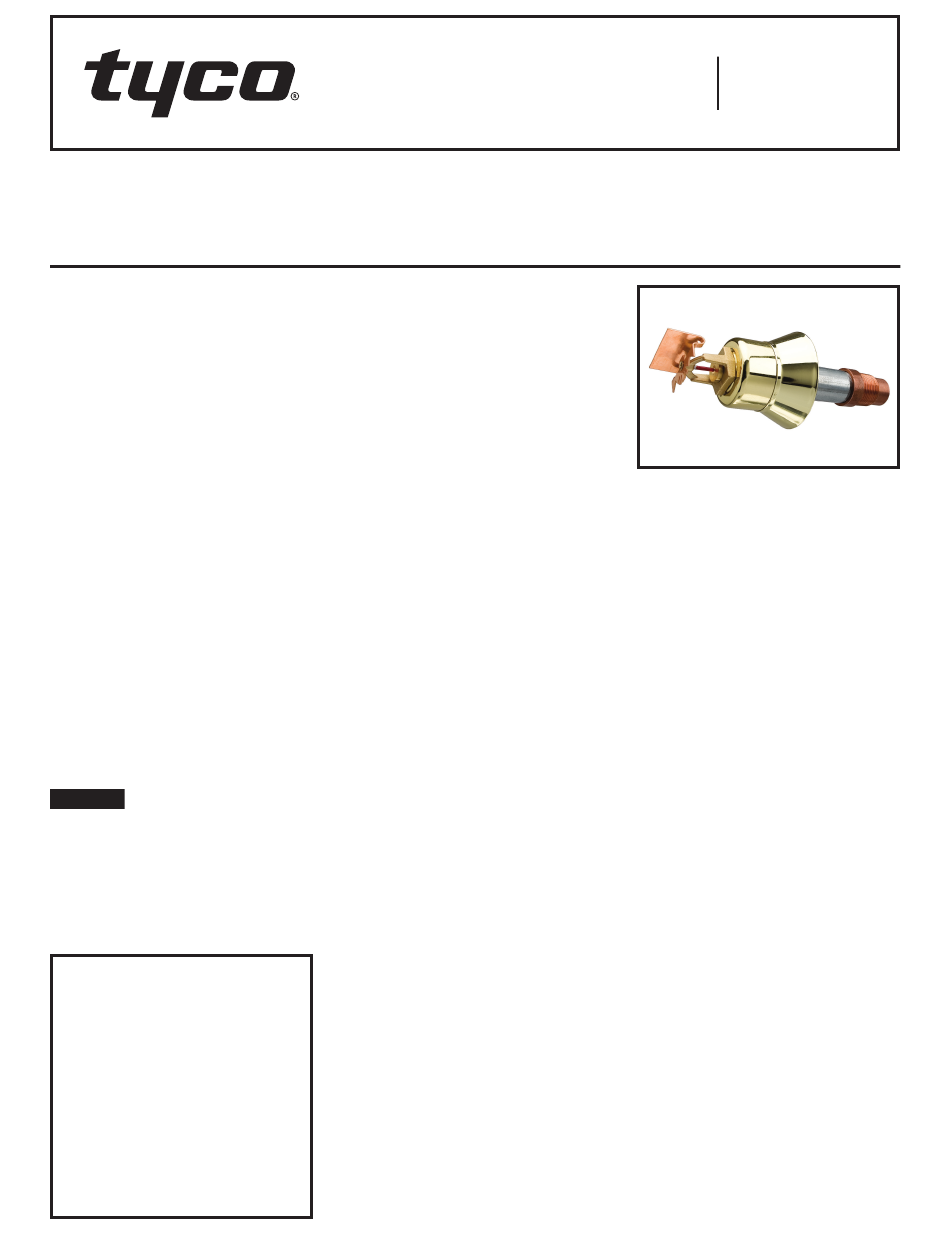

Series DS-3 Dry-Type Sprinklers
11.2K Horizontal Sidewall
Standard Response, Extended Coverage
General
Description

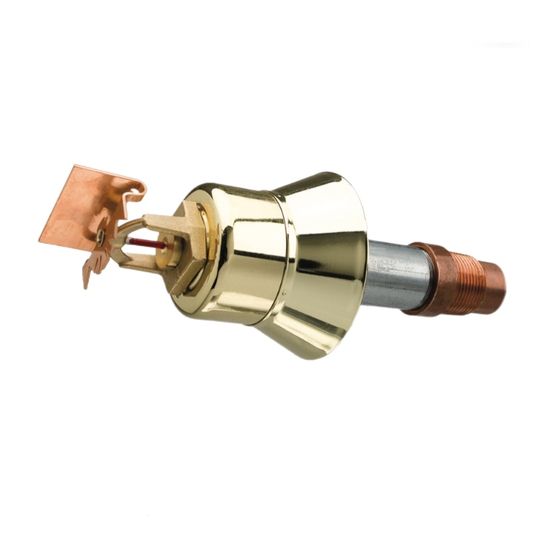

TYCO Series DS-3 Dry-Type Sprinklers,
11�2K Horizontal Sidewall, Standard
Response, Extended Coverage, Ordi-
nary Hazard (ECOH) are decorative
glass bulb automatic sprinklers� They
are intended for use in applications
where the sprinklers and/or a portion of
the connecting piping may be exposed
to freezing temperatures; for example,
horizontal piping extensions through a
wall to protect an unheated area of a
building�
Series DS-3 Extended Coverage
Ordinary Hazard Horizontal Sidewall,
Dry-Type Sprinklers are designed for
extended coverage use in ordinary
hazard occupancies (ECOH) per NFPA
13�
Series DS-3 Dry-Type Sprinklers
provide protection of coverage areas
up to 16 ft x 20 ft (320 ft ) as compared
2
to standard coverage horizontal side-
wall sprinklers having a maximum cov-
erage area of 10 ft x 10 ft (100 ft
ordinary hazard occupancies�
NOTICE
Series DS-3 Dry-Type Sprinklers
described herein must be installed
and maintained in compliance with this
document, as well as with the applica-
ble standards of the NATIONAL FIRE
PROTECTION ASSOCIATION (NFPA),
in addition to the standards of any other
authorities having jurisdiction. Failure
IMPORTANT
Refer to Technical Data Sheet
TFP2300 for warnings pertaining to
regulatory and health information.
Always refer to Technical Data
Sheet TFP700 for the "INSTALLER
WARNING" that provides cautions
with respect to handling and instal-
lation of sprinkler systems and com-
ponents. Improper handling and
Installation can permanently damage
a sprinkler system or its compo-
nents and cause the sprinkler to fail
to operate in a fire situation or cause
it to operate prematurely.
Page 1 of 8
to do so may impair the performance
of these devices.
The owner is responsible for main-
taining their fire protection system
and devices in proper operating con-
dition. Contact the installing contrac-
tor or product manufacturer with any
questions.
Series DS-3 Dry-Type Sprinklers must
only be installed in fittings that meet
the requirements of the Design Criteria
section. Installation of Series DS-3 Dry-
Type Sprinklers in a recessed installa-
tion will void all sprinkler warranties, as
well as void the sprinkler's laboratory
Approvals.
Sprinkler
Identification
Number (SIN)
TY5339
Technical
Data
) for
2
Approvals
UL and C-UL Listed
Refer to Table A and the Design Criteria
section
Maximum Working Pressure
175 psi (12,1 bar)
Inlet Thread Connections
1 Inch NPT
ISO 7-R 1
Discharge Coefficient
Refer to Table B
Temperature Ratings
155°F (68°C) and 200°F (93°C)
Finishes
Sprinkler: Refer to Table E
Escutcheon: Refer to Table E
AUGUST 2018
Worldwide
www.tyco-fire.com
Contacts

Physical Characteristics

Inlet � � � � � � � � � � � � � � � � � � � � � � � � � � � � � Copper
Plug � � � � � � � � � � � � � � � � � � � � � � � � � � � � � Copper
Yoke � � � � � � � � � � � � � � � � � � � � � � � Stainless Steel
Casing � � � � � � � � � � � � � Galvanized Carbon Steel
Insert � � � � � � � � � � � � � � � � � � � � � � � � � � � � �Bronze
Bulb Seat � � � � � � � � � � � � � � � � � � � � � � � � � �Bronze
Bulb � � � � � � � � � � � � � � � � � � � � � � � � �Glass (3 mm)
Compression Screw � � � � � � � � � � � � � � � � �Bronze
Deflector � � � � � � � � � � � � � � � � � � � � � � � � � �Bronze
Frame � � � � � � � � � � � � � � � � � � � � � � � � � � � �Bronze
Guide Tube � � � � � � � � � � � � � � � � � Stainless Steel
Water Tube � � � � � � � � � � � � � � � � � Stainless Steel
Spring � � � � � � � � � � � � � � � � � � � � � Stainless Steel
Sealing Assembly � � Beryllium Nickel w/TEFLON
Pin � � � � � � � � � � � � � � � � � � � � � � � � Stainless Steel
Button Spring � � � � � � � � � � � � � � � Stainless Steel
Helper Spring � � � � � � � � � � � � � � � Stainless Steel
Escutcheon � � � � � � � � � � � � � � � � � � �Carbon Steel

Operation

When TYCO Series DS-3 Dry-Type
Sprinklers, 11�2K Horizontal Sidewall,
Standard Response, Extended Cov-
erage, Ordinary Hazard (ECOH) are in
service, water is prevented from enter-
ing the assembly by the Plug with
Sealing Assembly (Ref� Figure 1) in the
Inlet of the sprinkler�
The glass bulb contains a fluid that
expands when exposed to heat� When
the rated temperature is reached, the
fluid expands sufficiently to shatter
the glass bulb, and the Bulb Seat is
released�
The compressed Spring is then able
to expand and push the Water Tube as
well as the Guide Tube outward� This
action simultaneously pulls inward on
the Yoke, withdrawing the Plug with
Sealing Assembly from the Inlet allow-
ing the sprinkler to activate and flow
water�
