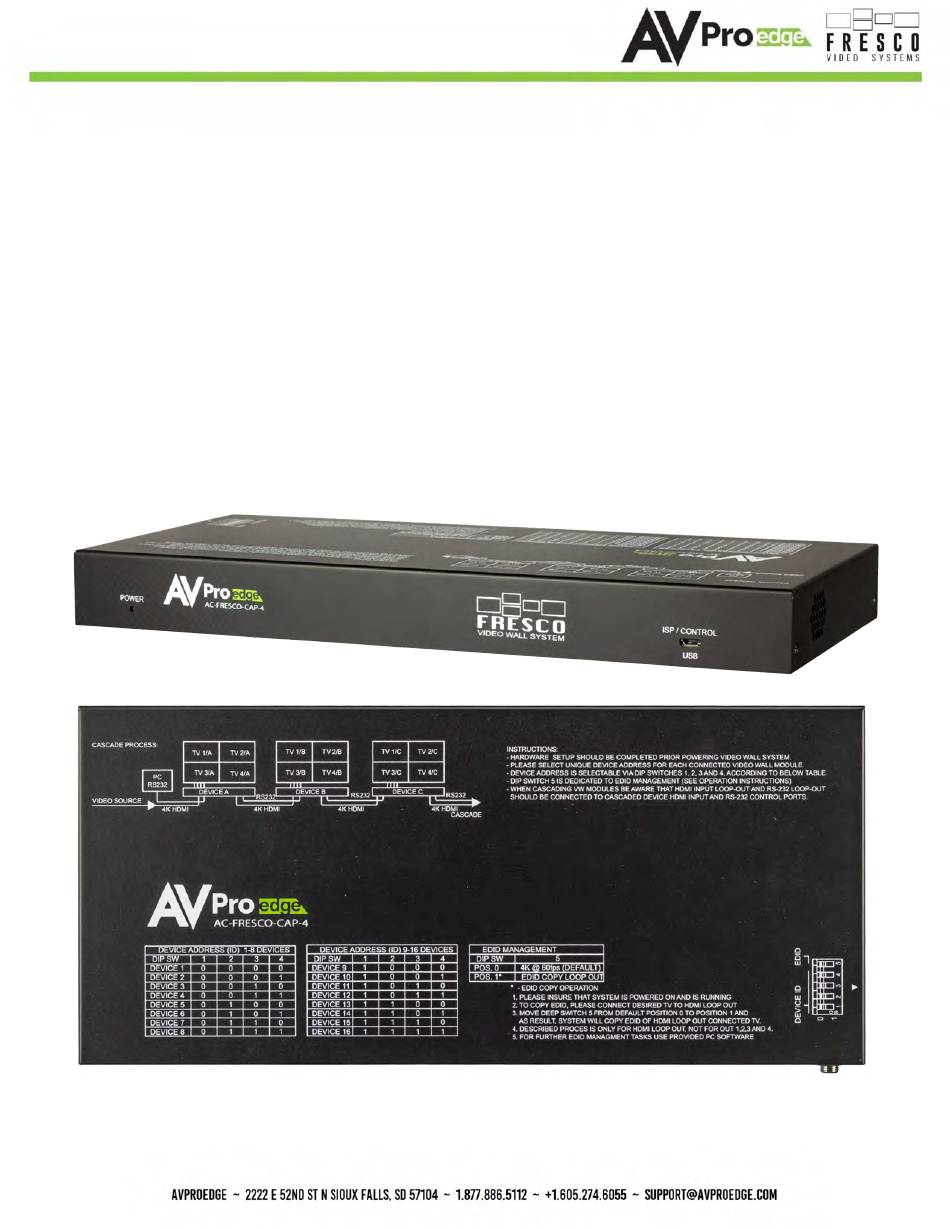

- Page 1 AC-FRESCO-CAP-4 User Manual AC-FRESCO-CAP-4 1 HDMI Input/4 HDMI Outputs - Dedicated Video Wall Processor Supports up to 18Gbps 4K60 (4:4:4) Output Resolutions Cascade Multiple Processors for Larger Video Wall Arrays Page 1...
-
Page 2: Quick Installation
AC-FRESCO-CAP-4 The AC-FRESCO-CAP-4 is a Dedicated Video Wall Processor supporting Output Resolutions up to18Gbps 4K60 (4:4:4) through its 1 HDMI Input and 4 HDMI outputs. The FRESCO is a "Plug-and-Play" 4-panel Video Wall which is expandable by cascading multiple FRESCO processors to build larger Video Wall arrays. -
Page 3: Specifications
AC-FRESCO-CAP-4 Specifications: Page 3... - Page 4 AC-FRESCO-CAP-4 Page 4...
-
Page 5: Device Overview
AC-FRESCO-CAP-4 Device Overview: • Definition - A Video Wall is a special array consisting of multiple computer monitors, video projectors, or television sets tiled together contiguously, or overlapped in order to form one large image/picture. • Video Walls are widely used in commercial and various entertainment venues. - Page 6 AC-FRESCO-CAP-4 FRESCO CONNECTION DIAGRAM & OUTPUT-TO-DISPLAY ASSIGNMENTS Page 6...
- Page 7 AC-FRESCO-CAP-4 THE FRESCO VIDEO WALL PC SOFTWARE WIZARD THE BIGGEST CHALLENGE TO SETTING UP A FRESCO VIDEO WALL IS HANGING THE PANELS! Five easy steps to video wall perfection 1. Do a great job hanging the panels 2. Launch the Fresco PC Software and connect to the Fresco Processor 3.
-
Page 8: Connection Type
AC-FRESCO-CAP-4 FRESCO PC SOFTWARE The following four pages provide step-by-step instructions for using the FRESCO PC SOFTWARE to setup and configure your FRESCO VIDEO WALL. CONNECT : NETWORK/LAN CONNECTION TYPE: • Click on box above NETWORK/LAN • Default IP = 192.168.001.239 o ( Changing the IP address requires using the web interface or sending direct control commands via an RS-232 Connection and Terminal app. - Page 9 AC-FRESCO-CAP-4 CONNECT : USB/RS-232 CONNECTION TYPE: • Click on the box above USB/RS-232. • For USB/RS-232, you can opt the connect via the ISP/CONTROL Mini USB port on the front of the FRESCO, or alternately use the 3-pin Phoenix CONTROL connection on the back.
-
Page 10: Display Measurements
AC-FRESCO-CAP-4 THE BIGGEST CHALLENGE WITH CREATING A FRESCO MEASURE : VIDEO WALL IS MOUNTING THE PANELS! DISPLAY MEASUREMENTS: • Enter the MANUFACTURER and MODEL info. • Use ONLY Millimeters to take measurements (due to their added precision). • Take measurements of the VISIBLE WIDTH, HEIGHT and thicknesses of ALL FOUR BEZELS (TOP,BOTTOM, LEFT, RIGHT). -
Page 11: Output Resolution
AC-FRESCO-CAP-4 OUTPUT RESOLUTION: • Select the "OUTPUT RESOLUTION" from the drop-down menu. • OUTPUT RESOLUTION options: o 720P, 1080P, 4K 30HZ 4:4:4, 4K 60HZ 4:2:0, and 4K 60HZ 4:4:4 Click "GENERATE VIDEO WALL" button. VIDEO WALL DISPLAY MEASUREMENT GUIDE... - Page 12 AC-FRESCO-CAP-4 ADVANCED: AS BUILT DISPLAY PLACEMENT • This section represents the virtual wall where the displays are mounted. • The FRESCO software will assume that your have mounted the displays directly adjacent to each other with very little, or zero gaps separating the displays.
-
Page 13: Rs-232 And Tcp/Ip Commands
AC-FRESCO-CAP-4 RS-232 and TCP/IP Commands: • The AC-FRESCO-CAP-4 can be controlled using either communication method. • For TCP/IP control commands use Telnet Port 23. • For RS-232, use a null modem serial cable adapter and set the serial communications to: o 57600,n,8,1 (baud: 57600, no parity, 8 data bits and 1 stop bit) with no handshaking. -
Page 14: Rs-232 Wiring Diagram
AC-FRESCO-CAP-4 *NOTE: There are two ports for RS-232 control • LOOP-OUT: Use this port for additional cascaded AC-FRESCO-CAP-4 units • CONTROL: Use this port to send RS-232 to AC-FRESCO-CAP-4 RS-232 Wiring Diagram: Page 14... -
Page 15: Troubleshooting
AC-FRESCO-CAP-4 Troubleshooting • Verify Power - The LED on the front of the FRESCO should be lit up RED when power is applied. Check power supply connections to device and power • Verify Connections - Check all cables are properly connected •... -
Page 16: Maintenance
AC-FRESCO-CAP-4 Maintenance To ensure reliable operation of this product as well as protecting the safety of any person using or handling this device while powered, please observe the following instructions. • Use the power supplies provided. If an alternate supply is required, check voltage, polarity and that it has sufficient power to supply the device it is connected to. -
Page 17: Warranty
Warranty If your product does not work properly because of a defect in materials or workmanship, AVProEdge (referred to as “the warrantor”) will, for the length of the period indicated as below, (Parts/Labor (10) Years), which starts with the date of original purchase (“Limited Warranty period”), at its option either (a) repair your product with new or refurbished parts, or (b) replace it with a new or a refurbished product. - Page 18 AC-FRESCO-CAP-4 _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ Page 18...
- Page 19 AC-FRESCO-CAP-4 _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ Page 19...
- Page 20 AC-FRESCO-CAP-4 Thank you for choosing AVProEdge! Please contact us with any questions. We are happy to be of service! AVProEdge 2222 E 52nd St N ~ Sioux Falls, SD 57104 1-877-886-5112 ~ 605-274-6055 support@avproedge.com Page 20...
