Digital to Analog Audio Converter
Quick Start Guide

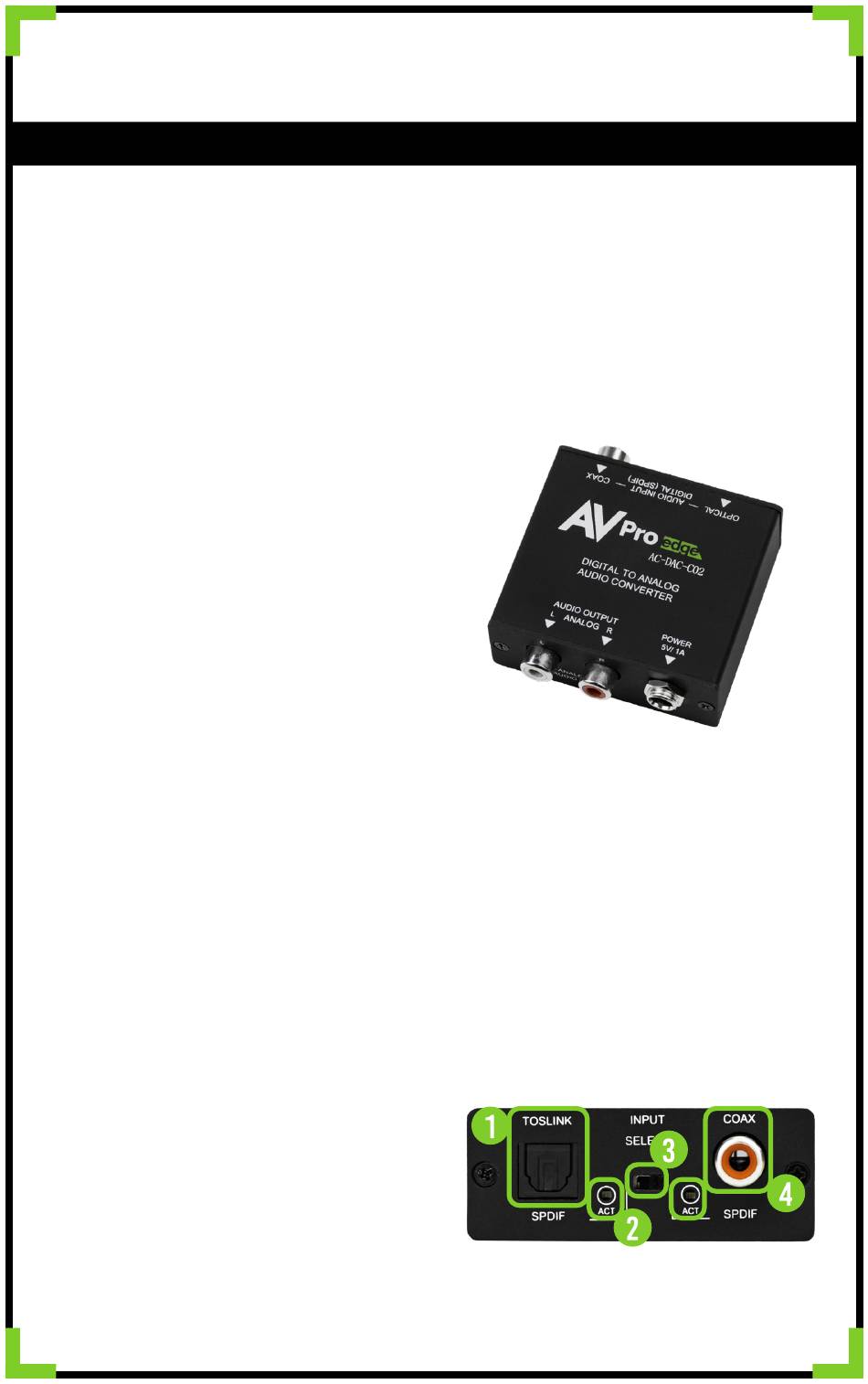

The AC-DAC-CO2 is the second iteration of the Digital to Analog converter available from
AVPro Edge. This DAC provides a new, industrial-style chassis with an improved locking
barrel plug for a secure installation. It can accept digital (L)PCM signals up to 96KHz 24Bit,
converting them to an analog 20-20,000Hz PCM signal.
This quick start guide will be
going through:
•
Installation
•
Product breakdown
•
Installation:
1. Connect the digital audio Input source to the desired input on the AC-DAC-CO2.
2. SET the Input Source switch to the desired input on the AC-DAC-CO2.
3. Connect the analog RCA output to the desired Audio Playback device.
4. Connect power to the AC-DAC-CO2.
Product Breakdown:
1. Toslink Input: Connect to the Optical
audio source
2. Optical and Coax LEDs: These Leds will
illuminate according to which input is
Currently selected
3. Coax/Optical Switch: Select which
digital audio input is active and will be
converted to analog stereo (L/R) audio
4. Coaxial INPUT: Connect to the Coaxial digital audio source
AC-DAC-CO2
Input side
