A C - F R E S C O - C A P - 4 v i d e o wa l l p r o c e s s o r

Quick Start Guide

the Fresco 4 enables you to process 4K video throughout your video wall. AVPRo

EDge included robust scaling features inside this processor that allows you to not

only input 18Gbps 4K60 with HDR signals, but output 4k 444 to each display.

This Quickstart Guide Will be going over:

- Installation

Installation

- hang the panels/displays

- plug in power to the fresco

- Connect the source to the fresco HDMI input

- output 4 hmdi cables to desired displays

- Launch the Fresco PC Software and connect to the Fresco Processor

- input measurements and select output resolution then hit generate video wall!

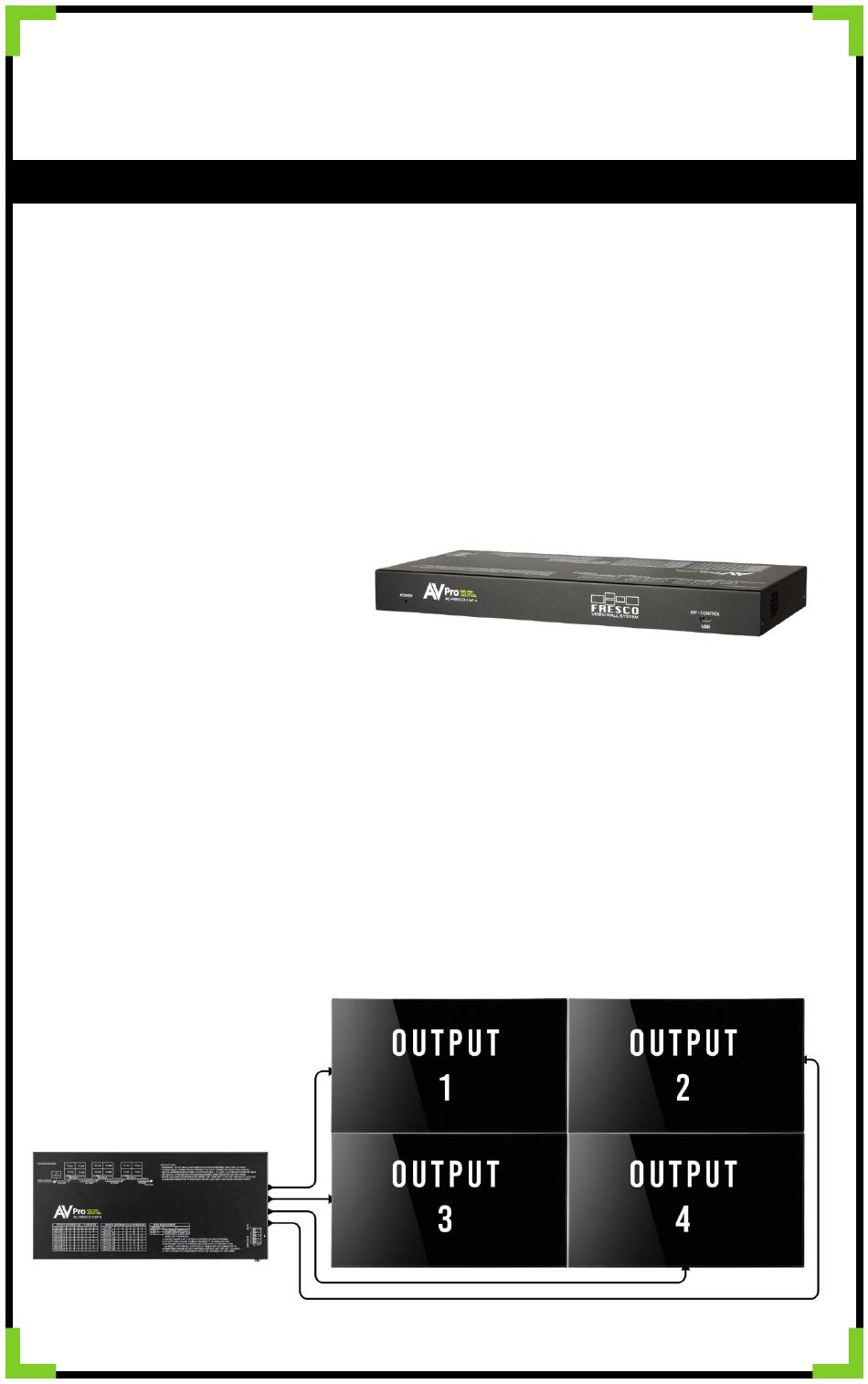

Fresco 4 display layout example:

Table of Contents

Do you have a question about the AC-FRESCO-CAP-4 and is the answer not in the manual?

Page 1 Fresco 4 Video Wall A C - F R E S C O - C A P - 4 v i d e o wa l l p r o c e s s o r Quick Start Guide the Fresco 4 enables you to process 4K video throughout your video wall. AVPRo EDge included robust scaling features inside this processor that allows you to not only input 18Gbps 4K60 with HDR signals, but output 4k 444 to each display.
Page 2 connect/Control Connect: Network/Lan •Click on box above NETWORK/LAN •Default IP = 192.168.001.239o (Changing the IP address requires using the web interface or sending direct control commands via an RS-232 Connection and Terminal app. #baud rate 57,600) •Click the “CONNECT TO FRESCO” button underneath NETWORK/LAN settings Connect: USB/RS-232 •Click on the box above USB/RS-232.
Page 3 - Verify all connected devices are capable of the signal you are sending - Verify that the HDMI cables you are using are certified for 4K signals Have a question or need assistance? Don’t hesitate to contact us! SUPPORT: +1 605-274-6055 USA TOLL FREE: 877-886-5112 EMAIL: support@avproedge.com...
