Page 1: User Manual

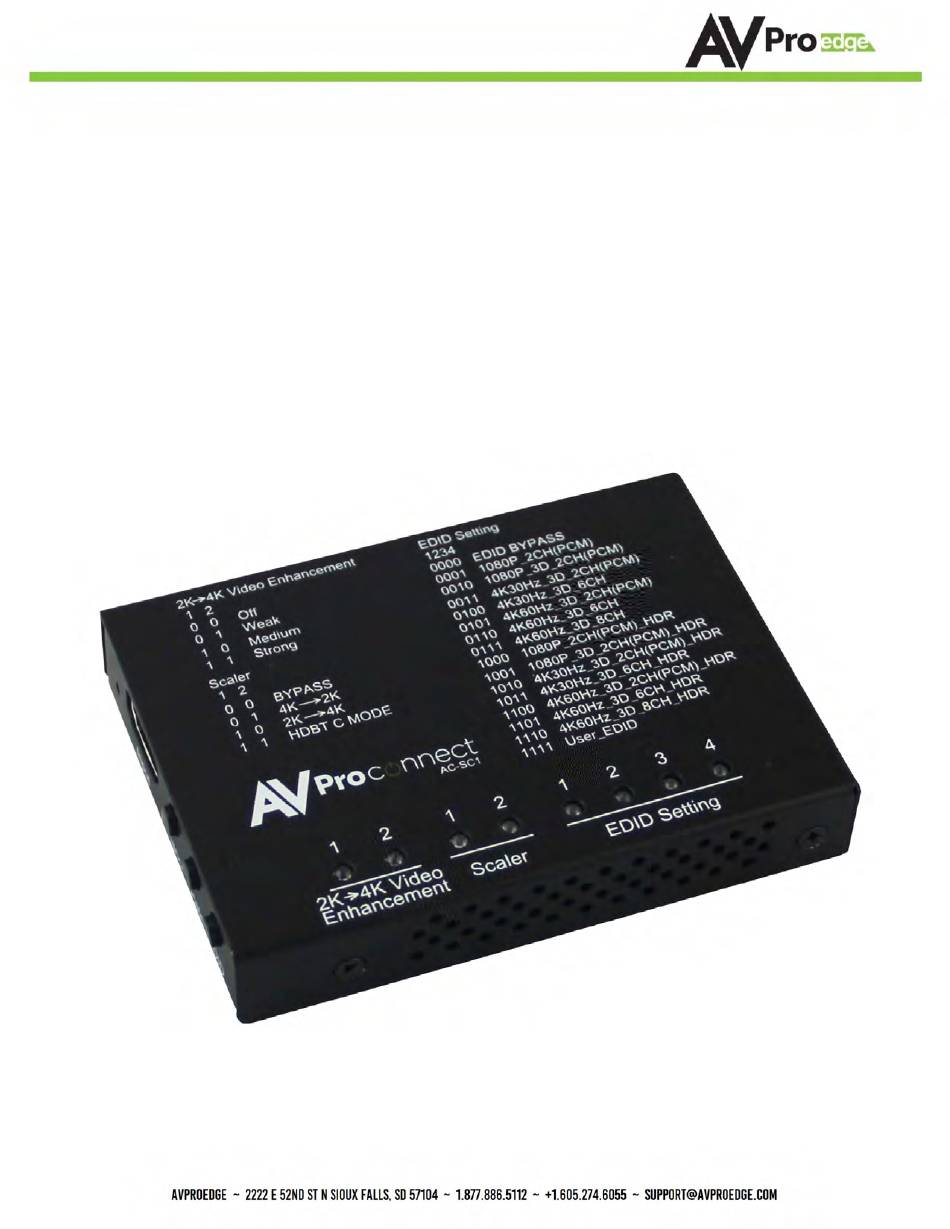

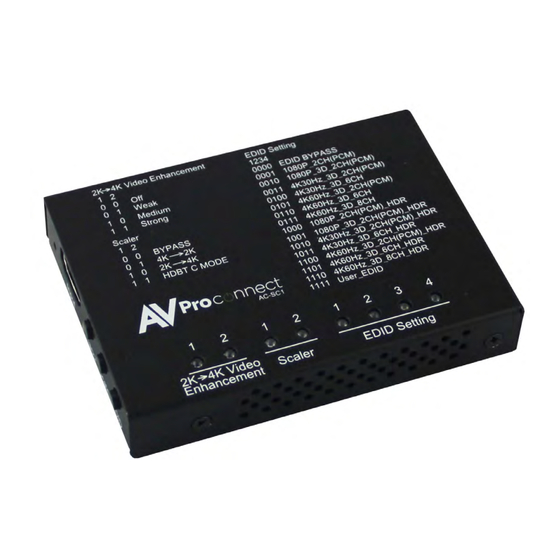

AC-SC1-AUHD USER MANUAL AC-SC1-AUHD The Ultimate Toolbox: 18Gbps Up/Down Scaler, EDID Manager, Audio De-Embedder & Image Enhancer Page 1... -
Page 2: Typical Applications
AC-SC1-AUHD The AVProEdge's AC-SC1-AUHD in the ideal solution for integrators that are needing to distribute a signal to a variety of displays and keep an optimal picture. Integrators will enjoy its versatility of not only being able to control up/down scaling but handling EDID issues (including 4K HDR EDID's), image enhancement, and being able to access audio from the stream. - Page 3 AC-SC1-AUHD Page 3...
- Page 4 AC-SC1-AUHD Page 4...
-
Page 5: Powering The Device
Powering the device : The easiest way to use the AC-SC1-AUHD is to simply plug the device in to power using one of 2 methods: 1. Use the supplied 5V power adaptor and plug it in to a power outlet using the Mini USB cable. - Page 6 AC-SC1-AUHD Video Enhancement: This feature enables incredible video enhancement when upscaling from 1080P to 4K. The enhancement is designed take full advantage of the 4K Pixel Space and maximize the end user experience while using legacy (1080P) sources on new displays/projectors.
-
Page 7: Edid Settings
AC-SC1-AUHD EDID Settings: With EDID Settings you can manage the sources devices and force a certain output. This is especially important on newer sources that rely on EDID communications in implement high bandwidth and HDR signals. • 1080 EDIDs – Legacy EDIDs, these will ask the sources (especially high bandwidth ones) to output 1080 to function in 1080 Systems. - Page 8 There is also a simple to use software utility for the AC-SC1-AUHD. To use this software simply: 1. Plug the Micro USB cord in from the PC to the AC-SC1-AUHD and this will provide power and install a COM Port.
- Page 9 AC-SC1-AUHD EDID Management Screen: Allows you to set the EDID. Page 9...
- Page 10 Micro USB Port for firmware and control. Command list below. For CTRL, use a Micro to USB cable and set the serial communications to: 57600,n,8,1 (baud: 57600, no parity, 8 data bits and 1 stop bit) with no handshaking. AC-SC1-AUHD ASCII Command List: Page 10...
- Page 11 AC-SC1-AUHD Applications: Page 11...
- Page 12 AC-SC1-AUHD Page 12...
-
Page 13: Troubleshooting
AC-SC1-AUHD Troubleshooting Verify Power - When power is applied all lights on the top of the device will flash. You • can also press any of the 3 buttons on the side to change settings, the corresponding lights should change if the unit is powered up. -
Page 14: Maintenance
AC-SC1-AUHD Maintenance To ensure reliable operation of this product as well as protecting the safety of any person using or handling this device while powered, please observe the following instructions. • Use the power supplies provided. If an alternate supply is required, check voltage, polarity and that it has sufficient power to supply the device it is connected to. -
Page 15: Warranty
If your product does not work properly because of a defect in materials or workmanship, AVProEdge (referred to as “the warrantor”) will, for the length of the period indicated as below, (Parts/Labor (10) Years), which starts with the date of original purchase (“Limited Warranty period”), at its option either (a) repair your... - Page 16 AC-SC1-AUHD Page 16...
- Page 17 AC-SC1-AUHD Page 17...
- Page 18 AC-SC1-AUHD Thank you for choosing AVProEdge! Please contact us with any questions. We are happy to be of service! A V P r o E d g e 2 2 2 2 E 5 2 n d S t N ~ S i o u x F a l l s , S D 5 7 1 0 4 1 - 8 7 7 - 8 8 6 - 5 1 1 2 ~ 6 0 5 - 2 7 4 - 6 0 5 5 s u p p o r t @ a v p r o e d g e .
