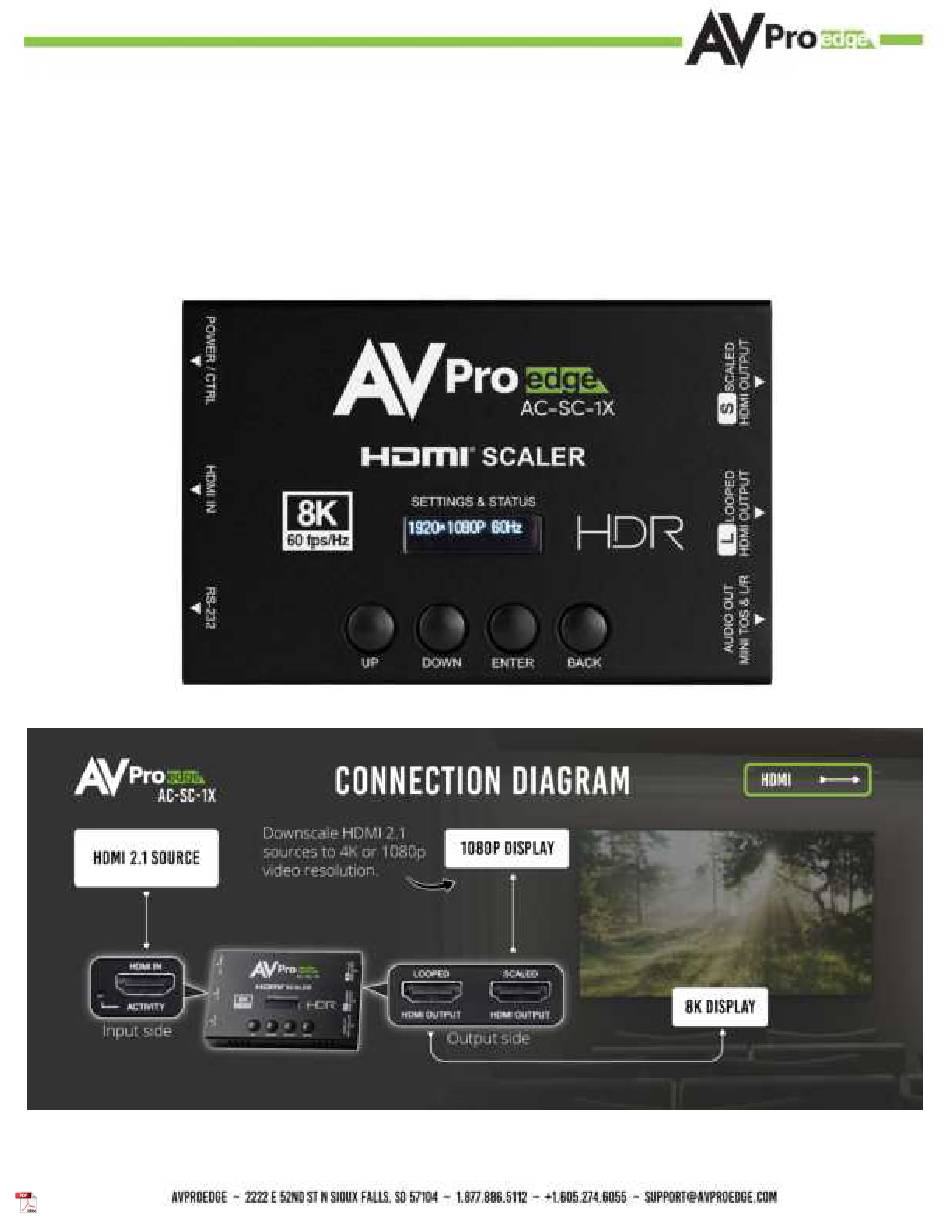

- Page 1 AC-SC-1X FRL5 40Gbps 8K60 4:2:0/4K120 4:4:4 Down-scaler User Manual...
-
Page 2: Table Of Contents
F E A T U R E S ..................3 The AC-SC-1X is a single input, 2 output HDMI2.1a Downscaling device capable of supporting VRR, HDCP W H A T S I N T H E B O X . -
Page 3: S P E C I F I C A T I O N S
Specifications Device Overview Front Screen Display/Settings & Status - Displays the current Resolution/Timing of the HDMI Input. Use in conjunction with the four Settings buttons (UP, DOWN, ENTER, and BACK) to navigate the available settings menus and change 1-EDID, 2-Scaler settings, and 3-ExAudio (enable/disable the extracted audio port). -
Page 4: Device Overview Cont
Device Overview Cont. EDID Management - Front Panel USB-C POWER/CTRL - This USB-C port provides power to scaler. Power using a USB port on the sync, or There are 12 built in canned EDIDs along with 3 USER EDID slots and a EDID Bypass. You can select from use the provided wall power adapter. -
Page 5: Out2 Scaler - Front Panel
OUT2 Scaler - Front Panel EXTERNAL AUDIO - Front Panel There are 12 built in canned EDIDs along with 3 USER EDID slots and a EDID Bypass. You can select from The extracted audio port can be enabled or disabled (enabled by default). To change the settings any of these canned EDIDs or copy from one of the HDMI Outputs (saves to USER1_EDID). -
Page 6: R S - 2 3 2 C O N T R O
RS-232 Control RS-232 Command List RS232 Control (through 3 Pin Terminal Block or USB C). To control via RS232, the 3 Pin Terminal Block or a USB data cable with a USB C connector can be used. · Baudrate: 57600 ·... -
Page 7: T R O U B L E S H O O T I N
HDMI 2.1 Bandwidth Innovation Chart Troubleshooting 1. Verify Power – The Monitor Screen on the front of the distribution amp should be present when power is supplied. The Monitor screen has an automatic timeout to reduce screen burn, select any button to awake diagnostics screen. -
Page 8: M A I N T E N A N C
Maintenance To ensure reliable operation of this product as well as protecting the safety of any person using or handling this device while powered, please observe the following instructions. · Use the power supplies provided. If an alternate supply is required, check voltage, polarity and that it has sufficient power to supply the device it is connected to. -
Page 9: S U P P O R
Dealers, Re-sellers, and Installers can request an RMA AVPro Edge Tech Support Rep or their Sales Engineer. Or you may email support@avproedge.com or fill out the general contact form at www.avproedge.com AVPro Edge has developed a warranty that anyone can get behind. We really wanted to take all the “red tape”... - Page 10 legal theory to the maximum extent permitted by law. Taxes, Duties, VAT, and freight forwarding service charges are not covered or paid for by this warranty. Obsolescence or incompatibility with newly invented technologies (after manufacture of product) is not covered by this warranty. Obsolescence is defined as: “Peripherals are rendered obsolete when current technology does not support product repair or re- manufacture.
- Page 11 Thank you for choosing AVProEdge! Please contact us with any questions, we are happily at your service! AVProEdge 2222 E 52nd St N ~ Sioux Falls, SD 57104 1-877-886-5112 ~ 605-274-6055 support@avproedge.com...
