56104403 ONBOARD CHARGER KIT-EU

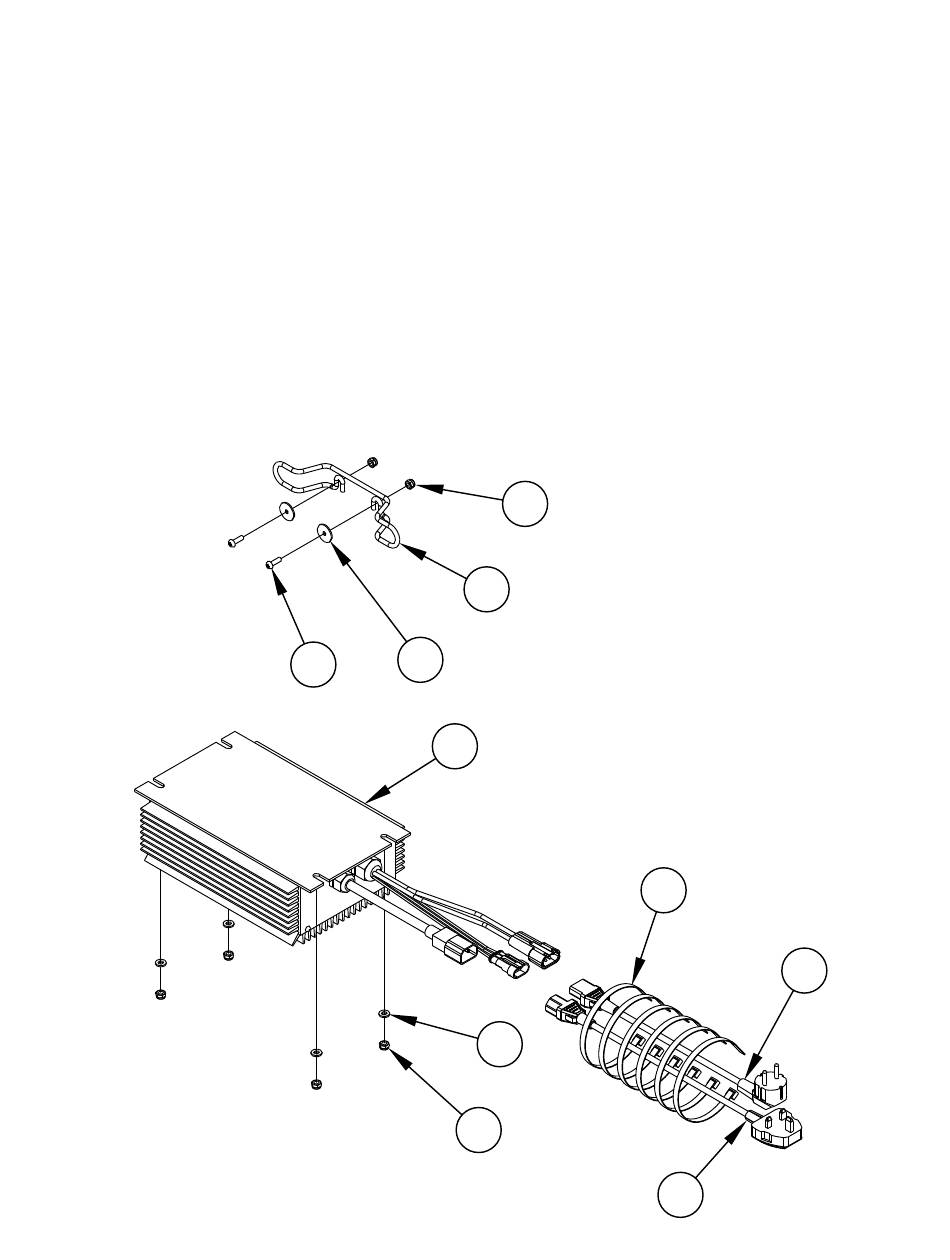

CONTENTS OF KIT
ITEM
PART NO.
[ ]
56090145
1
L08603744
2#
1458280000
3
9095149000
4
56114378
5
56477613
6#
56383388
7#
56383389
8
L08603689
9
33005604
10
33005603
[ ] = Not Shown
#
= Revised or new since last update
1
SC1500 Model: 56104002
QTY
DESCRIPTION
1
Instruction Sheet
2
Screw Pan Hd M5 X 16 SS
2
Washer Plain M5X15 SS ISO7093
1
Cable Support
1
Battery Charger 24V 25A
6
Tie, Cable
1
Cord-Charger Europe
1
Cord-Charger UK
4
Flat Washer M6 X 18 SS
4
Nut Hex Nyl Loc Thin M6
2
Self-Locking Nut M5
10
3
2
4
8
9
(page 1 of 7)
5
7
8/2012 revised 8/2018 Form No. 56090145 REV H
