WARNING!
Use extreme caution when working with batteries. Sulfuric acid in batteries can cause severe injury if allowed to contact the skin or eyes.
Explosive hydrogen gas is vented from the batteries through openings in the battery caps. This gas can be ignited by any electrical arc,
spark or fl ame. Do not install any lead-acid battery in a sealed container or enclosure. Hydrogen gas from overcharging must be allowed
to escape.
WARNING!
Do not fi ll the batteries before charging.
Charge batteries in a well-ventilated area.
Do not smoke while servicing the batteries.
When Servicing Batteries...
*
Remove all jewelry
*
Do not smoke
*
Wear safety glasses, rubber gloves and a rubber apron
*
Work in a well-ventilated area
*
Do not allow tools to touch more than one battery terminal at a time
*
ALWAYS disconnect the negative (ground) cable fi rst when replacing batteries to prevent sparks.
*
ALWAYS connect the negative cable last when installing batteries.
© 2014 Nilfi sk-Advance, Inc.
56422156 ONBOARD CHARGER KIT
56422186 AGM ONBOARD CHARGER KIT
Advolution™ Models: ALL
UHR 70-1700 Models: ALL

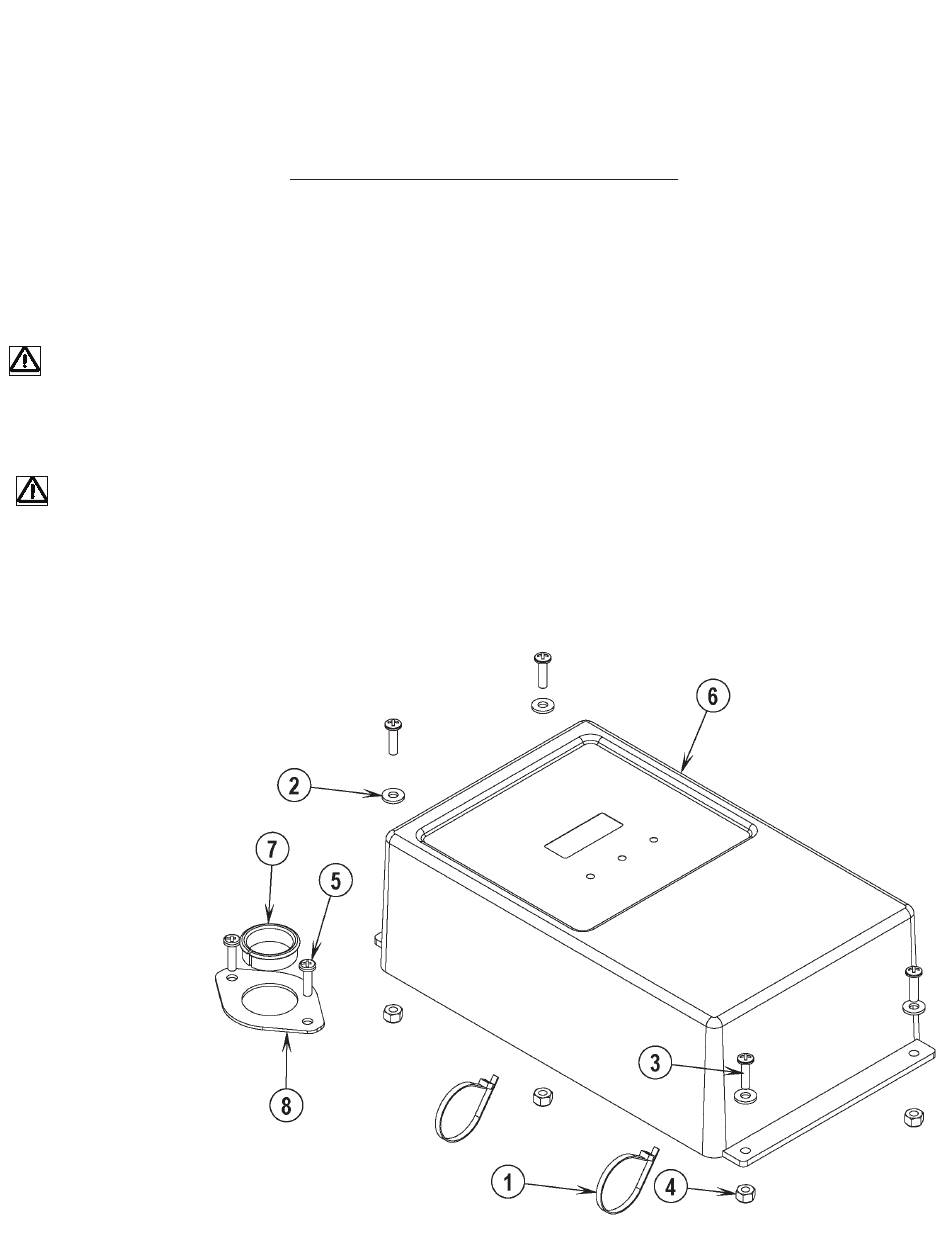

CONTENTS OF KIT
ITEM
PART NO.
56040888
1
56478246
2
56001954
3
56002192
4
56002768
5
56009005
6
56422145
7
56422159
8
56422169
QTY
DESCRIPTION
1
Instruction Sheet
2
Cable Tie
4
Wsh, Flt SAE #10
4
Scr, Pan Phil 10-24 x .75
4
Nut, Hex Nyl Loc 10-24
2
Scr, Pan Phil SS Type B 10-16 x .75
1
Charger, Battery Onboard
1
Bushing, Open/Closed 1.25
1
Cord Holder
page 1 of 6
3/06 revised 8/14 Form No. 56040888 REV C
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Nilfisk-Advance 56422156
Summary of Contents for Nilfisk-Advance 56422156
- Page 1 56422156 ONBOARD CHARGER KIT 56422186 AGM ONBOARD CHARGER KIT Advolution™ Models: ALL UHR 70-1700 Models: ALL CONTENTS OF KIT ITEM PART NO. DESCRIPTION 56040888 Instruction Sheet 56478246 Cable Tie 56001954 Wsh, Flt SAE #10 56002192 Scr, Pan Phil 10-24 x .75...
-
Page 2: Installation Instructions
INSTALLATION INSTRUCTIONS WARNING! DISCONNECT BATTERIES BEFORE SERVICING. Check the setting of the dip switches on your charger. See the chart below for the proper setting. Note: Only if you are using the charger with AGM batteries will you need to move the position of the switches to match that shown below for AGM batteries. If you are not using AGM batteries leave the switches in their default positions. - Page 3 See Figure 2. Route the Battery Charger Power Cord (A) up through the hole in the rear left corner of the machine as shown. NOTE: A long piece if string or twine works well for this by dangling it down through the hole, tying it around the power cord plug and then pulling it back up. Install the Cord Holder (8) using the Screws (5) and then the Bushing (7).
- Page 4 See Figure 3. Remove the (4) Screws (A) and remove the Front Panel (B) from the machine. FIGURE 3 page 4 of 6 3/06 revised 8/14 Form No. 56040888 REV C © 2014 Nilfi sk-Advance, Inc.
- Page 5 See Figure 4. Route the remaining (3) wires from the charger up and over the chassis as shown. Then route the (3) wires along the chassis and up through the opening in the bottom of the body as shown. WARNING! Improper routing/installation can cause damage to wire insulation and lead to short circuits causing damage to the charger, batteries and/ or machine.
- Page 6 See Figure 5. Connect the BLK Cable (A) to the Electrical Mount (B) on the right. Connect the RED Cable (C) to the Electrical Mount (D) in the middle. In the general area of the Speed Controller (E) you will fi nd a single violet wire connected to (3) violet wires via terminal tab connectors. Pull these connectors apart.
