LCD Interface

When the receiver is turned on, LCD will show the
model number, firmware version and serial number
during the boot sequence. When the sequence is com-
pleted, the Main Window will display the status and
activity of the installed receivers.
Setup and monitoring can be done directly on the front
panel keypad interface. It is worthwhile to become fa-
miliar with the front panel controls even if you only use
it for monitoring and to check settings.

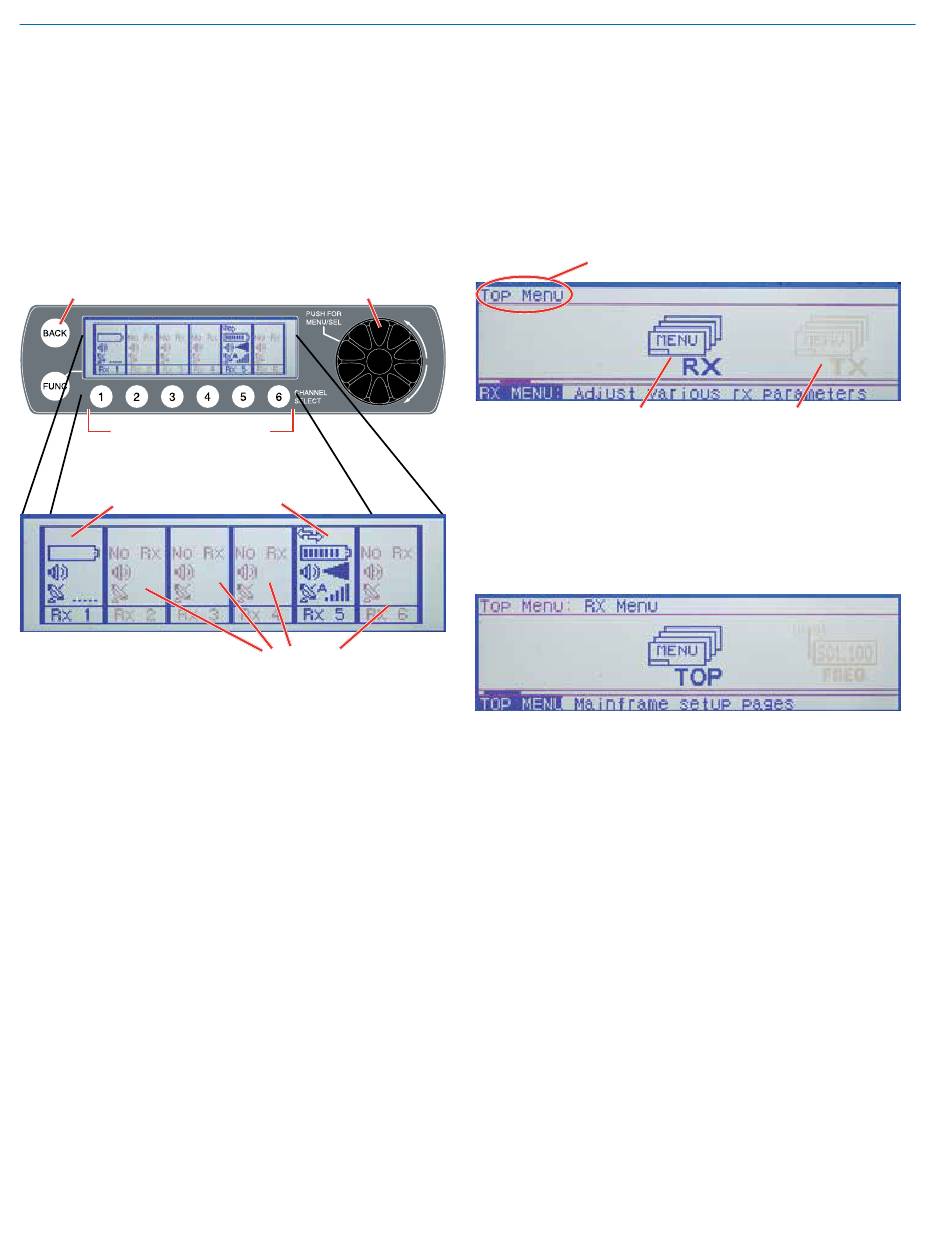

BACK button
Receiver select buttons
Receiver
installed,
no Tx active
The menu structure is comprehensive but easy to
navigate. Three menus provide easy access to setup
screens and monitoring.

Top Menu

These are the system level settings that are common
to all channels.

Rx Menu

Each receiver module has unique settings

Tx Menu

The settings for transmitters with IR ports can be
configured in the receiver and then transferred to the
transmitters via the IR ports.
10
Rotary encoder
Receiver
installed,
Tx active
No receivers installed

Navigating the Menus

Three menus are provided for complete system setup:
• Top Menu for overall system settings
• RX Menu for setup of the receiver modules
• TX Menu for setup of the transmitters
Press the rotary encoder to enter the menu system.
The first screen that appears is the Top Menu with
links to the RX (receiver) and TX (transmitter) menus.
Selected menu is shown at top left
Link to RX Menu
Turn the rotary encoder to navigate through the avail-
able items. The selected item appears highlighted in
the center of the LCD. Press the rotary encoder to en-
ter the setup screen for the selected item, or navigate
to another menu.
The first item that appears in the RX and TX menus is
a link back to the top menu.
Refer to the Menu Map on the following pages for a
listing and descriptions of all menu items.
Link to TX Menu
