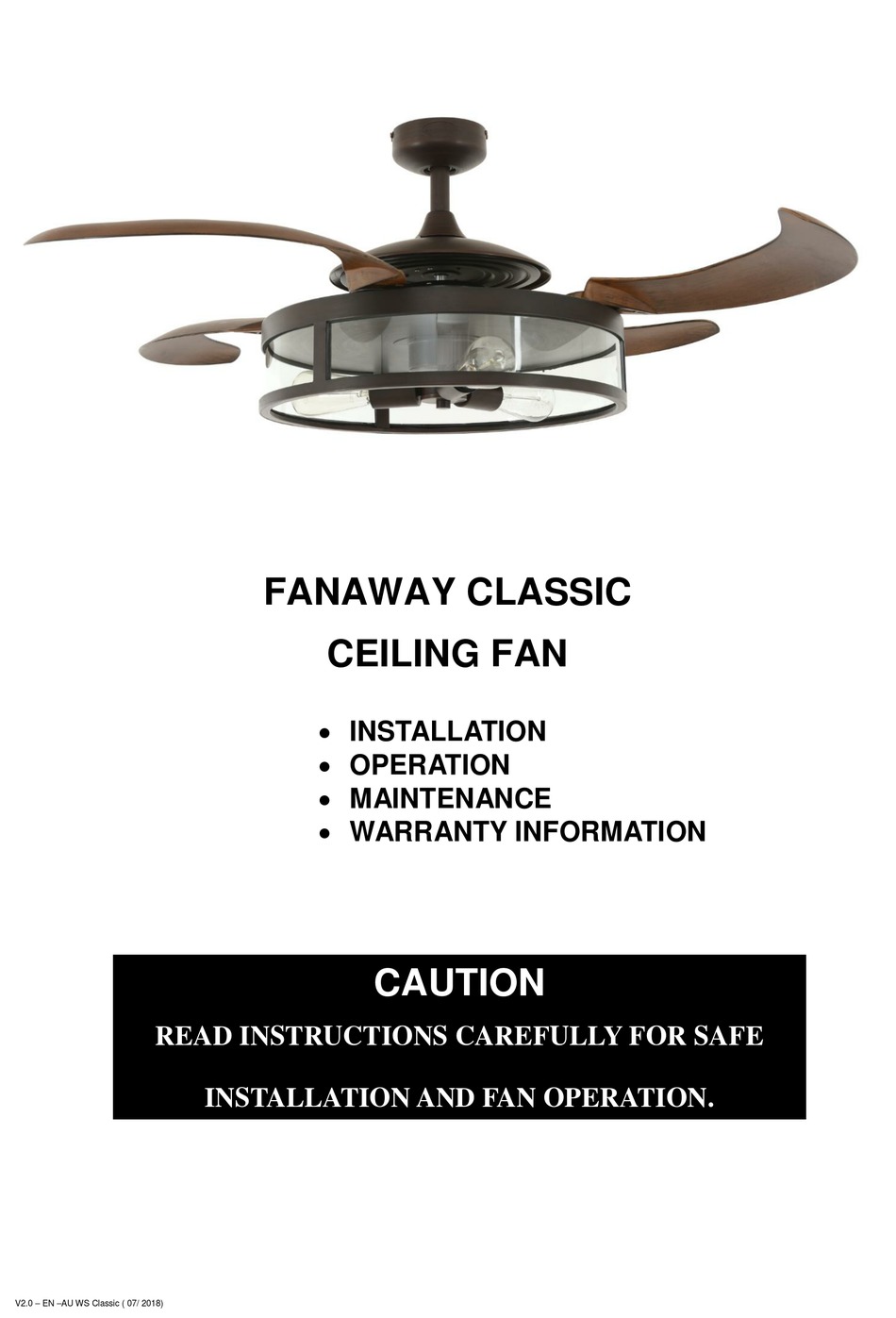

Page 1: Ceiling Fan

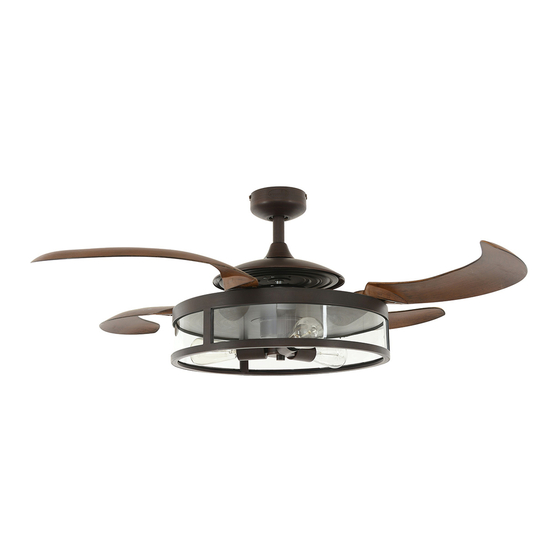

FANAWAY CLASSIC CEILING FAN INSTALLATION OPERATION MAINTENANCE WARRANTY INFORMATION CAUTION READ INSTRUCTIONS CAREFULLY FOR SAFE INSTALLATION AND FAN OPERATION. V2.0 – EN –AU WS Classic ( 07/ 2018) -
Page 2: Safety Precautions
Fanaway Classic Installation Instructions THANK YOU FOR PURCHASING Thank you for purchasing this quality Fanaway product. To ensure correct function and safety, please read and keep all instructions before using the product. SAFETY PRECAUTIONS In Europe: This appliance can be used by children aged from 8 years and above and persons with... - Page 3 Fanaway Classic Installation Instructions Example: If a fan is connected to a circuit that can be isolated via an all-pole safety switch at the switchboard, then this is considered to be an all-pole disconnection to the ceiling fan electrical circuit, meeting the requirements of clause 7.12.2 of AS/NZS 60335.1.
-
Page 4: Before Installation
Fanaway Classic Installation Instructions BEFORE INSTALLATION Unpack your ceiling fan and carefully identify the parts. Please refer to Fig 1. 4 | P a g e... - Page 5 Fanaway Classic Installation Instructions Fig. 1 5 | P a g e...
-
Page 6: Installing The Mounting Bracket
Fanaway Classic Installation Instructions Mounting bracket x 1 Retraction mechanism x 1 Canopy screws x 4 Lamp base x 1 Canopy x 1 Lamp shade x 1 Down rod x 1 Light kit x 1 Bolt and pin cover x 1... -
Page 7: Installing The Fan
Fanaway Classic Installation Instructions INSTALLING THE FAN Installing the down rod 1) Feed the down rod (5) through the canopy (4) and the bolt and pin cover (6). 2) Remove the ball joint (2) by loosening the set screw (3), insert the motor wires through the down rod then secure the ball joint back to the down rod. -
Page 8: Fan Installation
Fanaway Classic Installation Instructions FAN INSTALLATION Light kit installation 1. Loosen the screw (1) from the lamp shade bracket (3). Align the two slot screws (2) with the keyhole slots of the lamp shade (4). Fig.6 2. Turn the lamp shade counterclockwise until the slot screws are firmly at the end of the slots. -
Page 9: Electrical Wiring Diagram
Fanaway Classic Installation Instructions ELECTRICAL WIRING DIAGRAM WARNING: FOR YOUR SAFETY ALL ELECTRICAL CONNECTIONS MUST BE UNDERTAKEN BY A LICENSED ELECTRICIAN. NOTE: AN ADDITIONAL ALL POLE DISCONNECTION MUST BE INCORPORATED IN THE FIXED WIRING IN ACCORDANCE WITH THE WIRING RULES. -
Page 10: Finishing The Installation
Fanaway Classic Installation Instructions 2/ Remote with plugs Fig. 11 FINISHING THE INSTALLATION After completing the electrical connection at the mounting bracket terminal block, connect the ceiling fan wiring via the quick connector plug. Cover the mounting bracket with the canopy. Ensure all electrical wiring is tucked inside the canopy and that the wires are not damaged during this step. -
Page 11: Using Your Ceiling Fan
Fanaway Classic Installation Instructions USING YOUR CEILING FAN FAN WALL CONTROL Turn on the power and check the operation of the fan. • OFF Position – Fan Off • 3rd Position – Low fan speed • 2nd Position – Medium fan speed •... -
Page 12: After Installation
Fanaway Classic Installation Instructions AFTER INSTALLATION WOBBLE: NOTE: ceiling fans tend to move during operation due to the fact that they are mounted on a rubber grommet. If the fan was mounted rigidly to the ceiling it would cause excessive vibration. Movement of a few centimetres is quite acceptable and DOES NOT suggest any problem. - Page 13 These products are covered by a Warranty in addition to all rights available to you by statute. The Warranty is for a period of twenty four (24) months from the date of purchase, subject to the following conditions. Fanaway undertakes, at its option, to repair or replace, free of charge, each product or part thereof subject to the following conditions.
- Page 14 Fanaway Classic Installation Instructions for Fanaway on 1800 602 243 between 9AM and 5PM (E.S.T) Monday to Friday. Ensure you have the following details on hand. If you are unable to establish the date of purchase, or the fault is not covered by this Warranty, or if the product is found to be in working order, you will be required to bear all service call charges.
