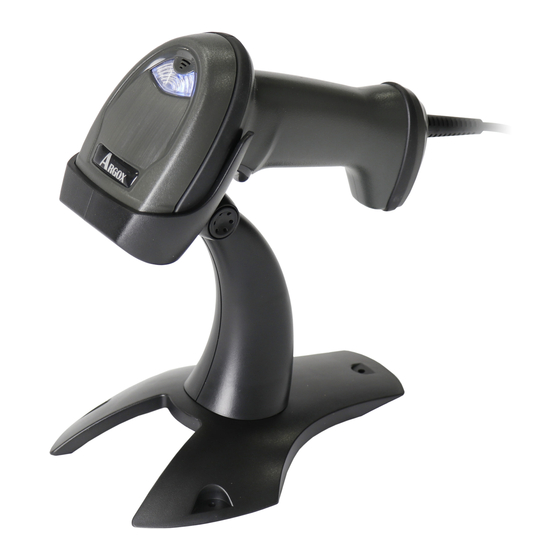

Argox AS-8060 User Manual
  1. Manuals
  2. Brands
  3. Argox Manuals
  4. Barcode Reader
  5. AS-8060
  6. User manual

Argox AS-8060 User Manual

Hide thumbs Also See for AS-8060:
Table of Contents

Advertisement

Quick Links

http://www.argox.com
service@argox.com
Barcode Scanner
User Manual
Version: 1.1
Date: Oct. 18, 2019
AS-8060

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AS-8060 and is the answer not in the manual?

Questions and answers

Related Manuals for Argox AS-8060

Summary of Contents for Argox AS-8060

  • Page 1 AS-8060 Barcode Scanner User Manual http://www.argox.com Version: 1.1 service@argox.com Date: Oct. 18, 2019...

  • Page 2: Regulatory Compliance

    AS-8060 User Guide Regulatory Compliance FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 3 AS-8060 User Guide Note: All brands and trademarks are the property of their respective owners. Note: The specifications contained herein are subject to change without notice. 警告使用者: 這是甲類的資訊產品，在居住的環境中使用時，可 能會造成射頻干擾，在這種情況下，使用者會被要 求採取某些適當的對策。...

  • Page 4: Table Of Contents

    AS-8060 User Guide Contents Introduction ............1 Unpacking ............... 3 Get started ............... 4 Installation ............4 How to scan ............5 Controls and settings ..........6 Version information setting code ......6 Interface mode setting code ......... 7 Scan mode setting code ........8 Sound setting code ..........

  • Page 5: Introduction

    AS-8060 User Guide Introduction Your AS-8060 is a 1D CCD scanner that has been configured at the factory with default settings. Since many host systems have unique formats and protocol requirements, Argox provides a wide range of configurable features that may be selected using this bar code based configuration tool.
  • Page 6 AS-8060 User Guide Application Field:  Jewelry Tag  Manufacturing  Transportation & Logistics  Healthcare Feature:  Rich to make daily work simple and easy  2500 pixels CCD image sensor  Scan Speed≧270 times/sec  Max. reading resolution: 3mil (0.762mm) ...

  • Page 7: Unpacking

    If you discover any damage, contact the shipping company and file a claim. Argox is not responsible for any damage incurred during shipping. Save all package materials for the shipping company to inspect.

  • Page 8: Get Started

    AS-8060 User Guide Get started This chapter provides information about how to install, connect and use your scanner to do your work. Installation This section describes how to set up your scanner. Set up your scanner 1. Plug the RJ45 connector into your scanner’s RJ45 port, until you hear a...

  • Page 9: How To Scan

    AS-8060 User Guide How to scan AS-8060 emits a light bar when it is scanning. To scan a barcode, make sure the aiming beam crosses every bar and space of the barcode. This bar needs to cross the bar code...

  • Page 10: Controls And Settings

    AS-8060 User Guide Controls and settings Customize your scanner to work efficiently. AS-8060 offers many features to match your preferences. This chapter provides information about how to change controls and settings of your scanner. Version information setting code Version (custom)

  • Page 11: Interface Mode Setting Code

    USB port and enables bidirectional communication between your computer and this scanner. To download the USB virtual COM port driver of AS-8060 scanner, go to the Argox global website (http://www.argox.com/). After downloading the driver, start to install it. When you finish installing the driver, it is suggested to restart your computer.

  • Page 12: Scan Mode Setting Code

    AS-8060 User Guide Scan mode setting code Trigger mode (default) 013300 Continuous scan mode 013304 Presentation mode 02311 Key delay 013302 Single not triggered 013301 Key delay not triggered 013303 Auto flashing 013305 Sound setting code Sound on (default) 014201...

  • Page 13: Character Delete / Insert / Replacement Setting

    AS-8060 User Guide Buzzer frequency 2048 0145800 High volume sound 014300 Low volume sound 014301 Buzzer frequency 2731 0145AAA Character delete / insert / replacement setting Code ID off (default) 01400 Code ID on 01401 Rear code ID on 01402...
  • Page 14 AS-8060 User Guide Display code rear character (default) 0203 Hide code rear character n (“n” indicates a blank key.) 0202[SP] Display characters inside code (default) 0205- Hide – inside code 0204- Disable A replace 0 in code (default) 020600 Enable A replace 0 in code...
  • Page 15 AS-8060 User Guide Hide front 5 characters 023405 Display middle characters (default) 023900 Hide 5 middle characters 023905 Forward start from 4th character 024004 FUNC1 replace with 1 0160049 FUNC2 replace with 2 0161050 FUNC3 replace with 3 0162051 FUNC4 replace with 4...

  • Page 16: Serial Port Setting

    AS-8060 User Guide Serial port setting Baud rate 600bps 000701 Baud rate 1200bps 000702 Baud rate 2400bps 000703 Baud rate 4800bps 000704 Baud rate 9600bps (default) 000705 Baud rate 19200bps 000706 Baud rate 38400bps 000707 Baud rate 57600bps 000708 Baud rate 115200bps...
  • Page 17 AS-8060 User Guide Serial port: XON/OFF 001201 Serial port: RTS/CTS 001202 Serial port handshake timeout 2s 0013020 Serial port handshake timeout 5s 0013050 Serial port 8-bit data 00080 Serial port 7-bit data 00081 Serial port 1 stop bit 00090 Serial port 2 stop bits...

  • Page 18: Normal Function Setting Code

    AS-8060 User Guide Serial port even parity check 001002 Normal function setting code Enable upload setting barcodes 02501 Disable upload setting barcodes (default) 02500 FUNC cast light upon cancel (default) 01640 Disable change 02510 All uppercase 02511 All lowercase 02512...
  • Page 19 AS-8060 User Guide Disable command beep 01410 Forward image identify (default) 00161 Reverse image identify 00160 Fastest transmit rate 001500 Medium transmit rate (default) 001502 Lower transmit rate 001504 Lowest transmit rate 001506...

  • Page 20: Prefix / Suffix Setting

    AS-8060 User Guide Prefix / suffix setting 0212@\r CR+LF 0213@\r\n All barcodes (rear) add ETX 0211@[ETX] All barcodes (front) add F2 02160081 All barcodes (rear) add F2 02110081 Cancel all barcodes (rear) format character 0210@ Add STX before barcodes 0217@[STX]...

  • Page 21: Multi-Language Setting Code

    AS-8060 User Guide Exit add pre/suffix Mode 02242 Clear all prefix 02220 Clear all suffix 02200 Enter hidden front character mode 02340 Enter hidden rear character mode 02341 Enter hidden middle character mode 02342 Enter the hidden Nth character mode...
  • Page 22 AS-8060 User Guide Dutch (Netherlands) 0005002 Spain (Spanish) 0005003 Argentina (Latin American) 0005004 Brazil (Portuguese) 0005005 Denmark (Danish) 0005006 UK (English) 0005007 Italy (Italian142) 0005008 France (French) 0005009 German (Germany) 0005010 Norway (Northern Sami) 0005011...
  • Page 23 AS-8060 User Guide Sweden, Finland (Swedish, Finnish) 0005012 Slovak (Slovakia) 0005013 Portuguesa (Portuguese) 0005014 Czech Republic (Czech) 0005015 Belgium (Dutch) 0005016 Turkey-F 0005017 Turkey-Q 0005018 Poland (Polish214) 0005019 Switzerland (German, French) 0005020...

  • Page 24: Character Table

    AS-8060 User Guide Croatia (Srb-Crt) 0005021 Hungary (Hungarian) 0005022 Japan (Japanese) 0005023 Russia (Russian) 0005024 Arabic (Egypt) 0005025 Character table (For adding pre/suffix) 1001 1003 1002 1004 1006...
  • Page 25 AS-8060 User Guide 1005 1007 1009 1008 Backspace 1010 1012 Line 1011 1013 1015 Enter 1014 1016 1018 1017...
  • Page 26 AS-8060 User Guide 1019 1021 1020 1022 1024 1023 1025 1027 1026 1028 1030 1029 1031 1033...
  • Page 27 AS-8060 User Guide 1032 SPACE 1034 1036 “ 1035 1037 1039 ‘ 1038 & 1040 1042 1041 1043 1045 1044...
  • Page 28 AS-8060 User Guide 1046 1048 Note: Used to set address/prefix/suffix 1047 1049 1051 Note: Note: Used to set address/prefix/suffix Used to set address/prefix/suffix 1050 Note: Used to set address/prefix/suffix 1052 1054 Note: Note: Used to set address/prefix/suffix Used to set address/prefix/suffix...
  • Page 29 AS-8060 User Guide 1056 Note: Used to set address/prefix/suffix 1058 1060 < 1059 1061 1063 1062 > 1064 1066 1065 1067 1069 1068...
  • Page 30 AS-8060 User Guide 1070 1072 1071 1073 1075 1074 1076 1078 1077 1079 1081 1080 1082 1084...
  • Page 31 AS-8060 User Guide 1083 1085 1087 1086 1088 1090 1089 1091 1093 1092 1094 1096 1095...
  • Page 32 AS-8060 User Guide 1097 1099 1098 1100 1102 1101 1103 1105 1104 1106 1108 1107 1109 1111...
  • Page 33 AS-8060 User Guide 1110 1112 1114 1113 1115 1117 1116 1118 1120 1119 1121 1123 1122...
  • Page 34 AS-8060 User Guide 1124 1126 1125 1127 1129 Delete 1128 1130 1132 1131 1133 1135 1134 1136 1138...
  • Page 35 AS-8060 User Guide 1137 1139 1141 HOME 1140 INSERT 1142 1144 Page up 1143 Delete 1145 1147 Page down Left arrow 1146 Right arrow 1148 1149 Down arrow Up arrow...

  • Page 36: Enable / Disable Barcodes

    AS-8060 User Guide Enable / disable barcodes Enable code39 00221 Disable code39 00220 Code39 ID as m 0031m Enable code39 Full ASCII (default) 00231 Disable code39 Full ASCII 00230 Disable code39 MOD43 Check (default) 00240 Enable code39 MOD43 Check 00241...
  • Page 37 AS-8060 User Guide Enable code39 transmit* 00281 Disable code32 (default) 01950 Enable code32 Note: It will affect code39. 01951 Code39 TAB Mode 0212M\t System characters hiding code32 01961 System characters sending code32 01960 Setting the CODE39 to a min. length of 1...
  • Page 38 AS-8060 User Guide Code39 min. length 1 (software version available before V7.53) 00321 Code39 min. length 2 (default) Software version available after V7.53 00322 Code39 min. length 3 Software version available after V7.53 00323 Enable UPC-A (default) 00341 Disable UPC-A...
  • Page 39 AS-8060 User Guide UPC-A display system digit 00400 UPC-A hide system digit 00401 Enable UPC-E (default) 00351 Disable UPC-E 00350 UPC-E ID as f 0050f Enable UPC-E change to UPCA 00381 Disable UPC-E change to UPC-A (default) 00380 UPC-E hiding system...
  • Page 40 AS-8060 User Guide UPC-E sending check digits 00441 UPC-E not sending check digits 00440 Enable EAN-13 (default) 00361 Disable EAN-13 00360 EAN-13 ID as d 0051d Transmit EAN-13Check digit (default) 00461 No-transmit EAN-13 check digit 00460 Enable EAN-13 change to...
  • Page 41 AS-8060 User Guide Disable EAN-13 change to ISSN (default) 01500 Enable EAN-13 multiple verify 00541 Disable EAN-13 multiple verify (default) 00540 Enable EAN-8 (default) 00371 Disable EAN-8 00370 EAN-8 ID as c 0052c EAN-8 transmit check digit (default) 00571 EAN-8 No-transmit check digit...
  • Page 42 AS-8060 User Guide Enable 5-digit supplement 00552 Enable 2-digit supplement 00551 Enable 2-digit & 5-digit supplements 00553 Disable supplement (default) 00550 Enable code93 (default) 00621 Disable code93 00620 Code93 ID as i 0066i Enable code93 multiple verify 00681 Disable code93 multiple verify...
  • Page 43 AS-8060 User Guide Disable Code93 MOD47 01900 Enable code128 (default) 00691 Disable code128 00690 Code128 ID as a 0081a Disable code128 multiple verify (default) 00840 Enable code128 multiple verify 00841 Enable codabar (default) 00851 Disable codabar 00850 Codabar ID as v 0094v Codabar min.
  • Page 44 AS-8060 User Guide Codabar start / stop character transmission 00861 Codabar start / stop character without transmission (default) 00860 Enable interleaved 2 of 5 (default) 00961 Disable interleaved 2 of 5 00960 Interleaved 2 of 5 ID as n 0104n Interleaved 2 of 5 min.
  • Page 45 AS-8060 User Guide Enable bank mode 01001 Disable bank mode 01000 Enable industrial 2 of 5 (default) 01061 Disable industrial 2 of 5 01060 Industrial 2 of 5 ID as o 01130 Industrial 2 of 5 min. length 3 010703...
  • Page 46 AS-8060 User Guide Enable Plessey 01161 Disable Plessey (default) 01160 Plessey ID as t 0117t Plessey min. length 3 011903 Enable code11 (default) 01261 Disable code11 01260 code11 ID as u 0131u Code11 min. length 4 012804 Code11 auto CK check...
  • Page 47 AS-8060 User Guide Code11 CK check 01273 Enable Matrix 25 (default) 01461 Disable Matrix 25 01460 Matrix 25 ID as q 00147q Matrix 25 min. length 2 014802 Matrix 25 min. length 3 014803 Enable postal 25 01571 Disable postal 25 (default)
  • Page 48 AS-8060 User Guide Postal 25 min. length 7 015907 Enable aerial 25 01871 Disable aerial 25 (default) 01870 Aerial 25 ID as p 0188p Aerial 25 min. length 7 018907 All EAN change to ISSN 02371 Disable EAN change to ISSN...
  • Page 49 AS-8060 User Guide Disable digital keyboard mode 02580 Enable GS1 Omni-directional 01671 Disable GS1 Omni-directional (default) 01670 GS1 Omni ID as j 0168j Enable GS1 Limited 01771 Disable GS1 Limited (default) 01770 GS1 Limited ID as k 0178k Note: The setting code type is code128. When...
  • Page 50 AS-8060 User Guide  Prefix / suffix code setting instructions 1. The pre/suffix code is divided into a common pre/suffix code and a private pre/suffix code. The common pre/suffix code means that the pre/suffix code is added before a barcode; the...
  • Page 51 AS-8060 User Guide For example, if the common suffix code A is needed, the setting code is 02110041 according to the hexadecimal system; if the common prefix code A is needed, the setting code is 02160041 according to the hexadecimal system.
  • Page 52 AS-8060 User Guide Likewise, if a certain type of barcode needs to be added with a prefix code, all Code 128 codes are needed before the letter A; there are two ways to achieve: 1. 0216 0141 See Table 1 below for explanation.
  • Page 53 AS-8060 User Guide Two setting codes that hide the middle character must be used at the same time, which are 0239nn (to hidden nn characters in the middle) / 0240nn (to begin hidding after the first nn characters). 》For example, if the barcode is 123456789...
  • Page 54 AS-8060 User Guide Lookup table for specific keys and code values (ASCII code values available for standard characters): F1 = 0x80; F2 = 0x81; F3 = 0x82; F4 = 0x83; F5 = 0x84; F6 = 0x85; F7 = 0x86; F8 = 0x87; F9 = 0x88;...

  • Page 55: Ascii Table

    AS-8060 User Guide Tip 2: ASCII = [F3] + ‘0’ + ‘2’ + ‘1’ + ‘6’ + ‘0’ + ‘9’ + ‘0’ + ‘2’ And if CODE93 is added with Home prefix code: ASCII = [F3] + ‘0’ + ‘2’ + ‘1’ + ‘6’ + ‘0’ + ‘9’...
  • Page 56 AS-8060 User Guide Decimal Hexadecimal Character & < >...
  • Page 57 AS-8060 User Guide Decimal Hexadecimal Character Decimal Hexadecimal Character Data link translation Device control 1 Device control 2 Device control 3 Device control 4 Reverse confirmation Synchronous idle Transmission block end Cancel Media end Interchange Translation...
  • Page 58 AS-8060 User Guide Decimal Hexadecimal Character File separator Group separator Record separator Unit separator...
  • Page 59 AS-8060 User Guide Decimal Hexadecimal Character...

  • Page 60: Specifications

    5% to 95% (Non-condensing) Drop Withstands multiple times 1.5meters drops to concrete Regulatory Regulatory CE, FCC, BSMI, RoHS, etc. Approvals *Argox reserves the right to enhance and modify the specification without prior notice. Please check from Argox sales representative for most updated specifications.
