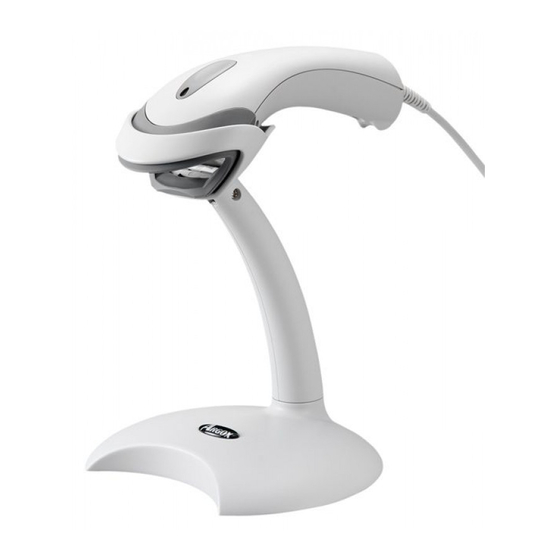

  • Page 1 Leitor Argox AS-8000 CCD O Leitor de Código de Barras Manual Argox AS-8000 CCD é ideal para qualquer tipo de comércio. Com design moderno, leve e ergonômico é capaz de ler todos os códigos de barras utilizados no mercado a uma velocidade de 100 scans por segundo, em uma distância...
  • Page 2 NOTICE: This device complies with Part 15 of the FCC Rules. Operation shall be subject to the following two conditions: (1) This device may not cause harmful interface, and (2) This device must accept any interface received, including interface that may cause undesirable operation.
  • Page 3 Using the ArgoxScan 8000/8120/8150/8250/8310/8312 The ArgoxScan can automatically scan barcode at a distance. Simply aim and pull the trigger. Code scanning is performed along the center of the light bar emitted from the reading window. This bar must cover the entire code. Successful scanning shall be obtained by tilting the scanner with respect to the barcode to avoid direct reflections that impair the reading performance, especially for 2D barcode.
  • Page 4 Note: If any of the above operation is incorrect, turn off the power immediately and check any improper connections. Go through all above steps again. Note: If you need more programming parameters to setup your ArgoScan scanner, please go to www.argox.com and download the completed user’s manual.
  • Page 5 Programming the ArgoScan 8110/8120/8150/8250/8310/8312 To program the 8110/8120/8150/8250/8310/8312, you must scan a series of programming barcode in the correct order. Fold out the back cover of this manual. You will see a table of alphanumeric barcodes, which are used to program the various options presented.

  • Page 6: Interface Selection

    Interface Selection Keyboard Wedge RS-233 Wand Emulation (8110/8150/8250) Keyboard /RS232/USB Auto detection Note: -Default Keyboard Layout USA * Belgium Danish...
  • Page 7 Keyboard Layout - Continued France Germany Italian Portuguese Spanish Swedish Switzerland Latin American Japanese...

  • Page 8: Rs-232 Flow Control

    RS-232 Flow Control None * RTS/CTS Xon/Xoff ACK/NAK RS-232 Baud Rate Setting 300 BPS 600 BPS 1200 BPS 2400 BPS 4800 BPS 9600 BPS *...
  • Page 9 RS-232 Baud Rate Setting (Continued) 19200 BPS 38400 BPS RS-232 Parity Setting None * Even RS-232 Data Bit Setting 8 bits * 7 bits...

  • Page 10: Pin Assignments

    Pin Assignments AS Series 8-pin RJ-45 Connector RS-232 Keyboard VCC (+5V) VCC (+5V) CLK / PC DATA / PC DATA / KB CLK / KB 8-pin 10-pin AS Series 10-pin RJ-45 Connector RS-232 Keyboard VCC (+5V) VCC (+5V) CLK / PC DATA / PC DATA / KB CLK / KB...
  • Page 11 Keyboard Wedge Combo Connector (To Host Side): Mini-DIN 6P Male DIN 5P Female DATA / PC DATA / KB VCC (+5V) VCC (+5V) CLK / PC CLK / KB DIN 5P Female Connector Mini-DIN 6P Male Connector RS-232 DB-9F Connector (To Host Side): Definition VCC (+5V)
  • Page 12 Keyboard Wedge PS/2 Connector (To Host Side): Mini-DIN 6P Male Mini-DIN 6P Female DATA / PC DATA / KB VCC (+5V) VCC (+5V) CLK / PC CLK / KB Mini-DIN 6P Female Connector Mini-DIN 6P Male Connector...

  • Page 13: Scan Mode

    Scan Mode Good-read off Momentary * Alternate Timeout off Continue Test only Stand Mode Enable Stand mode...
  • Page 14 Suffix Characters Setting (Keyboard Wedge & USB) Enter * None...
  • Page 15 Enable Barcode Industrial 2 of 5 Matrix 2 of 5 Eur Standard 2 of 5 Codabar Code 93 Code 11 MSI/Plessey UK/Plessey Telepen China Post Italian Pharmacode (Code 32) Code-16K (for 8250/8312)
  • Page 16 Enable Barcode - Continued EAN UCC Composite (for 8312) RSS-14 RSS-Limited RSS-Expanded Micro-PDF (for 8312) Note: All other barcodes not listed in the table are set to be enabled in default.
  • Page 17 UPCA Supplement digits (for 8120/8150/8250) None * 2 digits 5 digits UCC/EAN 128 Auto detection...
  • Page 18 UPCA Supplement digits (for 8310/8312) None * 2 digits 5 digits 2, 5 digits UCC/EAN 128 2, UCC/EAN 128 5, UCC/EAN 128...
  • Page 19 UPCE Supplement digits (for 8120/8150/8250) None * 2 digits 5 digits UCC/EAN 128 Auto detection...
  • Page 20 UPCE Supplement digits (for 8310/8312) None * 2 digits 5 digits 2, 5 digits UCC/EAN 128 2, UCC/EAN 128 5, UCC/EAN 128...
  • Page 21 UPCA Truncation/Expansion None * Truncate leading zero Expand to EAN-13 UPCE Truncation/Expansion None * Truncate leading zero Expand to EAN-13 Expand to UPCA UPCE Expansion None * Truncate leading zero...
  • Page 22 EAN-13 Supplement digits (for 8120/8150/8250) None * 2 digits 5 digits UCC/EAN 128 Auto detection...
  • Page 23 EAN-13 Supplement digits (for 8310/8312) None * 2 digits 5 digits 2, 5 digits UCC/EAN 128 2, UCC/EAN 128 5, UCC/EAN 128...
  • Page 24 EAN-8 Supplement digits (for 8120/8150/8250) None * 2 digits 5 digits UCC/EAN 128 Auto detection...
  • Page 25 EAN-8 Supplement digits (for 8310/8312) None * 2 digits 5 digits 2, 5 digits UCC/EAN 128 2, UCC/EAN 128 5, UCC/EAN 128...

  • Page 26: Isbn/Issn Conversion

    ISBN/ISSN Conversion Disable * Enable EAN-8 Expansion None * Truncate leading zero...
  • Page 27 Code 39 Check-sum setting Verification Disable * Verification Enable Transmit Disable * Transmit Enable Code 39 Format setting Standard * Full ASCII Append Disable * Append Enable Start/End Tx Disable * Start/End Tx Enable...
  • Page 28 7HVW &KDUW 7HVW &KDUW 7HVW &KDUW 7HVW &KDUW %DU FRGH VDPSOHV PDUNHG ZLWK V\ PE RO DUH HQ DE OHG LQ LWLDOO\  CODABAR-PARA (8110 *) CODE-11 PARA CODE-128 PARA * CODE-39 PARA * CODE-93 PARA EAN-13 PARA *...
  • Page 29 PDF-417 (8250/8312 *) STANDRAD-25 PARA CODE-16K     EAN-8 PARA * INDUSTRIAL-25 PARA UPCE PARA *...
  • Page 30 INTERLEAVED-25 PARA * MATRIX 25 PARA MSI/PLESSEY PARA UPCA PARA * UK/PLESSEY PARA GS1 Databar Micro-PDF (8312 *)
  • Page 31 ASCII Code Table...

  • Page 32: Parameter Setting List

    Parameter Setting List Program Barcode standard parameter setting list If you wish to display the current configuration of your AS-8110/8120/8150/8250/8310/8312, scanner over the host terminal/computer, scan the Barcode standard parameter setting list bar code. Unique parameter list If you wish to display the unique parameter setting list, scan...
  • Page 33 If you wish to display the firmware version, scan the “Firmware version list” barcode. Exit Reset scanner to factory default settings Program WARNING: Default value initialization If you wish to return the AS-8110/8120/8150/8250/8310 to all the factory default settings, scan the Default value initialization bar code.
  • Page 34 Finish...

This manual is also suitable for:

As-8120As-8150As-8250As-8310As-8312
