  • Page 1 AS-8060 Barcode Scanner User Manual http://www.argox.com Version: 1.0 service@argox.com Date: Sept. 18, 2019...

  • Page 2: Regulatory Compliance

    AS-8060 User Guide Regulatory Compliance FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 3 AS-8060 User Guide Note: All brands and trademarks are the property of their respective owners. Note: The specifications contained herein are subject to change without notice. 警告使用者: 這是甲類的資訊產品，在居住的環境中使用時，可 能會造成射頻干擾，在這種情況下，使用者會被要 求採取某些適當的對策。...

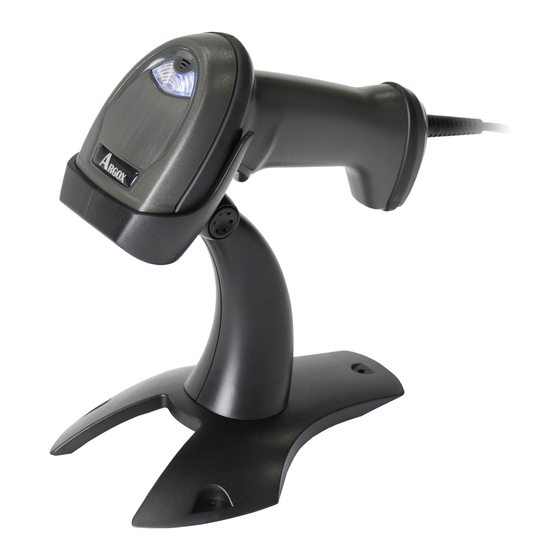

  • Page 4 AS-8060 User Guide Introduction Your AS-8060 is a 1D CCD scanner that has been configured at the factory with default settings. Since many host systems have unique formats and protocol requirements, Argox provides a wide range of configurable features that may be selected using this bar code based configuration tool.
  • Page 5 AS-8060 User Guide Application Field:  Jewelry Tag  Manufacturing  Transportation & Logistics  Healthcare Feature:  Rich to make daily work simple and easy  2500 pixels CCD image sensor  Scan Speed >= 270 times/sec  Max. reading resolution: 3mil (0.762mm) ...
  • Page 6 USB port and enables bidirectional communication between your computer and this scanner. To download the USB virtual COM port driver, go to the Argox global website (http://www.argox.com/) to download the virtual COM port driver of AS-8060 scanner.
  • Page 7 AS-8060 User Guide 013301 013303 013305 Single not Key delay not Auto flashing triggered triggered Sound setting code 014201 014200 0145800 Sound on Sound off Buzzer frequency (Default) 2048 0145AAA 014300 014301 Buzzer frequency High volume Low volume 2731 sound...
  • Page 8 AS-8060 User Guide 020600 02060A Disable A replace Enable A replace 0 0 in code in code (Default) 023300 023305 023301 Display rear Hide rear 5 Hide rear 1 characters characters characters (Default) 023400 023405 023900 Display front Hide front 5...
  • Page 9 AS-8060 User Guide Serial port setting code 000701 000702 000703 Baud rate 600bps Baud rate 1200bps Baud rate 2400bps 000704 000705 000706 Baud rate Baud rate 9600bps Baud rate 4800bps (Default) 19200bps 000707 000708 000709 Baud rate Baud rate 57600bps...
  • Page 10 AS-8060 User Guide 00091 001000 001001 Serial port Serial port Serial port 2 stop bits No parity check odd parity check 001002 Serial port even parity check Normal function setting code 01640 02501 02500 FUNC cast light Enable upload Disable upload...

  • Page 11: Prefix / Suffix Setting

    AS-8060 User Guide 001502 001504 001506 Medium transmit Lower transmit rate Lowest transmit rate (Default) rate Prefix / suffix setting 0212@\r 0211@[ETX] All barcodes (rear) add ETX 0213@\r\n CR+LF 0210@ 02110081 02160081 Cancel all All barcodes (rear) All barcodes barcodes (rear)
  • Page 12 AS-8060 User Guide 02342 02343 Enter hidden Enter the hidden middle character Nth character mode mode Multi-language setting code 0005000 0005001 0005002 English Canada Dutch (Default) (French) (Netherlands) 0005003 0005004 0005005 Spain Argentina Brazil (Spanish) (Latin American) (Portuguese) 0005006 0005007...

  • Page 13: Character Table

    AS-8060 User Guide 0005015 0005016 0005017 Czech Republic Belgium Turkey-F (Czech) (Dutch) 0005018 0005019 0005020 Turkey-Q Poland Switzerland (Polish214) (German, French) 0005021 0005022 0005023 Croatia (Srb-Crt) Hungary Japan (Japanese) (Hungarian) 0005024 0005025 Russia Arabic (Russian) (Egypt) Character table (For adding pre/suffix)
  • Page 14 AS-8060 User Guide 1010 1011 1012 Line 1013 1014 1015 Enter 1016 1017 1018 1019 1020 1021 1022 1023 1024 1025 1026 1027 1028 1029 1030 1031 1032 1033 SPACE 1034 1035 1036 “...
  • Page 15 AS-8060 User Guide 1037 1038 1039 ‘ & 1040 1041 1042 1043 1044 1045 1046 1047 1048 Note: Used to set address/prefix/suffix 1049 1050 1051 Note: Used to set Note: Used to set Note: Used to set address/prefix/suffix address/prefix/suffix address/prefix/suffix...
  • Page 16 AS-8060 User Guide 1058 1059 1060 < 1061 1062 1063 > 1064 1065 1066 1067 1068 1069 1070 1071 1072 1073 1074 1075 1076 1077 1078 1079 1080 1081 1082 1083 1084...
  • Page 17 AS-8060 User Guide 1085 1086 1087 1088 1089 1090 1091 1092 1093 1094 1095 1096 1097 1098 1099 1100 1101 1102 1103 1104 1105 1106 1107 1108 1109 1110 1111...
  • Page 18 AS-8060 User Guide 1112 1113 1114 1115 1116 1117 1118 1119 1120 1121 1122 1123 1124 1125 1126 1127 1128 1129 Delete 1130 1131 1132 1133 1134 1135 1136 1137 1138...
  • Page 19 AS-8060 User Guide 1139 1140 1141 INSERT HOME 1142 1143 1144 Page up Delete 1145 1146 1147 Page down Right arrow Left arrow 1148 1149 Down arrow Up arrow Enable / disable barcodes 00221 00220 0031m Enable code39 Disable code39...
  • Page 20 AS-8060 User Guide 01950 01951 0212M\t Disable code32 Enable code32 Code39 TAB (Default) Note: It will affect Mode code39. 01961 01960 System System characters characters sending code32 hiding code32 003201 003202 003203 Setting the Setting the CODE39 Setting the CODE39 to a min.
  • Page 21 AS-8060 User Guide 00391 00390 00421 Enable UPC-A Disable UPC-A Transmit UPC-A change to change to check digit EAN-13 EAN-13 (Default) (Default) 00420 00401 00400 No-transmit UPC-A hide UPC-A display UPC-A check system digit system digit digit 00351 00350 0050f...
  • Page 22 AS-8060 User Guide 00361 00360 0051d Enable EAN-13 Disable EAN-13 EAN-13 ID as d (Default) 00461 00460 Transmit No-transmit EAN-13Check EAN-13 check digit digit (Default) 00481 00480 Enable EAN-13 Disable EAN-13 change to ISBN change to ISBN (Default) 01501 01500...
  • Page 23 AS-8060 User Guide 00571 00570 EAN-8 transmit EAN-8 check digit No-transmit check (Default) digit 00561 00560 EAN-8 hide EAN-8 display system digit system digit (Default) 00552 00551 00553 Enable 5-digit Enable 2-digit Enable 2-digit & supplement supplement 5-digit supplements 00550...
  • Page 24 AS-8060 User Guide 01901 01900 Enable Code93 Disable Code93 MOD47 MOD47 (Default) 00691 00690 0081a Enable code128 Disable code128 Code128 ID as a (Default) 00840 00841 Disable code128 Enable code128 multiple verify multiple verify (Default) 00851 00850 0094v Enable codabar...
  • Page 25 AS-8060 User Guide 009704 Interleaved 2 of 5 min. length 4 00981 00980 00991 Enable Disable No transmission Interleaved 2 of Interleaved 2 of 5 of check on 5 ID check ID check Interleaved 2 of 5 00990 01001 01000...
  • Page 26 AS-8060 User Guide 011804 MSI min. length 01161 01160 0117t Enable Plessey Disable Plessey Plessey ID as t (Default) 011903 Plessey min. length 3 01261 01260 0131u Enable code11 Disable code11 code11 ID as u (Default) 012804 Code11 min. length 4...
  • Page 27 AS-8060 User Guide 01461 01460 00147q Enable Matrix Disable Matrix 25 Matrix 25 ID as q (Default) 014802 014803 Matrix 25 min. Matrix 25 min. length 2 length 3 01571 01570 0158r Enable postal 25 Disable postal 25 Postal 25 ID as r...
  • Page 28 AS-8060 User Guide 02371 02370 All EAN change Disable EAN to ISSN change to ISSN (Default) 02361 02360 All EAN change Disable EAN to ISBN change to ISBN (Default) 02581 02580 Enable digital Disable digital keyboard mode keyboard mode 01671...
  • Page 29 AS-8060 User Guide Note: The setting code type is code128. When generating a barcode, you must add ^3 before the barcode, ie ^3+****** (required barcode): The ASCll codes in this table are all decimal. For the hexadecimal, please refer to the attached table ...
  • Page 30 AS-8060 User Guide [2]. In the second way, the prefix and suffix codes are added. Setting codes are scanned and set through ASCII code. The setting codes are 021100nn (suffix code) and 021600nn (prefix code). This ASCII setting is hexadecimal. Refer to ASCII Table 1 for specific parameters.
  • Page 31 AS-8060 User Guide Likewise, if a certain type of barcode needs to be added with a prefix code, all Code 128 codes are needed before the letter A; there are two ways to achieve: 1. 0216 0141 See Table 1 below for explanation. See ASCII code table 2.
  • Page 32 AS-8060 User Guide Two setting codes that hide the middle character must be used at the same time, which are 0239nn (to hidden nn characters in the middle) / 0240nn (to begin hidding after the first nn characters). 》For example, if the barcode is 123456789...
  • Page 33 AS-8060 User Guide （15） CODE11 （16） CODABAR Lookup table for specific keys and code values (ASCII code values available for standard characters): F1 = 0x80; F2 = 0x81; F3 = 0x82; F4 = 0x83; F5 = 0x84; F6 = 0x85;...

  • Page 34: Ascii Table

    AS-8060 User Guide Tip 2: ASCII = [F3] + ‘0’ + ‘2’ + ‘1’ + ‘6’ + ‘0’ + ‘9’ + ‘0’ + ‘2’ And if CODE93 is added with Home prefix code: ASCII = [F3] + ‘0’ + ‘2’ + ‘1’ + ‘6’ + ‘0’ + ‘9’...
  • Page 35 AS-8060 User Guide Decimal Hexadecimal Character " & < >...
  • Page 36 AS-8060 User Guide Decimal Hexadecimal Character Decimal Hexadecimal Character Data link translation Device control 1 Device control 2 Device control 3 Device control 4 Reverse confirmation Synchronous idle Transmission block end Cancel Media end Interchange...
  • Page 37 AS-8060 User Guide Decimal Hexadecimal Character Translation File separator Group separator Record separator Unit separator...
  • Page 38 AS-8060 User Guide Decimal Hexadecimal Character...

  • Page 39: Specifications

    5% to 95% (Non-condensing) Drop Withstands multiple times 1.5meters drops to concrete Regulatory Regulatory CE, FCC, BSMI, RoHS, etc. Approvals *Argox reserves the right to enhance and modify the specification without prior notice. Please check Argox sales representative for most updated specifications.
