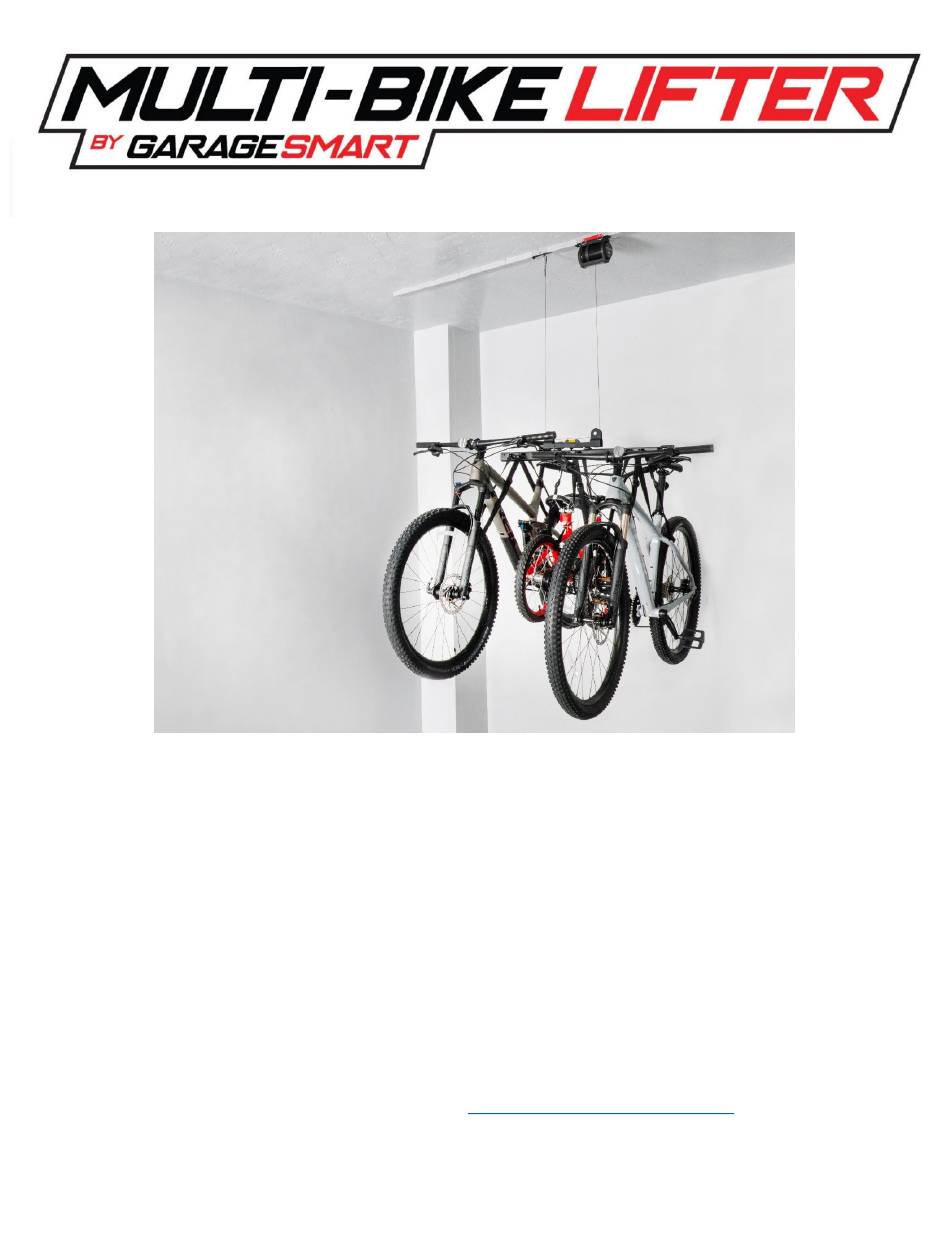

- Page 1 Installation and User Guide Garage Smart support – support.garagesmart.com...
-
Page 2: Table Of Contents
Install the Smart Track ..........................7 Install the MyLifter unit ..........................9 Pair the MyLifter unit with the MyLifter app ..................11 Attach the MyLifter cable to the Multi-Bike Lifter frame ............12 Limited Lifetime Warranty ......................... 15 ... -
Page 3: Safety Information
WARNING DO NOT install Garage Smart products in any other manner than specified in the instructions. To avoid risk of electric shock and other potential injury, DO NOT open the product casing. This product is for indoor use only. Failure to follow these safety instructions could result in property damage, serious personal injury, or death. -
Page 4: Fcc Statement
FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. -
Page 5: About The Multi-Bike Lifter
About the Multi-Bike Lifter The Multi-Bike Lifter by GarageSmart is designed to lift up to three bicycles with a single 100-pound capacity MyLifter unit. The Multi-Bike Lifter is controlled by your smart device to lift the bikes off the floor and up to the ceiling with a simple tap on your device screen. -
Page 6: Installation Overview
Installation Overview With the Multi-Bike Lifter, you can lift one, two, or up to three bicycles with one MyLifter. The MyLifter can lift a total of 100 pounds. The Multi-Bike Assembly component (see Parts Identifier) weighs eight pounds. This means that the total weight of the bicycles you want to lift cannot exceed 92 pounds. -
Page 7: Install The Smart Track
DANGER DO NOT install Garage Smart products in any other manner than specified in the instructions. To avoid risk of electric shock and other potential injury, DO NOT open the product casing. This product is for indoor use only. Failure to follow these safety instructions could result in property damage, serious personal injury, or death. - Page 8 3. Use a pencil to mark the center of the joist. 4. Using the included drill bit, drill a pilot hole at least three inches into the center mark you made. 5. Hold the Smart Track in place over the pilot hole and screw in one of the included lag screws and washers.
-
Page 9: Install The Mylifter Unit
DC cable is connected to the MyLifter, hook the carabiner into the third hole from the lifter. 4. Plug in one end of the DC Power Cable into the Garage Smart Power Adapter. 5. Install the power adapter anywhere on the Smart Track. The universal mount attached to the bottom of the power adapter lets you easily slide and snap it into place on the track. - Page 10 8. Secure and organize the cables. a. Peel off the adhesive backing from a cable management clip and stick it where you want. b. Secure the cable management clip with a screw, place all wires into the clip, and securely close the clip. c.
-
Page 11: Pair The Mylifter Unit With The Mylifter App
Pair the MyLifter unit with the MyLifter app 1. Download the MyLifter app from the App Store or Google Play. 2. Open the app and tap Add Devices in the bottom right corner. 3. In the Unpaired Devices section, tap your lifter. 4. -
Page 12: Attach The Mylifter Cable To The Multi-Bike Lifter Frame
Attach the MyLifter cable to the Multi-Bike Lifter frame 1. In the MyLifter app, tap the name of your MyLifter unit to go to the Device Control screen. The Device Control screen looks similar to the image shown below: 2. Press the Manual Lower button to lower the cable. - Page 13 6. Tighten the straps to make each bike level with the ground. 7. Turn the crank handle on the Multi-Bike Lifter frame to make each bike level with the others. Use the level on the balancing frame to find the balance point.
- Page 14 Placing the stickers ensures that you can quickly find the balance point every time simply by lining up the stickers. NOTICE If you plan to use only one or two of the bikes at a time, you can use the remaining stickers to indicate the balancing points for each scenario.
-
Page 15: Limited Lifetime Warranty
Limited Lifetime Warranty Garage Smart offers a Limited Lifetime Warranty on all products. If a defect in the hardware, or any component thereof, occurs Garage Smart will repair or replace the system, or the defective component. There is no cost to you beyond the cost of shipping the defective item to us. - Page 16 Lifter system voids the warranty. Unauthorized repair or modification voids the warranty. The Lifter system is intended for personal, indoor, home use. Garage Smart does not warrant its lift system for commercial use, and any such use voids the warranty.
