Summary of Contents for Cooke & Lewis MGO45CL

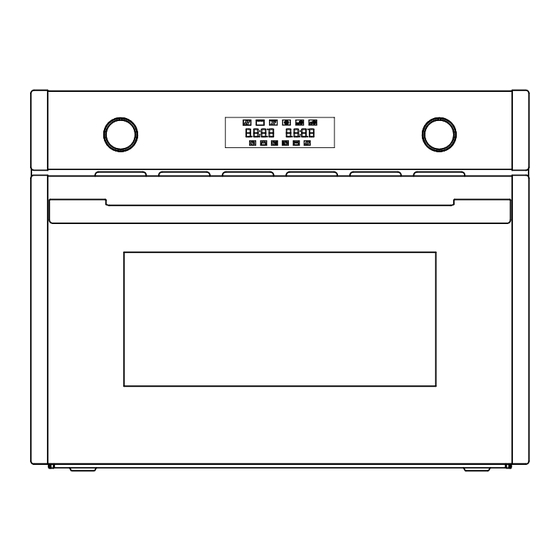

- Page 1 60CM BUILT IN MICROWAVE & GRILL GB IE Built-in Microwave & Grill - Barcode: 5052931258703 WARNING: Read the instructions before using the appliance. MGO45CL-C&L-A5-GB-IM-07.indd 1 11/4/13 2:45 PM...
- Page 2 [01] x 1 [02] x 1 1 : 1 [06] x 4 (4 x 25mm) [03] x 1 [04] x 1 [05] x 1 Microwave Glass Plate Diameter 31.5cm MGO45CL Built-in Microwave & Grill MGO45CL-C&L-A5-GB-IM-07.indd 2 11/4/13 2:45 PM...
-
Page 3: Table Of Contents
Getting Your product Before you start Safety more detail… Operation Care and maintenance Troubleshooting Recycling and disposal Technical and legal information Guarantee CE Declaration of conformity Appendix... Installation MGO45CL-C&L-A5-GB-IM-07.indd 3 11/4/13 2:45 PM... -
Page 4: Your Product
Your product MGO45CL Built-in Microwave & Grill Parts list Note! This diagram may be slightly different from the layout of the appliance. 01. Door handle 02. Door window glass 03. Door seal 04. Drive shaft 05. Turntable ring 06. Turntable plate 07. -
Page 5: Before You Start
Before you start MGO45CL Built-in Microwave & Grill Things to check before you start To avoid the risks that are always present when you use an electrical appliance it is important that this appliance is installed correctly and that you read the safety instructions carefully to avoid misuse and hazards. -
Page 6: Safety
Safety MGO45CL Built-in Microwave & Grill IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE. This appliance complies with all current European safety legislation, however, the Manufacturer must emphasise that this compliance does not prevent the surfaces of the appliance from heating up during use and remaining hot during its operation. - Page 7 Safety MGO45CL Built-in Microwave & Grill This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Page 8 Safety MGO45CL Built-in Microwave & Grill Danger of burns! During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven. Warning! Accessible parts may become hot during use. Children should be kept away.
- Page 9 Safety MGO45CL Built-in Microwave & Grill Microwave heating of beverages can result in delayed boiling; therefore care has to be taken when handling the container. The content of feeding bottles and baby food jars are to be stirred or shaken and the temperature is to be checked before consumption, in order to avoid burns.
- Page 10 Safety MGO45CL Built-in Microwave & Grill Warning! Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.
-
Page 11: Operation
Operation MGO45CL Built-in Microwave & Grill Precautions to avoid possible exposure to excessive microwave energy Do not attempt to operate this oven with the door open, as this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks. -
Page 12: Using The Oven
Operation MGO45CL Built-in Microwave & Grill Control panel Functions description Microwave Grill Grill + microwave Defrost by time Defrost by weight Pizza Clock Child Lock Working time Delay time Mark of weight Microwave conditions Using the oven • When the oven is used for the first time, it should be heated to the maximum... - Page 13 Operation MGO45CL Built-in Microwave & Grill Functions Microwave functions • After selecting the microwave function the indicator " " " light up, press PT1 and turn PT1 to set the cooking time and the microwave power, " " " " indicator light. Press PT1 to adjust the duration, after the setting, press PT2, the appliance starts working immediately.
- Page 14 Operation MGO45CL Built-in Microwave & Grill Functions Power Time Standing Food Quantity (g) Dish (min) time (min) Cheese topped low dish 12-17 pasta Cheese topped low dish 20-22 potatoes Lasange approx. 800 low dish 15-20 Grilled cream approx. 500 low dish...
- Page 15 Operation MGO45CL Built-in Microwave & Grill Functions • We can calculate the defrosting time according to different food and weight, and the microwave power can adjust automatically to reach the best defrosting effect. Furthermore, the table beneath offers a guide to defrosting type of food by weight, which includes weight level, defrosting time and follow-up time.
- Page 16 Operation MGO45CL Built-in Microwave & Grill Functions If you wish, at this time you can: • Turn or stir the food to ensure it will be evenly cooked. • Modify the process parameters. • Cancel the process by pressing PT2 for 3 seconds.
-
Page 17: Recommended Baking Menu
Operation MGO45CL Built-in Microwave & Grill Functions To deactivate child lock • Press PT1 for 3 seconds, then the child lock is off. • Go to off mode by pressing PT2 twice. • Press “PT1” for around 3 seconds. •... - Page 18 Operation MGO45CL Built-in Microwave & Grill Recommended baking menu • It is not possible to heat with much oil (frying) in the microwave. • If you have several containers, such as cups, for example, set them out uniformly on the turntable plate.
- Page 19 Operation MGO45CL Built-in Microwave & Grill Recommended baking menu Vegetables Follow- Weight Water Fire Time Food up time Notice (ml) power (Min) (Min) Cauliflower 9-11 Cut into slices Broccoli Cover well Mushroom Peas, carrots, Cut into slices or frozen carrots...
- Page 20 Operation MGO45CL Built-in Microwave & Grill Recommended baking menu Defrosting with Microwaves General instructions for defrosting • When defrosting, use only dishes that are appropriate for microwaves. • The defrost function by weight and the tables refer to the defrosting of raw food.
- Page 21 Operation MGO45CL Built-in Microwave & Grill Recommended baking menu Please refer to the following table for different temperature of various food. Defrosting Follow-up Frequency of Food Weight (g) time (Min) time (Min) turnover 5-10 5-10 10-12 10-15 Meat (veal, beef,...
- Page 22 Operation MGO45CL Built-in Microwave & Grill Recommended baking menu Cooking with the Grill For a better baking, use the rack supplied. Insert the rack in the way that it does not come into contact with the metal surface of the oven cavity in case any danger of electric arcing which may damage the oven.
- Page 23 Operation MGO45CL Built-in Microwave & Grill Recommended baking menu Pizza function • It is not necessary to pre-heat the browning plate to cook pizzas. • Place the pizza directly on the browning plate. • Place the browning plate on the centre of the glass turntable in the microwave oven.
- Page 24 Operation MGO45CL Built-in Microwave & Grill Recommended baking menu Aluminum containers and foil Pre-cooked food in aluminum containers or in aluminum foil can be put in the microwave if the following aspects are respected. • If the manufacturers instructions state the container is suitable for microwave cooking.
-
Page 25: Care And Maintenance
Care and maintenance MGO45CL Built-in Microwave & Grill Care and maintenance Warning! Always switch off the electricity supply before performing maintenance work. In the event of a fault, contact customer services. Caution! Do not use hot water, diluents, petrol, alcohol, kerosene, washing powder, cleanser, alkaline detergent, acid, chemical cloth, etc. - Page 26 Care and maintenance MGO45CL Built-in Microwave & Grill Care and maintenance Cleaning stainless steel • To keep stainless steel in a good condition, it should be cleaned regularly. Daily cleaning routine • When cleaning and caring for stainless steel surfaces, always use only specific products which do not contain abrasives or chlorine-based acids.
- Page 27 Care and maintenance MGO45CL Built-in Microwave & Grill Care and maintenance Rinse of door seal and front panel • Please rinse in time if there are residues left in door seal or on front panel. Do not use rough cleaning tools like hard brush, coarse cloth, wire netting, knife or any other sharp tools, using those sharp tools may scratch door seal or the surface of the front panel.
-
Page 28: Materials You Can Use In Microwave Oven
Care and maintenance MGO45CL Built-in Microwave & Grill Materials you can use in microwave oven Caution! • When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of catching fire. • Do not overcook food. - Page 29 Care and maintenance MGO45CL Built-in Microwave & Grill Materials you can use in microwave oven Oven cooking bags • Follow the manufacturer’s instructions. Do not close with metal tie. Pierce to allow steam to escape. Paper plates and cups • Use for short–term cooking/warming only. Do not leave oven unattended while cooking.
-
Page 30: Materials To Be Avoided In Microwave Oven
Care and maintenance MGO45CL Built-in Microwave & Grill Materials to be avoided in microwave oven Aluminium trays • May cause arcing. Transfer food into a microwave-safe dish. Food carton with metal handle • May cause arcing. Transfer food into a microwave-safe dish. -
Page 31: Troubleshooting
Troubleshooting MGO45CL Built-in Microwave & Grill Troubleshooting The following circumstances may not be a problem. Do not contact the customer services until the problem has been confirmed. Fault Cause Solution Microwave oven Radio and TV reception This does not indicate... -
Page 32: Recycling And Disposal
Troubleshooting MGO45CL Built-in Microwave & Grill Recycling and disposal Troubleshooting Fault Cause Solution Oven does not heat Door not closed properly. Close door properly. Glass turntable makes a Dirty roller rest and oven See Care and noise when microwave bottom. -
Page 33: Technical And Legal Information
Technical and legal information MGO45CL Built-in Microwave & Grill Technical and legal information Power supply : 220-240 V~, 50 Hz Rated input power (Microwave) : 1500-1600 W Rated output power (Microwave) : 1000W Rated input power (Grill) : 1400-1650W Oven capacity... -
Page 34: Guarantee
Guarantee MGO45CL Built-in Microwave & Grill Guarantee This appliance is covered by a full manufacturer’s 2 year parts and 2 year labour guarantee and covers all parts and labour costs associated with the repair of the appliance in a domestic environment. We will repair any defect that arises due to faulty materials or workmanship and use genuine manufacturers parts. - Page 35 Guarantee MGO45CL Built-in Microwave & Grill Guarantee Exclusions to the guarantee This guarantee does NOT cover: Appliances that have been damaged or neglected as a result of failure to store, assemble, install, use or care of the products in accordance with the manufacturer’s instructions - GAA will not accept responsibility under this...
-
Page 36: Ce Declaration Of Conformity
CE Declaration of Conformity MGO45CL Built-in Microwave & Grill CE Declaration of Conformity MANUFACTURER: CATA C/ Ter nº 2, Torelló 08570 - Barcelona (Spain) ADDRESS: We hereby certify that the mentioned accessory complies with the essential requirements of the European Directives applicable, including their modifications and the corresponding transpositions from the national law. -
Page 37: Installation
The manufacturer declines all responsibility for improper installation, which may harm persons and animals and damage property. Caution The power supply to the appliance must be cut off before any adjustments or maintenance work is done on it. MGO45CL-C&L-A5-GB-IM-07.indd 37 11/4/13 2:45 PM... - Page 38 In particular the adhesive that bonds the plastic laminate to the furniture must be able to withstand temperatures of not less than 150°C to avoid delamination. The appliance must be housed in heat-resistant cabinets. MGO45CL-C&L-A5-GB-IM-07.indd 38 11/4/13 2:45 PM...
- Page 39 It is essential when installing your oven there is adequate air circulation around the appliance to ensure the correct operation of the appliance. Inadequate air circulation will greatly impair the operation of the appliance and can affect surround cabinets due to the rise in temperature. MGO45CL-C&L-A5-GB-IM-07.indd 39 11/4/13 2:45 PM...
-
Page 40: Electrical Connection
The installer must ensure that the correct electrical connection has been made and that it complies with wiring diagram. The cable must not be bent or compressed. The cable must be checked regularly and replaced by authorized techniciansonly. MGO45CL-C&L-A5-GB-IM-07.indd 40 11/4/13 2:45 PM... - Page 41 Blue = N - Neutral Green and Yellow = - Earth The connection point must be placed in a position adjacent to the appliance so as to be readily accessible for an engineer in the event of a breakdown. MGO45CL-C&L-A5-GB-IM-07.indd 41 11/4/13 2:45 PM...
- Page 42 Also ensure that you adjust the furniture doors adjacent to the sides of the oven so there is a 4 - 6mm gap between them, otherwise heat displaced from the oven might damage the furniture door.The appliance is now ready to use. The appliance is now ready to use. MGO45CL-C&L-A5-GB-IM-07.indd 42 11/4/13 2:45 PM...
- Page 43 Notes MGO45CL-C&L-A5-GB-IM-07.indd 43 11/4/13 2:45 PM...
- Page 44 B&Q plc, Chandlers Ford, Hants, SO53 3LE United Kingdom www.diy.com MGO45CL-C&L-A5-GB-IM-07.indd 44 11/4/13 2:45 PM...
