- Page 1 Manual of use and maintenance...
-
Page 2: Table Of Contents
01.0 Identification data ..........................4 01.1 Identification datas ........................4 01.2 Identification plate of the recharging unit ..................4 01.3 Identification plate of the silverlight handpiece ................5 02.0 Testing ..............................5 02.1 Testing of the equipment ......................5 03.0 Delivery..............................5 03.1 Delivery of the device ......................... -
Page 3: Introduction
Gradual intensity of emission - SLOW RISE (cycle lasting 20 seconds). 00.3 Intended use The Silverlight device is a dental curing light unit intended for use in the oral cavity for the polymerization of photo-hardening dental materials that are activated in the 440 – 480 nm. wavelength range. -
Page 4: Safety Requirements
00.4 Safety requirements The manufacturer Mectron S.p.A. and the importer/distributor, GC America Inc, will not accept any liability for direct or incidental personal injury or damage to property in the following cases: If the equipment is used for purposes other than that for which it is intended. -
Page 5: Identification Data
Follow the instructions provided under point “07.0” closely. � DANGER: Use only original Mectron S.p.A. accessories and spare parts. � DANGER: Checking the condition of the device before treatment. Before each treatment always check that the equipment is in proper working order and that the accessories are efficient. -
Page 6: Identification Plate Of The Silverlight Handpiece
01.3 Identification plate of the silverlight handpiece The Silverlight handpiece serial number is engraved on the shell near the back steel ring nut (Fig.2 - Ref.A). Fig. 2 02.0 Testing 02.1 Testing of the equipment All equipment, including all components, is thoroughly checked and tested by the manufactured Mectron. -
Page 7: List Of Material Included In The Standard Supply

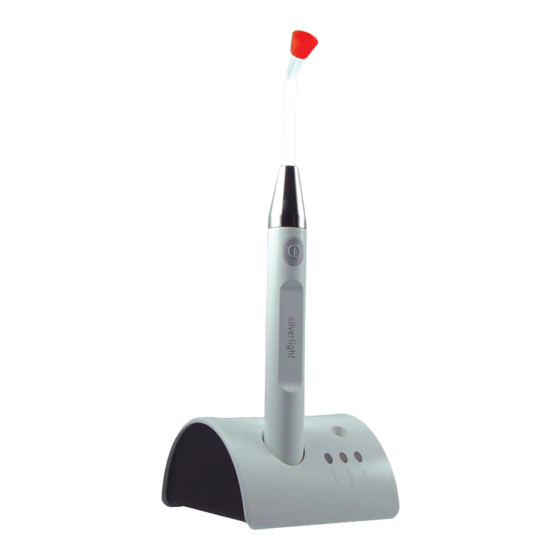

03.2 List of material included in the standard supply Silverlight recharging unit (Fig.3 - Ref.A). Silverlight handpiece with rechargeable lithium-ion battery (Fig.3 - Ref.B). Fiber optic (Fig.3 - Ref.C). Optical protection (Fig.3 - Ref.D). Power supply cable for the recharging unit (Fig.3 - Ref.E). -
Page 8: Installation
Red: Indicates that the light intensity is insufficient. Ref. D Push-button for activating and cutting off the emission of light. Function: This starts or stops a polymerization cycle. Fig. 4 silverlight - manual of use and maintenance... - Page 9 6 cycles. Pressure of push button Battery dead signal for FAST or SLOW RISE 2 beeps - No light emission polymerisation Thermal protection signal 3 beeps during the exposure cycle silverlight - manual of use and maintenance...
-
Page 10: Connecting The Device
05.2 Battery low signal When the charge of the battery becomes low after frequent use of the Silverlight, the microprocessor will allow 6 more exposures to be carried out (FAST or SLOW RISE) without any need to recharge the battery. -
Page 11: Battery Dead Signal
05.3 Battery dead signal The battery of the Silverlight is dead if no light is emitted when the push-button is pressed and at the same time an acoustic signal is heard (two beeps). To recharge the battery: Place the handpiece in its housing in the recharging unit (Fig.5 - Ref.B). The green battery LED will light up (Fig.4 - Ref.B). -
Page 12: Use
Follow the instructions given under point “07.0” very carefully. In order to use the Silverlight, the following accessories have to be connected: Fit the fiber optic into the handpiece. Do this by hand, rotating it slightly in a clockwise direction until it reaches the end of travel. -
Page 13: Safety Requirements During Use
After 20 seconds an acoustic signal will be heard (one beep). The SLOW RISE cycle has been com- pleted. After the end of the treatment, place the Silverlight handpiece back into the recharging unit (Fig.5 - Ref.B). NOTE: Interrupting the cycle. -
Page 14: Measuring The Light Intensity
If these measures do not lead to improved performance, place the device out of commission (by disconnecting it from the mains) and make sure that it cannot be started by unauthorized persons. Contact GC America Inc. Customer Service. Fig. 8 silverlight - manual of use and maintenance... -
Page 15: Safety Protection
NOTE: Water-based disinfectants with a neutral pH are strongly recommended. Some alcohol-based disinfectant solutions may be harmful and cause damage to plastic materials. 07.2 Cleaning and disinfecting the Silverlight handpiece � DANGER: The handpiece is not protected against the penetration of liquids. -
Page 16: Sterilization Procedure
Disinfect the surface using a cloth moistened with a solution of mild detergent/disinfectant having a neutral pH (pH = 7). Dry. Seal the fiber optic in a disposable bag on its own. Autoclave sterilize the fiber optic. silverlight - manual of use and maintenance... -
Page 17: Cleaning, Disinfection And Sterilization Of The Optical Protection
Type “B” applied part Serial number Manufacturer This device and its accessories shouldn’t be disposed or treated as solid urban waste Apparatus in accordance with EC Directive 93/42 EEC. Including EN 60601-1 and EN 60601-1-2 silverlight - manual of use and maintenance... -
Page 18: Problem-Solving
See point “07.4”. optic is soiled. The green battery LED does not Recharging complete. Battery See point 04.2 - Table 1. light up when the handpiece is charged. placed back on the charging unit. silverlight - manual of use and maintenance... -
Page 19: Technical Specifications
Relative humidity from 10% to 90% Air pressure P: 500 hPa/1060 hPa Weights and dimensions: Recharging unit: Weight 555 g. 96 x 120 x 58 mm. Silverlight handpiece: Weight 105 g. L 198 mm Max. Ø 22.5 mm. silverlight - manual of use and maintenance... -
Page 20: Electromagnetic Compatibility En 60601-1-2
Guidance and manufacturer’s declaration - Electromagnetic emissions The Silverlight is intended for use in the electromagnetic environment specified below. The customer or the user of the Silverlight should assure that it is used in such an environment. Emissions test Compliance... - Page 21 Guidance and manufacturer’s declaration - Electromagnetic immunity The Silverlight is intended for use in the electromagnetic environment specified below. The customer or the user of the Silverlight should assure that it is used in such an environment. Immunity test IEC 60601...
- Page 22 To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the Silverlight is used exceeds the applicable RF compliance level above, the Silverlight should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as re-orienting or relocating the Silverlight.
- Page 23 Recommended separation distances between portable and mobile RF communications equipment and the Silverlight The Silverlight is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the Silverlight can help prevent...
-
Page 24: Limited Warranty
All Silverlight products are covered by warranty for a period of one year from the date of purchase. Products are warranted to be free from defects in material and workmanship. -
Page 25: Customer Service - Returns
Some jurisdictions do not allow limits on warranties, or on remedies, and, in such jurisdictions, the limit in this and the preceding paragraphs may not apply. The information given in this manual is not binding and can be modified without prior notice. silverlight - manual of use and maintenance... - Page 26 3737 West 127th St. Alsip, IL 60803 Phone:800-323-7063 Fax: 800-GCFAXME Caution: US Federal Law restricts this device to sale by or on the order of a dentist. manufacturer: Mectron S.p.A. Via Loreto 15/A 16042 Carasco (Ge) Italy Tel. +39 0185 35361 Fax +39 0185 351374 www.mectron.com...
