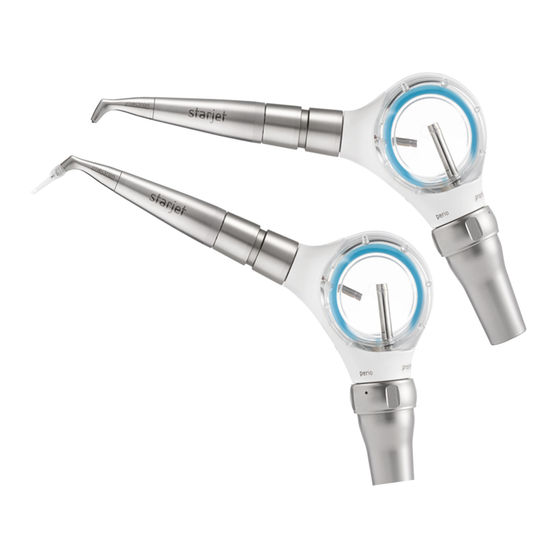

mectron STARJET Use And Maintenance Manual
  1. Manuals
  2. Brands
  3. mectron Manuals
  4. Dental equipment
  5. STARJET
  6. Use and maintenance manual

mectron STARJET Use And Maintenance Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
EN
Use and maintenance manual
STARJET

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STARJET and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for mectron STARJET

Summary of Contents for mectron STARJET

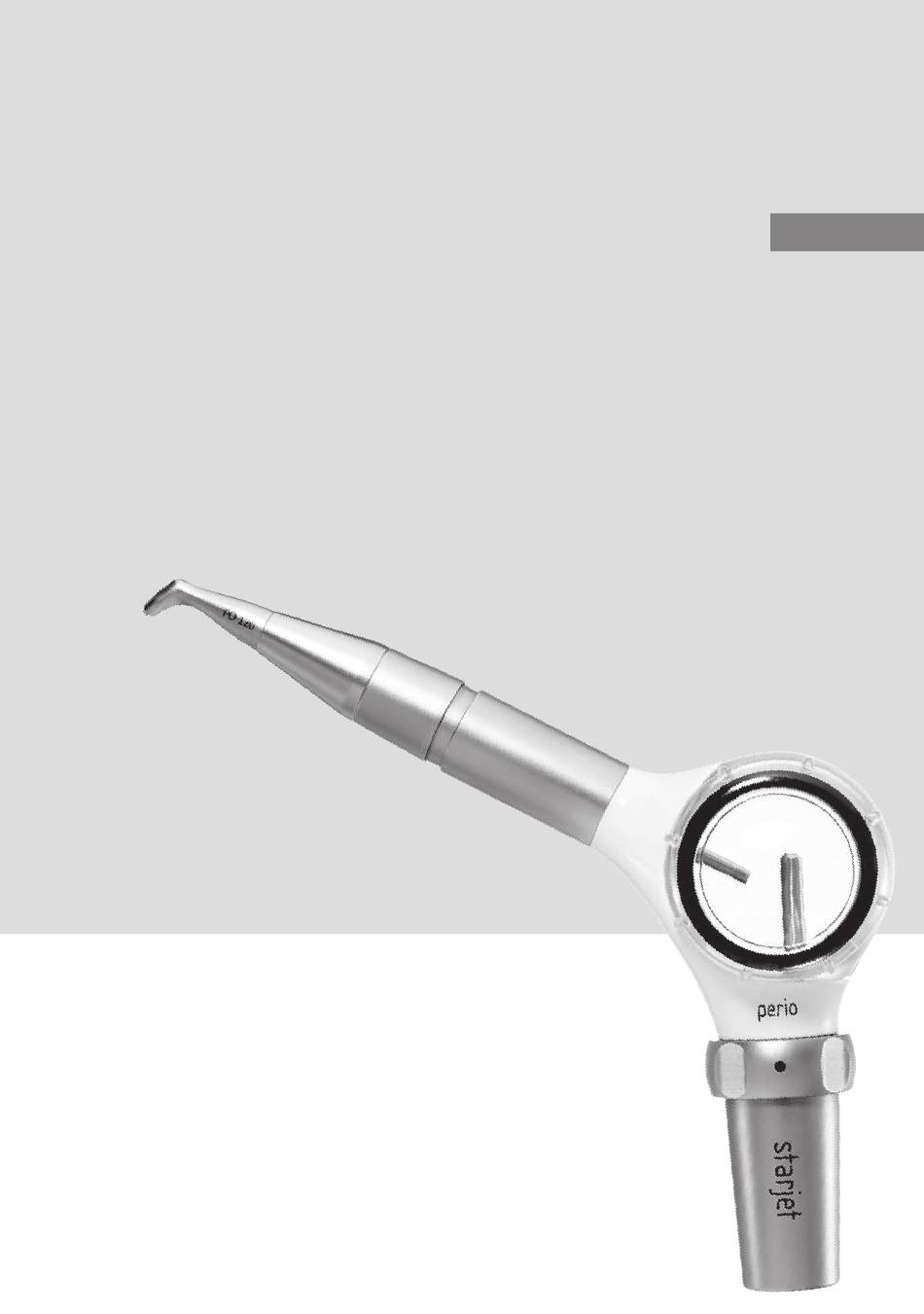

  • Page 1 Use and maintenance manual STARJET...

  • Page 2: Table Of Contents

    05.3 Cleaning the powder container..................16 06 CleaNINg, DISINfeCTION aND STerIlISaTION ......18 06.1 Preparation .........................19 06.2 Cleaning and disinfecting Starjet device ..............20 06.3 Cleaning accessories that can be sterilised ............... 22 06.3.1 Manual cleaning ......................22 06.3.2 Combined manual/automatic cleaning ..............29 06.3.2.1 Manual pre-wash ............................29...
  • Page 3 08 DISPOSal mODeS aND PreCauTIONS ...........37 09 TeCNIChal DaTa ..................37 10 TrOubleShOOTINg ................38 10.1 Quick solution to problems .................... 38 10.2 Sending the device to an authorised mectron service center ......39 11 WarraNTy ....................40 ® ® Unifix - Unifix L is a registered trademark of Bien-Air company ®...

  • Page 4: Introduction

    The Starjet has all the main advantages of the rise to a gentle but effective cleansing effect. best-known table-top devices: This action is completed by a jet of water that •...

  • Page 5: Responsibility Waiver

    Starjet 01.3 reSPONSIbIlITy WaIver Mectron will not accept any liability for direct or incidental personal injury or damage to property in the following cases: 1 If the equipment is used for purposes other than those for which it is intended.
  • Page 6 WARNING: Infection control. To ensure maximum safety of patient and WARNING: Use authentic Mectron operator, before using all the reusable accessories only. parts and accessories, they should first be cleaned and sterilized, following the instructions in Chapter 06 - Cleaning, disinfection and sterilisation.

  • Page 7: Symbols

    Starjet 01.5 SymbOlS Serial number Lot number Product code Warning: read the instructions for use Operating instructions 35 °C Temperature limitation - transport and storage conditions -10 °C 70 % Humidity limitation - transport and storage conditions 10 % 1060 hPa...

  • Page 8: Identification Data

    An exact description of the model and serial number of the device will enable our After-Sales Service to provide fast and efficient support. Always provide this information whenever you contact an Authorized Mectron Service Center. 02.1 DevICe IDeNTIfICaTION DaTa The device name, serial number and other relevant information is laser marked on the device.

  • Page 9: Delivery

    G packet of “Glycine powder“ (for European market only) H packet of “Prophylaxis powder“ I use and maintenance manual L brush Starjet has accessories available that can be The device is delivered duly protected and ordered separately. packed. The quantity and type of accessories supplied...

  • Page 10: Installation

    To ensure that the device is in working order, your dental unit. Use the Starjet only for the it is necessary to check the following: fitting on your own turbine. Fitting the Starjet to a different connector could damage it.

  • Page 11: Use

    Starjet 05 uSe Depending on the type of application CAUTION: The subgingival perio tip required you need to choose the powder and can only be used with the PERIO polisher the specific cleaner terminals. tip. 1 For applications using bicarbonate-based...

  • Page 12: Safety Precautions Before And During Use

    WARNING: Contraindications. the equipment contact an authorised Patients wearing contact lenses should technical service centre. remove them prior to receiving treatment WARNING: Use authentic Mectron with the jet polisher. accessories only. WARNING: Controindications. WARNING: Infection control and Do not direct the stream of air/powder/ cleaning of the water and air circuits.

  • Page 13: Instructions For Use

    WARNING: Before proceeding with successive operations, make sure that the polisher tip is inserted correctly, fully to the home position on the Starjet (the Starjet ferrule and the polisher tip must be in contact) and that the ferrule has returned to its initial position.
  • Page 14 “Perio” function: use specific glycine based powder. prophy perio Connect Starjet to the turbine of the dental unit; Adjust the water flow rate on your dental unit in order to obtain a steady stream of water. It is easier to adjust the flow rate without powder;...
  • Page 15 Starjet There are two maximum levels of powder shown on the powder container: one for the bicarbonate-based powder (prophy) and the other for the glycine-based powder (perio). prophy CAUTION: When filling the powder perio container with a bicarbonate-based powder do not exceed the “prophy”...

  • Page 16: Cleaning The Powder Container

    Disconnect Starjet from the turbine of the dental unit; Unscrew the cap of the powder container and empty the powder container;...
  • Page 17 Starjet Connect Starjet to the turbine of the dental unit; By using the brush supplied and while keeping the footpedal pressed, brush the 6 holes on the diffuser in the powder container. NOTE: Pay attention to the water coming out of the Starjet.

  • Page 18: Cleaning, Disinfection And Sterilisation

    Starjet device Phase Paragraph Procedure 08.1 Preparation 08.2...

  • Page 19: Preparation

    Starjet 06.1 PreParaTION Disconnect Starjet from the turbine of the dental unit Where the PERIO cleaner terminal has been used, remove the perio subgingival terminal using the K9 wrench supplied and then proceed to dismantling (Chapter 08); NOTE: Introduce the K9 wrench exactly into the position indicated in the figure.

  • Page 20: Cleaning And Disinfecting Starjet Device

    06.2 CleaNINg aND DISINfeCTINg STarjeT DevICe The following procedure must be carried out on the Starjet device. MATERIALS NECESSARY - Clean, soft cloths with low fiber-release; - Detergent solution (pH 6-9); - Demineralised water; - Disinfectant agent (peracetic acid 2%).
  • Page 21 Starjet Dry the surface of the Starjet device with a clean, soft and low fibre release cloth; If you wish to disinfect the device, vaporize the disinfectant agent (prepared according to the manufacturer’s instructions) on a clean and soft cloth with low fiber release and clean the surface of the Starjet device.

  • Page 22: Cleaning Accessories That Can Be Sterilised

    06.3 CleaNINg aCCeSSOrIeS ThaT CaN be STerIlISeD PREPARATION CAUTION: The instructions provided The following parts of the device can be below have been validated by the sterilized: manufacturer of the medical device as ABLE to prepare a medical device for •...
  • Page 23 Starjet POLISHER TIP Free the polisher tip channel from any powder residual by using the supplied cleaning needle Ø 0,4mm for the front side and the supplied cleaning needle Ø 0,8mm for the rear side Blow compressed air into the central hole of the tip, from both ends;...
  • Page 24 Delicately brush the surface of the polisher tip under running water using the brush with soft nylon bristles; Using a syringe, inject the enzymatic detergent solution 3 times inside the cavity of the polisher tip to effectively remove the residues from the internal surface; Using a disposable syringe (25 ml vol.) inject the demineralized water into the polisher tip cavity for at least 5 times in...
  • Page 25 Starjet Delicately brush the surface of the polisher tip again using the brush with soft nylon bristles; Using a disposable syringe (25 ml vol.) inject the demineralized water into the polisher tip cavity for at least 5 times in order to eliminate any detergent residue;...
  • Page 26 During immersion in the enzymatic solution, delicately brush the surface of the K9 wrench using the brush with soft nylon bristles to eliminate all traces of visible dirt. Thoroughly clean the difficult areas; Delicately brush the surface of the K9 wrench under running water using the brush with soft nylon bristles;...
  • Page 27 Starjet CLEANING NEEDLES Place the cleaning needle horizontally in a clean container and add enzymatic detergent solution until the cleaning needle is covered completely; Let the cleaning needle soak for 10 minutes at 40°C ±2°C. This procedure reduces the amount of blood, protein and mucous present on the cleaning needle;...
  • Page 28 Place the cleaning needle in the ultrasound tank submerged by the enzymatic detergent solution at 40°C ±2°C, for at least 10 minutes; Remove the cleaning needle from the ultrasonic tank and rinse with demineralised water; Delicately brush the surface of the cleaning needle again using the brush with soft nylon bristles;...

  • Page 29: Combined Manual/Automatic Cleaning

    Starjet 06.3.2 COmbINeD maNual/auTOmaTIC CleaNINg MATERIALS NECESSARY - Enzymatic detergent (Mectron ENZYMEC, 0.8% v/v); - Water; - Container for immersion in the enzymatic liquid; - Brush with soft nylon bristles; - Disposable syringe 25 ml; - Demineralised water; - Alkaline detergent: neodisher® FA (0.2 % v/v);...
  • Page 30 (at least 30 seconds); Using a disposable syringe (25 ml vol.) inject the cold demineralized water into the polisher tip cavity for at least 5 times; Process validated by independent bodies with enzymatic detergent Enzymec (Mectron).
  • Page 31 Starjet K9 WRENCH Place the K9 wrench horizontally in a clean container and add enzymatic detergent solution until the K9 wrench is covered completely; Let the K9 wrench soak for 10 minutes at 40°C ±2°C. This procedure reduces the amount of blood, protein and mucous present on the K9 wrench;...

  • Page 32: Mechanical Cleaning

    Position the instruments in a way CAUTION: Do not place the Starjet that the water can flow through all the device in a thermal disinfector. surfaces, even internally.

  • Page 33: Automatic Cleaning

    - Water; - Metal basket; - Adaptors; - Thermal disinfector. CAUTION: Do not place the Starjet NOTE: Make sure that the accessories device in a thermal disinfector. are appropriately blocked in the basket and cannot move during washing. Any...

  • Page 34: Cleaning Verification

    06.4 CleaNINg verIfICaTION MATERIALS NECESSARY - Light source; - Magnifying glass 2.5X. Once the cleaning operations have been completed, visually inspect the polisher tips, the K9 wrench and the cleaning needle under an adequate source of light, if necessary using a magnifying glass 2.5X, paying attention to the details that could conceal dirt residue (threading, cavities, grooves) and,...

  • Page 35: Sterilisation

    The sterilization process validated by CAUTION: Perform the sterilization Mectron S.p.A., in a steam autoclave, using a water steam autoclave only. guarantees SAL 10 by setting the Do not use any other sterilization...

  • Page 36: Maintenance

    2 If the front terminal gets clogged due to the excessively hard water, it is 5 If the airway passage of the Starjet device recommended to dip it in a 2 % solution of gets clogged, use the cleaning needle hydrochloric acid for a few minutes.

  • Page 37: Disposal Modes And Precautions

    - Polisher tips, when they are worn out or wastes. broken; The Starjet must be disposed of and treated as a waste for separate collection. - Subgingival perio tip at the end of each It is up to the purchaser to hand over the treatment.

  • Page 38: Troubleshooting

    Dental unit not connected to Check the connection between the the air circuit dental unit and the air circuit The tank of the Starjet is Read point “05.2” empty Front terminal polisher Read point “05.3“ “06.1”, “06.3”, and clogged due to excessive “07.0”.

  • Page 39: Sending The Device To An Authorised Mectron Service Center

    Water/powder flow is Check the o-ring terminal cleaner irregular and/or intermittent insert (see paragraph 07.1) 10.2 SeNDINg The DevICe TO aN auThOrISeD meCTrON ServICe CeNTer In the event that technical assistance is The device must be returned properly needed on the device, contact one of the...

  • Page 40: Warranty

    Italian version will have pertinence. Texts, images, and graphics of this manual are property of Mectron S.p.A., Carasco, Italy. All rights reserved. The contents cannot be copied, distributed, changed, or made available to third parties without the written approval of...
