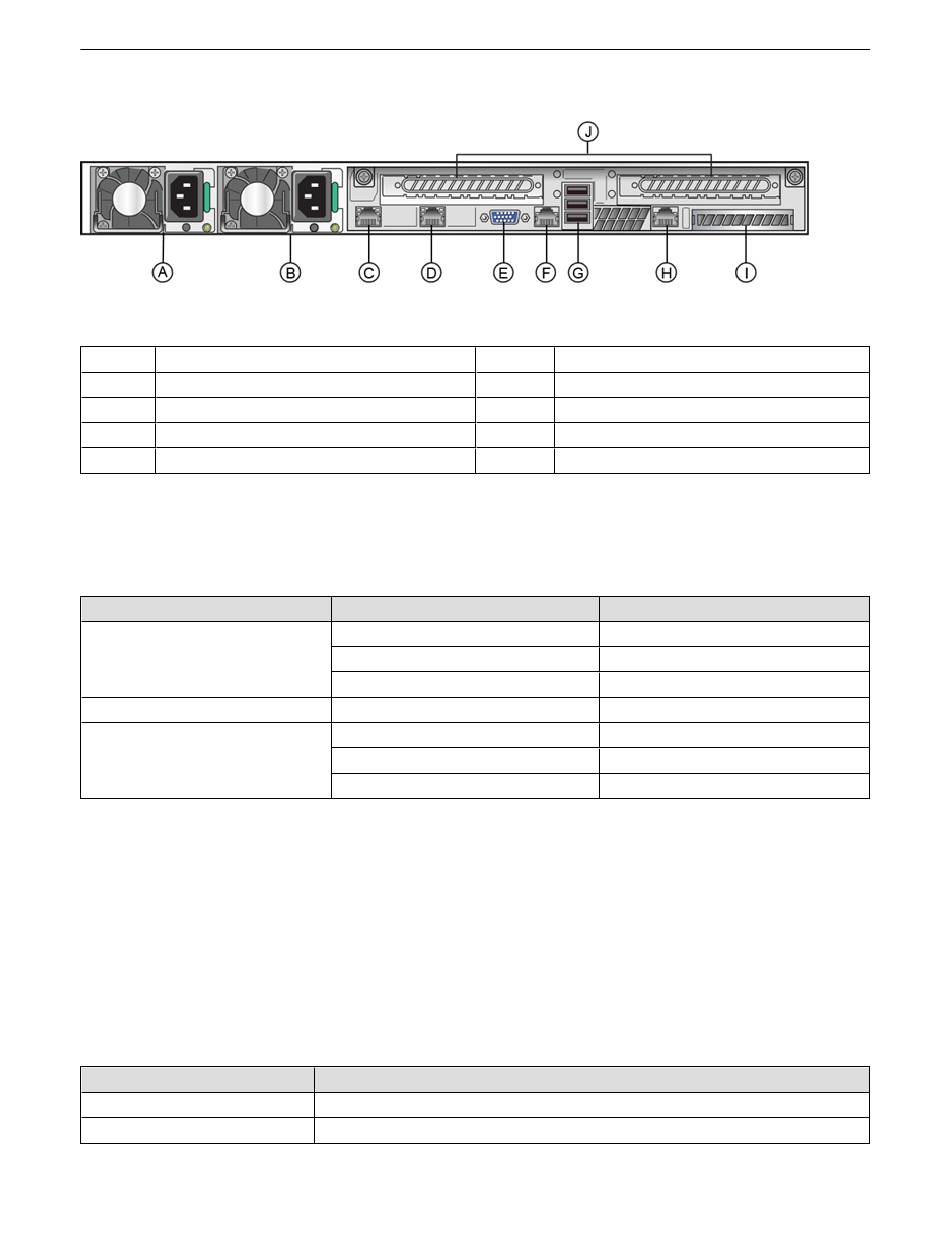

IA-A-305 Back Panel
A Power supply module #1
B Power supply module #2
C eth0
D eth1
E Video connector
The following table describes the LEDs for the RJ45 management port.
RJ45 Port LEDs (Management Port)
LED Type
Network speed (right)
Link activity (left)

Power Supply Status Indicator Patterns

The engine has two power supplies, supplying hot-pluggable power
redundancy. The system distributes the power load across both power supplies
to maximize efficiency.
Each power supply has a single bi-color LED to indicate power supply status, as
described in the following table.
Power Supply Status LED Indicator Patterns
LED Pattern
Green
Off
F
G
H
I
J
LED Pattern
Off
Amber
Green
Off
Solid green
Blinking green
Power Supply Condition
Output on and OK
No AC power to all power supplies
11 of 31
Back Panel Features
Serial port
USB 2.0 ports
Mgmt port, out of band
I/O Module Bay
Riser cards, Not used
Status Indication
10 Mbps
100 Mbps
1000 Mbps
No link
Active link
Data traffic activity
