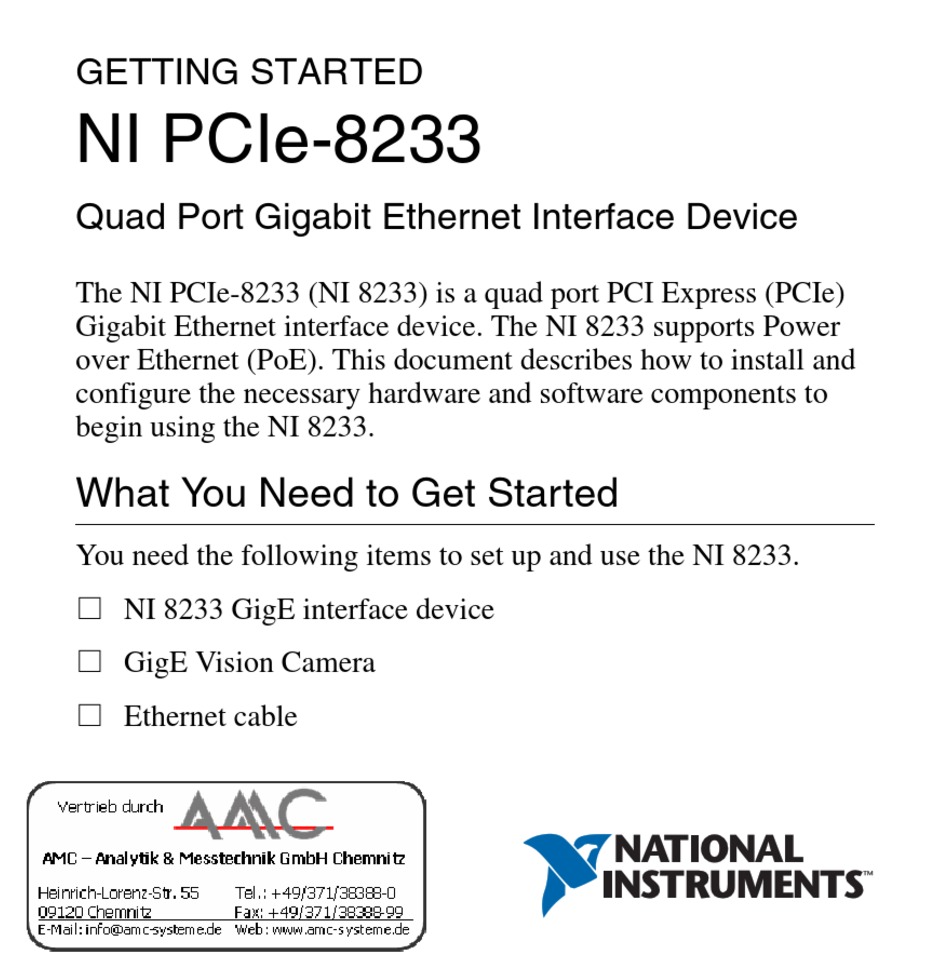

GETTING STARTED
NI PCIe-8233
Quad Port Gigabit Ethernet Interface Device
The NI PCIe-8233 (NI 8233) is a quad port PCI Express (PCIe)
Gigabit Ethernet interface device. The NI 8233 supports Power
over Ethernet (PoE). This document describes how to install and
configure the necessary hardware and software components to
begin using the NI 8233.
What You Need to Get Started
You need the following items to set up and use the NI 8233.
NI 8233 GigE interface device
GigE Vision Camera
Ethernet cable
Advertisement
Table of Contents
Related Manuals for National Instruments NI PCIe-8233
Summary of Contents for National Instruments NI PCIe-8233
- Page 1 GETTING STARTED NI PCIe-8233 Quad Port Gigabit Ethernet Interface Device The NI PCIe-8233 (NI 8233) is a quad port PCI Express (PCIe) Gigabit Ethernet interface device. The NI 8233 supports Power over Ethernet (PoE). This document describes how to install and configure the necessary hardware and software components to begin using the NI 8233.
-
Page 2: Safety Information
– LabVIEW ™ ™ – LabWindows /CVI – Microsoft Visual Studio Safety Information The following paragraphs contain important Caution safety information you must follow when installing and operating the device. 2 | ni.com | Getting Started with the NI PCIe-8233... - Page 3 Use the device only with the chassis, modules, accessories, and cables specified in the installation instructions. All covers and filler panels must be installed while operating the device. Getting Started with the NI PCIe-8233 | © National Instruments | 3...
- Page 4 Clean the device and accessories by brushing off light dust with a soft, nonmetallic brush. Remove other contaminants with a stiff, nonmetallic brush. The unit must be completely dry and free from contaminants before returning it to service. 4 | ni.com | Getting Started with the NI PCIe-8233...
- Page 5 Measurement Categories as defined in electrical safety standard IEC 61010-1. Working voltage is the highest rms value of an AC or DC voltage that can occur across any particular insulation. Getting Started with the NI PCIe-8233 | © National Instruments | 5...
- Page 6 MAINS is defined as the (hazardous live) electrical supply system to which equipment is designed to be connected for the purpose of powering the equipment. Suitably rated measuring circuits may be connected to the MAINS for measuring purposes. 6 | ni.com | Getting Started with the NI PCIe-8233...
-
Page 7: Electromagnetic Compatibility Guidelines
(EMC) stated in the product specifications. These requirements and limits provide reasonable protection against harmful interference when the product is operated in the intended operational electromagnetic environment. Getting Started with the NI PCIe-8233 | © National Instruments | 7... - Page 8 • NI Vision Builder for Automated Inspection (Vision Builder AI)—Interactive, menu-driven configuration software for developing, benchmarking, and deploying machine vision applications. You must also install NI-IMAQdx. 8 | ni.com | Getting Started with the NI PCIe-8233...
- Page 9 2. Vision Builder AI—Refer to the NI Vision Builder for Automated Inspection Readme for installation instructions. Documentation for Vision Builder AI is available by selecting Start»All Programs»National Instruments»Vision Builder AI»Documentation. Getting Started with the NI PCIe-8233 | © National Instruments | 9...
- Page 10 Release Notes for installation instructions and system requirements for the LabWindows/CVI software. Documentation for LabWindows/CVI is available by selecting Start»All Programs»National Instruments» LabWindows CVI. • Visual Studio—Refer to the Visual Studio product documentation for installation instructions. 10 | ni.com | Getting Started with the NI PCIe-8233...
- Page 11 Development Module Readme on the NI Vision Development Module installation media for system requirements and installation instructions. Documentation for the NI Vision Development Module is available by selecting Start»All Programs»National Instruments»Vision»Documentation»NI Vision. Getting Started with the NI PCIe-8233 | © National Instruments | 11...
-
Page 12: Installing The Hardware
Instruments if the device appears damaged in any way. Do not install a damaged device in the computer. Store the NI 8233 in the antistatic package when not in use. 12 | ni.com | Getting Started with the NI PCIe-8233... - Page 13 3. Touch a metal part of the computer to discharge any static electricity that might be on your clothes or body. Static electricity can damage the device. Getting Started with the NI PCIe-8233 | © National Instruments | 13...
- Page 14 8. Replace the computer cover. 9. Connect an Ethernet cable to a GigE Vision camera, then connect the camera to the NI 8233 front panel. 10. Plug in and power on the computer. 14 | ni.com | Getting Started with the NI PCIe-8233...
- Page 15 Use MAX to configure the device for acquisition. For additional information about configuring your device, refer to the Measurement & Automation Explorer Help for NI-IMAQdx by Getting Started with the NI PCIe-8233 | © National Instruments | 15...
-
Page 16: Specifications
(6.6 in. × 4.4 in.) Camera Interface....... Four RJ45 connectors Gigabit Ethernet Interface Standard ..........IEEE 802.3 10BASE-T, 100BASE-TX, 1000BASE-T Number of ports........ 4 Interface ..........RJ45 Speed..........10, 100, 1000 Mbps 16 | ni.com | Getting Started with the NI PCIe-8233... - Page 17 +3.3 V PCIe bus........ 2.4 A Operating Environment The NI 8233 is intended for indoor use only. Ambient temperature range ....0 °C to 45 °C at 40 W total PoE power Getting Started with the NI PCIe-8233 | © National Instruments | 17...
-
Page 18: Storage Environment
This product is designed to meet the requirements of the following standards of safety for electrical equipment for measurement, control, and laboratory use: • IEC 61010-1, EN 61010-1 • UL 61010-1, CSA 61010-1 18 | ni.com | Getting Started with the NI PCIe-8233... -
Page 19: Electromagnetic Compatibility
AS/NZS CISPR 11: Group 1, Class A emissions • AS/NZS CISPR 22: Class A emissions • FCC 47 CFR Part 15B: Class A emissions • ICES-001: Class A emissions Getting Started with the NI PCIe-8233 | © National Instruments | 19... - Page 20 Refer to the Declaration of Conformity (DoC) for Note this product for any additional regulatory compliance information. To obtain the DoC for this product, visit , search by model number or ni.com/certification 20 | ni.com | Getting Started with the NI PCIe-8233...
-
Page 21: Environmental Management
Our Environmental Impact web page at ni.com/environment This page contains the environmental regulations and directives with which NI complies, as well as other environmental information not included in this document. Getting Started with the NI PCIe-8233 | © National Instruments | 21... - Page 22 National Instruments WEEE initiatives, and compliance with WEEE Directive 2002/96/EC on Waste and Electronic Equipment, visit ni.com/environment/ weee National Instruments (RoHS) National Instruments RoHS (For information ni.com/environment/rohs_china about China RoHS compliance, go to ni.com/ environment/rohs_china 22 | ni.com | Getting Started with the NI PCIe-8233...
-
Page 23: Where To Go For Support
United States, create your service request at ni.com/support follow the calling instructions or dial 512 795 8248. For telephone support outside the United States, visit the Worldwide Offices Getting Started with the NI PCIe-8233 | © National Instruments | 23... - Page 24 For patents covering National Instruments products/technology, refer to the appropriate location: Help»Patents in your software, the patents.txt file on your media, or the National Instruments Patent Notice at ni.com/patents . You can find information about end-user license agreements (EULAs) and third-party legal notices in the readme file for your NI product.
