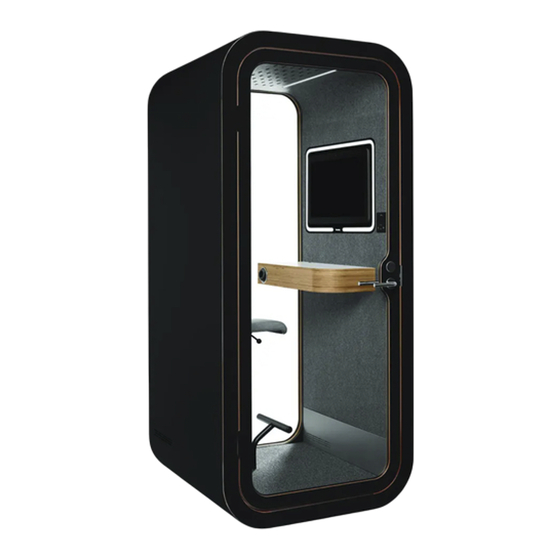

Framery O VCR
English
Installation Instructions
Version 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the O VCR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Framery O VCR

Summary of Contents for Framery O VCR

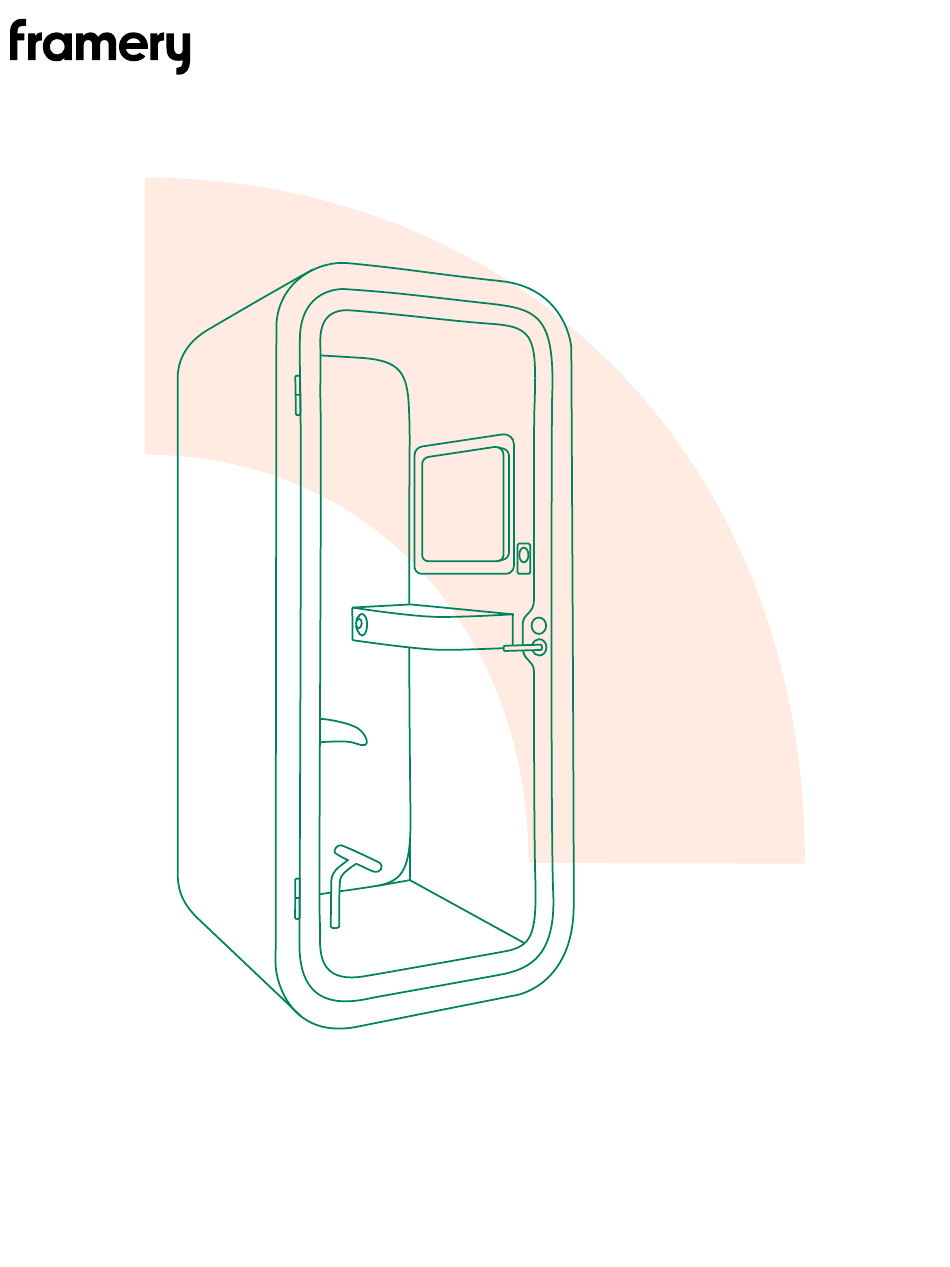

  • Page 1 Framery O VCR English Installation Instructions Version 1.0...

  • Page 3: Table Of Contents

    Contents 1 Warranty checklist................... 5 2 Safety.........................6 3 Installation requirements................8 3.1 Tools and accessories....................8 3.2 Display size......................... 9 3.3 Installation space......................9 3.4 Operating space......................10 4 Level the floor module.................. 11 5 Install the wall modules................13 5.1 Remove the wall cover panels..................13 5.2 Connect the wall modules to the floor module............15 6 Connect the roof module to the wall modules...........
  • Page 4 11 Install the glass wall..................53 11.1 Install the floor cover panels................... 57 12 Install the interior..................58 12.1 Cut the carpet......................58 12.2 Install the stool and carpet..................59 12.3 Install the carpet (no stool)..................60 13 Install the power cord from the floor............62 14 Install the power cord from the roof............63 15 Install the cover panels and body covers..........

  • Page 5: Warranty Checklist

    For the product warranty to be valid: This checklist must be filled and sent to Framery after pod installation. Take a photo/scan the filled list and send it to Framery at warranty@frameryacoustics.com. Leave the completed list on the pod's glass door.

  • Page 6: Safety

    Note: Do not place heavy objects on the floor or roof of the pod. Note: Do not attach or hang extra weight from the door. Warning: Always unplug the pod from the electrical outlet before performing any maintenance. To disconnect, remove plug from outlet. Framery O VCR Installation Instructions info@frameryacoustics.com...
  • Page 7 Installation environment The pod is intended to be used in the following conditions. • Ambient temperature: +15°C ... +30°C (59°F ... 86°F) • Humidity: max. 50% Framery O VCR Installation Instructions info@frameryacoustics.com...

  • Page 8: Installation Requirements

    3 Installation requirements 3.1 Tools and accessories Figure 1: Tools and accessories needed for installation and maintenance Note: Use a white rubber mallet to not leave marks on the body covers. Note: Use a plastic chisel. Framery O VCR Installation Instructions info@frameryacoustics.com...

  • Page 9: Display Size

    Note: Use a mild alcohol-based cleaning solution for cleaning the pod. 3.2 Display size Make sure that your display fits the display slot. Figure 2: Display slot dimensions 3.3 Installation space Make sure that you have enough installation space before you start the installation. Framery O VCR Installation Instructions info@frameryacoustics.com...

  • Page 10: Operating Space

    Figure 3: Installation space measures 3.4 Operating space Make sure the pod has enough space for the air to circulate correctly. Figure 4: Operating space measures Framery O VCR Installation Instructions info@frameryacoustics.com...

  • Page 11: Level The Floor Module

    Lay the floor module down at the intended final location. Leave approximately 0.5 m (2 ft) of empty space behind the floor module. Note: The stool mounting notch is closer to the backside of the pod. Framery O VCR Installation Instructions info@frameryacoustics.com...
  • Page 12 • On top of the walls on the right and left sides • At the edge of the floor module (on the ABS strips) Measure opposite points repeatedly and adjust the feet of the leveling screws gradually. Framery O VCR Installation Instructions info@frameryacoustics.com...

  • Page 13: Install The Wall Modules

    Place the wall modules lengthwise against a wall. Unscrew the 4x30 screws (8 pcs) and remove the cover panels (4 pcs). Set the cover panels and screws aside. Note: Make sure that the wall modules do not fall over. Framery O VCR Installation Instructions info@frameryacoustics.com...
  • Page 14 Unscrew the 4x30 screws (24 pcs) and remove the cover panels (4 pcs). Set the cover panels and screws aside. Framery O VCR Installation Instructions info@frameryacoustics.com...

  • Page 15: Connect The Wall Modules To The Floor Module

    Lift the floor module up to stand on its side. Note: Do not move the floor module away from the intended location. Note: Check that the leveling screws are past the floor board level. Framery O VCR Installation Instructions info@frameryacoustics.com...
  • Page 16 Note: Make sure that you install the blank wall module on the correct side of the floor module. The electrical channel is on the other side of the floor module. Framery O VCR Installation Instructions info@frameryacoustics.com...
  • Page 17 Note: Make sure that you install the techwall module on the correct side of the floor module. The power cord and the electrical channel are on the same side. Framery O VCR Installation Instructions info@frameryacoustics.com...
  • Page 18 Install M8x35 bolts (3 pcs) and M8 washers (3 pcs). Framery O VCR Installation Instructions info@frameryacoustics.com...

  • Page 19: Connect The Roof Module To The Wall Modules

    6 Connect the roof module to the wall modules Install the guide pins (4 pcs) to the mounting holes. Note: Make sure that the flat side of the guide pin goes inside the mounting holes of the wall modules. Framery O VCR Installation Instructions info@frameryacoustics.com...
  • Page 20 Note: Make sure that the roof module cord is in the electrical channel. Make sure that the wall module cord is not between the modules. Install M8x35 bolts (3 pcs on each side) and M8 washers (3 pcs on each side). Framery O VCR Installation Instructions info@frameryacoustics.com...
  • Page 21 Connect the cords. Note: Make sure that the roof module cord is in the electrical channel. Framery O VCR Installation Instructions info@frameryacoustics.com...

  • Page 22: Remove The Roof Cover Panels

    7 Remove the roof cover panels Unscrew the 4x30 screws (4 pcs) and remove the roof cover panels (2 pcs). Set the cover panels and screws aside. Framery O VCR Installation Instructions info@frameryacoustics.com...

  • Page 23: Check The Straightness Of The Pod

    8 Check the straightness of the pod Lift up the pod. Warning: Heavy object, risk of injury. Lifting requires 2 persons. Note: Do not lift the pod from the roof module. Framery O VCR Installation Instructions info@frameryacoustics.com...
  • Page 24 • Slightly above the floor and wall module junction on both sides • Slightly below the roof and wall module junction on both sides • On the edge of the floor module (on the ABS strips) on both sides Framery O VCR Installation Instructions info@frameryacoustics.com...
  • Page 25 If the module is tilted, adjust the leveling screws of the floor module. Note: Measure opposite points repeatedly and adjust the leveling screws gradually. Framery O VCR Installation Instructions info@frameryacoustics.com...

  • Page 26: Install The Table And Electrics

    9.1 Check the serial number Make sure that the serial number on the sticker on the bottom board of the table matches the serial number on the warranty checklist. Figure 5: Serial number on the wide table Framery O VCR Installation Instructions info@frameryacoustics.com...

  • Page 27: Install The Control Panel

    Press the panel top first into the opening so that the magnets at the back of the panel snap it into place. Note: Make sure that the cord is not pinched or damaged during the installation. Framery O VCR Installation Instructions info@frameryacoustics.com...

  • Page 28: Mount The Table To The Wall

    Remove countersunk M6x25 screws (2 pcs) from the wide table bottom board. Unscrew the 3.5x16 universal screws (2 pcs) and remove the guide plate from the back of the table. Set the plate and screws aside. Framery O VCR Installation Instructions info@frameryacoustics.com...
  • Page 29 Install the guide plate back into place with 3.5x16 universal screws (2 pcs). Note: Make sure that the cord is not damaged during the installation. Framery O VCR Installation Instructions info@frameryacoustics.com...
  • Page 30 Push the HDMI cord up the center electric pipe in the wall to the opening for the display. Guide enough of the HDMI cord out of the top of the electric pipe to stay in place until the customer provided display is installed. Framery O VCR Installation Instructions info@frameryacoustics.com...

  • Page 31: Measure The Display

    The customer provided display can be installed with or without the provided adjustment plate, depending on the display. Check the power cord needed for the display. Note: Use a 90° angle adapter if needed. Framery O VCR Installation Instructions info@frameryacoustics.com...
  • Page 32 To detach the adjustment plate from the display recess in the techwall, pull it out. Note: Pull carefully. The magnets at the back of the adjustment plate are strong. Framery O VCR Installation Instructions info@frameryacoustics.com...
  • Page 33 The adjustment plate IS needed if the VESA attachment threads are not evenly distributed above and below the horizontal center line. If the adjustment plate is needed, see Install the display with the display bracket. Framery O VCR Installation Instructions info@frameryacoustics.com...

  • Page 34: Install The Display Without The Display Bracket

    Install the magnets with M4x8 screws (4 pcs) to the standard VESA attachment threads at the back of the display. Note: Alternatively, you can use M4x16 screws (4 pcs) with 10 mm (0.4 in) spacers. Framery O VCR Installation Instructions info@frameryacoustics.com...
  • Page 35 The magnets at the back of the display snap it into place and hold it there. Note: Make sure that the cords are not damaged during the installation. Note: Make sure your hands or fingers are not caught between the display and wall. Framery O VCR Installation Instructions info@frameryacoustics.com...

  • Page 36: Install The Display With The Display Bracket

    Install the adjustment plate with the magnets to the display with M4x16 screws (4 pcs). Note: Alternatively, you can use M4x25 screws (4 pcs) with 10 mm (0.4 in) spacers. Connect the power cord and HDMI cord to the display. Framery O VCR Installation Instructions info@frameryacoustics.com...

  • Page 37: Install The Electrical Connections

    If you installed the power cord to the floor module, go to step 2. If you want to install the power cord to the roof module, pull the AC extension cord out from the floor module. Pull the cords out of the wall onto the table. Note: Four connectors are already connected. Framery O VCR Installation Instructions info@frameryacoustics.com...
  • Page 38 Connect the AC extension cord to the AC input socket of the control unit. Connect the display power cord. Framery O VCR Installation Instructions info@frameryacoustics.com...
  • Page 39 Connect the bus connector to the control unit connector. Note: Check that the DC input connector and the PIR connector are connected to the control unit. Connect the fan connector and the LED 1 connector to the control unit. Framery O VCR Installation Instructions info@frameryacoustics.com...
  • Page 40 Connect the LED 2 connector to the control unit. Fasten the table bottom board with countersunk M6x25 screws (2 pcs). Note: Make sure that the cords are not between the table boards. Framery O VCR Installation Instructions info@frameryacoustics.com...

  • Page 41: Install The Door

    Warning: Heavy object, risk of injury! Lift carefully. Support the door until securely fastened. Install the guide pins (4 pcs) to the mounting holes of the wall module. Note: Make sure that the flat side of the guide pin goes into the mounting hole. Framery O VCR Installation Instructions info@frameryacoustics.com...
  • Page 42 Warning: Make sure that the door faces the right side up according to the sticker and the lock is on the right-hand side. If you install the door incorrectly, it will fall out of the frame when opened. Framery O VCR Installation Instructions info@frameryacoustics.com...
  • Page 43 Warning: Do not crush your fingers between the door frame and the wall module or floor. Warning: Support the door until securely fastened. Support the frame and install it with M8x35 bolts (6 pcs) and M8 washers (6 pcs). Tighten the bolts by hand. Framery O VCR Installation Instructions info@frameryacoustics.com...
  • Page 44 Open the door with one half of the handle to adjust the straightness of the pod. Check the straightness of the pod and push the door frame to adjust it. Framery O VCR Installation Instructions info@frameryacoustics.com...
  • Page 45 Install the M8x35 bolts (4 pcs) and M8 washers (4 pcs) to the roof and floor modules. Note: Press the acoustic panel aside to reach the bolts. Make sure that the acoustic panel does not fold. Framery O VCR Installation Instructions info@frameryacoustics.com...

  • Page 46: Install The Door Handle

    Install the handle with the spindle attached to it into the lower mounting hole from the outside of the door. Note: Turn the screw holes on the handle to match to the ones in the door. Framery O VCR Installation Instructions info@frameryacoustics.com...
  • Page 47 Note: Turn the screw holes on the handle to correspond to the ones on the door. Note: Make sure that there is no gap between the cover plates and the door. Framery O VCR Installation Instructions info@frameryacoustics.com...
  • Page 48 In the final position, the head of the set screw is level with the handle surface. Install the upper cover plates with M4x30 screws (2 pcs). Do not overtighten. Note: Make sure that you install the smooth cover plate to the outside. Framery O VCR Installation Instructions info@frameryacoustics.com...

  • Page 49: Program The Master Code Into The Code Handle (Optional)

    Insert the batteries into the handle. Note: Make sure that the batteries are in the correct polarity. Secure the cap into position. To program the master code, hold the handle horizontally with the spindle pointing down. Framery O VCR Installation Instructions info@frameryacoustics.com...

  • Page 50: Install The Code Handle (Optional)

    The LED flashes in green to signal the activation of the master code. 10.4 Install the code handle (optional) Before installing the code handle, make sure that the screws are the correct length. Cut the screws to the appropriate length. Framery O VCR Installation Instructions info@frameryacoustics.com...
  • Page 51 Push the counterpart handle onto the spindle and attach the handles with M5x32 screws (2 pcs) from the inside. Note: Make sure that the handles are securely attached and operate smoothly. Framery O VCR Installation Instructions info@frameryacoustics.com...
  • Page 52 Note: Make sure that you install the smooth cover plate to the outside. To add up to 9 separate user codes, remove codes, or to change the master code, see the handle manufacturer's instructions. Framery O VCR Installation Instructions info@frameryacoustics.com...

  • Page 53: Install The Glass Wall

    Warning: Heavy object, risk of injury! Lift carefully. Support the glass wall until securely fastened. Install the guide pins (4 pcs) to the mounting holes of the wall module. Note: Make sure that the flat side of the guide pin goes into the mounting hole. Framery O VCR Installation Instructions info@frameryacoustics.com...
  • Page 54 Lift the glass wall as close to the pod as possible. Note: Make sure that the glass wall faces the right side up according to the sticker. Framery O VCR Installation Instructions info@frameryacoustics.com...
  • Page 55 Warning: Do not crush your fingers between the glass wall and the wall module or floor. Warning: Support the glass wall until securely fastened. Support the wall and install it with M8x35 bolts (6 pcs) and M8 washers (6 pcs). Tighten the bolts by hand. Framery O VCR Installation Instructions info@frameryacoustics.com...
  • Page 56 Install the M8x35 bolts (4 pcs) and M8 washers (4 pcs) to the roof and floor modules. Note: Press the acoustic panel aside to reach the bolts. Make sure that the acoustic panel does not fold. Framery O VCR Installation Instructions info@frameryacoustics.com...

  • Page 57: Install The Floor Cover Panels

    11.1 Install the floor cover panels Install the floor cover panels (2 pcs) with 5x60 countersunk screws (2 pcs each). Note: Place the countersunk holes upwards. Use the existing screw holes. Framery O VCR Installation Instructions info@frameryacoustics.com...

  • Page 58: Install The Interior

    12.1 Cut the carpet If you install the Tovi stool, cut open the carpet using the dashed lines underneath the carpet as reference. Note: Do not cut the carpet if you have not ordered the Tovi stool. Framery O VCR Installation Instructions info@frameryacoustics.com...

  • Page 59: Install The Stool And Carpet

    Note: Make sure that the spindle is securely inside the seat. Place the stool into the mounting notch of the floor module. Install the stool with black M8x35 countersunk screws (6 pcs). Note: Make sure that the footrest is on the table side. Framery O VCR Installation Instructions info@frameryacoustics.com...

  • Page 60: Install The Carpet (No Stool)

    Note: Make sure that the carpet is firmly in place and that there are no bumps. 12.3 Install the carpet (no stool) Place the cover plate into the stool mounting notch of the floor module. Framery O VCR Installation Instructions info@frameryacoustics.com...
  • Page 61 Slide the ends of the carpet under the wall felts. Note: Make sure that the carpet is firmly in place and there are no bumps. Framery O VCR Installation Instructions info@frameryacoustics.com...

  • Page 62: Install The Power Cord From The Floor

    If you installed the power cord from the roof, see Install the power cord from the roof. Connect the AC extension cord and the power cord. Guide the power cord down the electrical channel. Note: Guide the power cord under the strain relief. Framery O VCR Installation Instructions info@frameryacoustics.com...

  • Page 63: Install The Power Cord From The Roof

    14 Install the power cord from the roof Connect the AC extension cord and the power cord. Framery O VCR Installation Instructions info@frameryacoustics.com...
  • Page 64 Guide the power cord along the electrical channel in the roof module up to the notch. Note: Guide the power cord under the strain relief in the roof module. Note: Press the power cord carefully into the entire length of the electrical channel. Framery O VCR Installation Instructions info@frameryacoustics.com...

  • Page 65: Install The Cover Panels And Body Covers

    15 Install the cover panels and body covers 15.1 Install the wall cover panels Reinstall the wall cover panels (4 pcs) with 4x30 screws (2 pcs each). Note: Place the countersunk holes upwards. Use the existing screw holes. Framery O VCR Installation Instructions info@frameryacoustics.com...

  • Page 66: Install The Roof Cover Panels

    Note: Place the countersunk holes upwards. Use the existing screw holes. Note: If you installed the power cord to the roof module, make sure that it is in the notch and is not damaged during the cover panel installation. Framery O VCR Installation Instructions info@frameryacoustics.com...

  • Page 67: Install The Bottom Body Covers

    15.3 Install the bottom body covers Slide the left-hand side bottom body cover under the pod. Insert the body cover folds into the installation grooves under the pod. Framery O VCR Installation Instructions info@frameryacoustics.com...
  • Page 68 Note: Align the body cover to the door frame. Make sure that there are no gaps between the body cover and the door frame. Make sure that the body cover is installed evenly and aligned correctly. Framery O VCR Installation Instructions info@frameryacoustics.com...
  • Page 69 Note: If you installed the power cord to the floor module, guide it through the lead- through and support it while sliding the cover sheet into place. Insert the body cover folds into the installation grooves. Framery O VCR Installation Instructions info@frameryacoustics.com...

  • Page 70: Install The Roof Body Covers

    Make sure that the body cover is installed evenly and aligned correctly. 15.4 Install the roof body covers Set the roof body covers into place one at a time. Framery O VCR Installation Instructions info@frameryacoustics.com...
  • Page 71 Note: Align the cover to the door frame. Make sure that there are no gaps between the body cover and the door frame. Make sure that the body cover is installed evenly and aligned correctly. Framery O VCR Installation Instructions info@frameryacoustics.com...
  • Page 72 Place the upper fold of the roof body cover into the installation groove on the right-hand side of the roof. Note: If you installed the power cord to the roof module, guide the power cord out of the cut in the cover. Framery O VCR Installation Instructions info@frameryacoustics.com...
  • Page 73 Note: Align the cover to the door frame. Make sure that there are no gaps between the body cover and the door frame. Make sure that the body cover is installed evenly and aligned correctly. Framery O VCR Installation Instructions info@frameryacoustics.com...

  • Page 74: Install The Wall Body Covers

    15.5 Install the wall body covers Place the upper body cover fold against the wall module and slide it into the upper installation groove. Framery O VCR Installation Instructions info@frameryacoustics.com...
  • Page 75 Note: Make sure that there are no gaps between the body cover and the door frame. Note: Make sure that the body cover is installed evenly and aligned correctly. Repeat the steps for the other wall body cover. Framery O VCR Installation Instructions info@frameryacoustics.com...

  • Page 76: Perform Final Checks

    If the door needs to be adjusted, see Adjust the door height. 16.2 Adjust the door height Make sure that the door is vertically aligned correctly. If the door is not in the middle of the frame, adjust it. Framery O VCR Installation Instructions info@frameryacoustics.com...
  • Page 77 Remove the caps from the hinges. Open the door and loosen the set screws. Close the door. Framery O VCR Installation Instructions info@frameryacoustics.com...
  • Page 78 Note: After the initial installation, the door normally does not have to be lowered, but raised. Adjust the height setting of the lower hinge accordingly so that the load on both hinges is the same. Turn clockwise to raise and counter-clockwise to lower the setting. Framery O VCR Installation Instructions info@frameryacoustics.com...
  • Page 79 If the flashlight shines through the door seams, adjust the door. Repeat steps 4–6 if needed. Close the door. 10. Open the door and tighten the set screws when the adjustment is complete. Note: Make sure that both hinges have the same height setting. Framery O VCR Installation Instructions info@frameryacoustics.com...

  • Page 80: Finish The Installation

    11. Install the caps. 16.3 Finish the installation Clean the outer and inner surfaces with a mild alcohol-based cleaning solution and a lint- free cloth. Framery O VCR Installation Instructions info@frameryacoustics.com...
  • Page 81 Connect the power cord. Framery O VCR Installation Instructions info@frameryacoustics.com...
  • Page 82 Fill out the warranty checklist and send it to Framery. Note: The warranty is only valid with the filled-out warranty checklist. Framery O VCR Installation Instructions info@frameryacoustics.com...
  • Page 84 Framery O VCR Installation Instructions Patamäenkatu 7 33900 Tampere FINLAND VAT: FI 23527139...
