aidapt VR165 Fixing And Maintenance Instructions page 3

Please read the following installation instructions carefully:
1. Remove all contents from the box and place the assembled base on a level
floor.

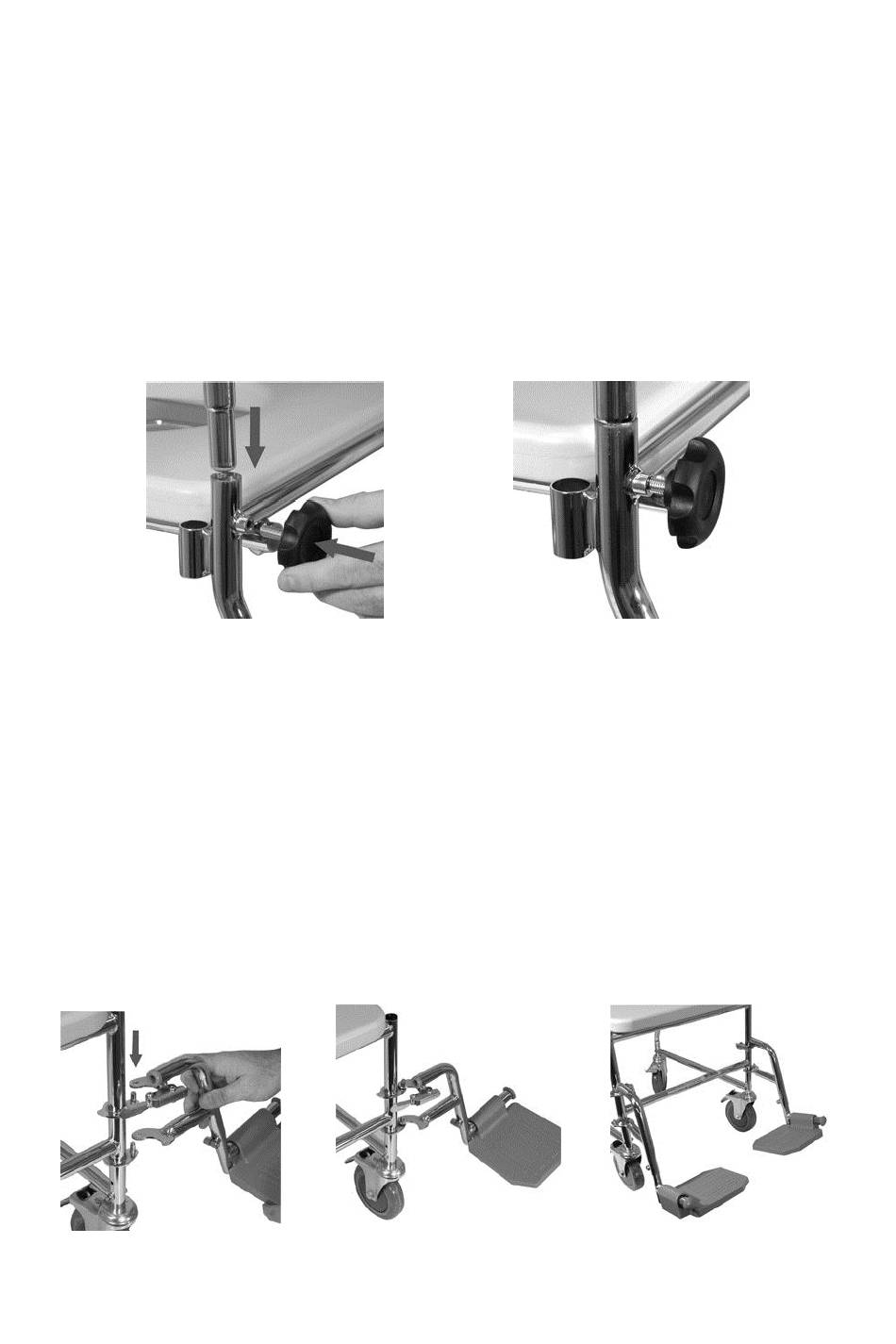

2. At the rear of the commode you will see two black threaded wheel nuts; undo
the wheel nuts so that the locking holes are clear (Fig. 1).
3. Place the two back legs into the locating holes on the back edge of the
commode frame (Fig. 2).
4. Secure the back by turning the black lock nuts until you feel the nut biting
against the back leg (Fig. 2).
5. Do not over tighten.
6. Do not use tools as it is only necessary to have the back secured finger tight.
7. Ensure cable leads are firmly in place from the actuators to the battery pack
and the handset is securely pushed home in the battery pack.
FOOTRESTS
Footrests are supplied separately to the main commode. Please examine your
footrests for any visible damage before use. If you see any damage or suspect a fault,
please contact your supplier immediately.
In this case, please do not use your product as it may compromise your safety.
1. Remove the commode footrests from their packaging
2. You will see 2 retaining lugs on each of the front legs of the commode main
frame about 150 mm high from the castor (Fig. 3).
Take the footrests and align the holes in the inverted 'U' section with the lugs
3.
and lower down into place (Fig. 4).
4. Rotate the footrests towards the commode so that they clip into place (Fig. 5).
Fig. 3
Fixing and Maintenance Instructions
Fig. 1
Fig. 4
3
Fig. 2
Fig. 5
Ver. 1 10/2013 (2668)
