Citrix NetScaler SDX 14040-40S, SDX 14060-40S, SDX
14080-40S, SDX 14100-40S
May 0 2, 20 17
T he Citrix NetScaler SDX 14040-40S/14060-40S/14080-40S/14100-40S are 2U appliances. Each model has two 6-core
processors and 64 gigabytes (GB) of memory and four 40GE QSFP+ ports and eight 10GE SFP+(4x 40GE QSFP+; 8x 10GE
SFP+).
Note: For information about NetScaler SDX hardware and component compatibility matrix, see
us/sdx/11/sdx-ag-supported-versions-ref.html.
T he following figure shows the front panel of the SDX 14040-40S/14060-40S/14080-40S/14100-40S (4x 40GE QSFP+; 8x
10GE SFP+) appliance.

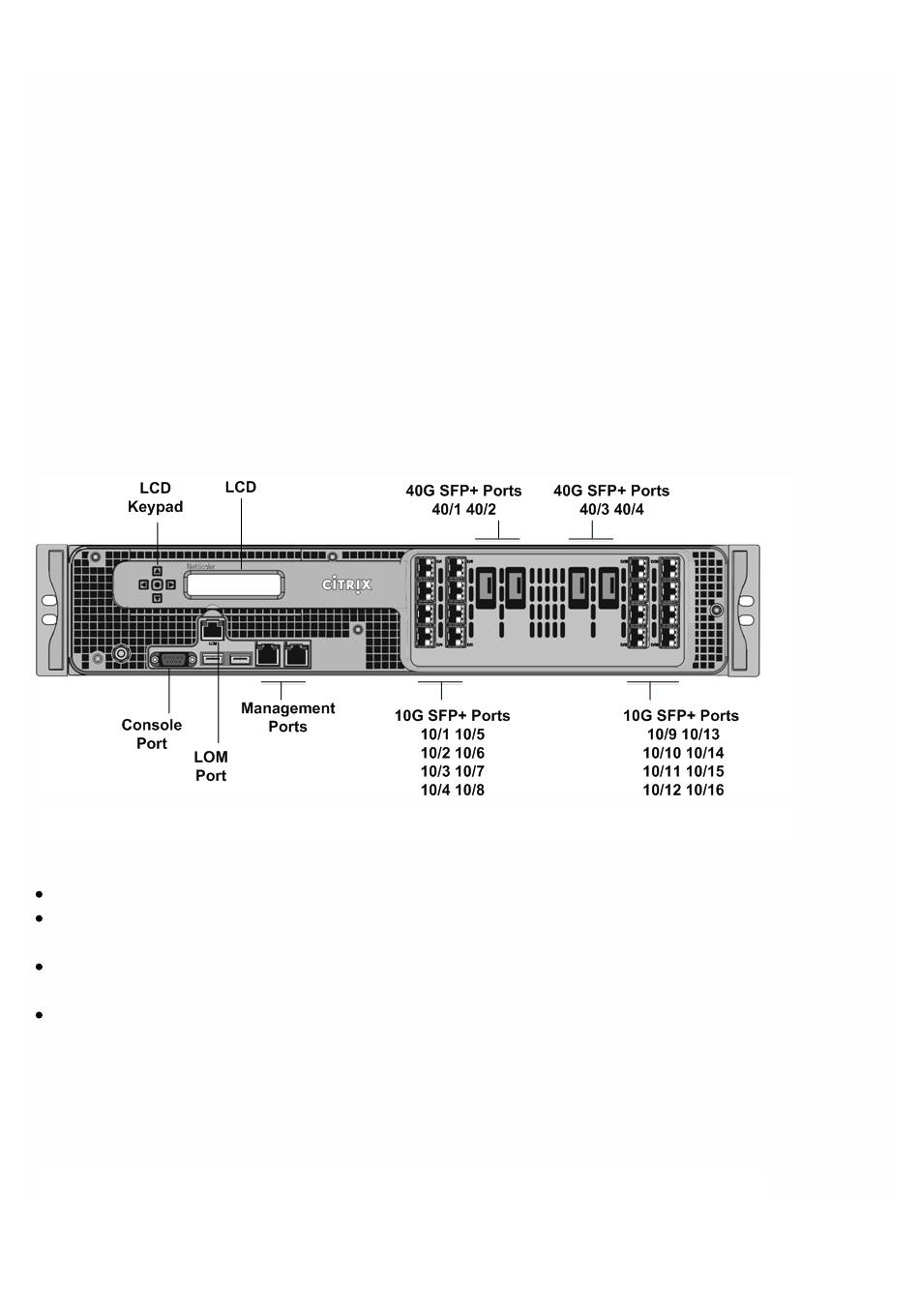

F igure 1. Citrix NetScaler SDX 14040-40S/14060-40S/14080-40S/14100-40S front panel F igure 1
T he NetScaler SDX 14040-40S/14060-40S/14080-40S/14100-40S appliances have the following ports:
RS232 serial Console Port.
10/100Base-T copper Ethernet Port (RJ45), also called the LOM port. You can use this port to remotely monitor and
manage the appliance independently of the NetScaler software.
T wo 10/100/1000Base-T copper Ethernet Management Ports (RJ45), numbered 0/1 and 0/2 from left to right. T hese
ports are used to connect directly to the appliance for system administration functions.
Network ports: four 40GE QSFP+ ports and eight 10GE SFP+(4x 40GE QSFP+; 8x 10GE SFP+).
Note: T he 10G SFP+ ports on these appliances support copper 1G SFP transceivers.
T he following figure shows the back panel of the SDX 14020/14030/14040/14060/14080/ 14100 appliance.
Figure 2. Citrix NetScaler SDX 14040-40S/14060-40S/14080-40S/14100-40S back panel
