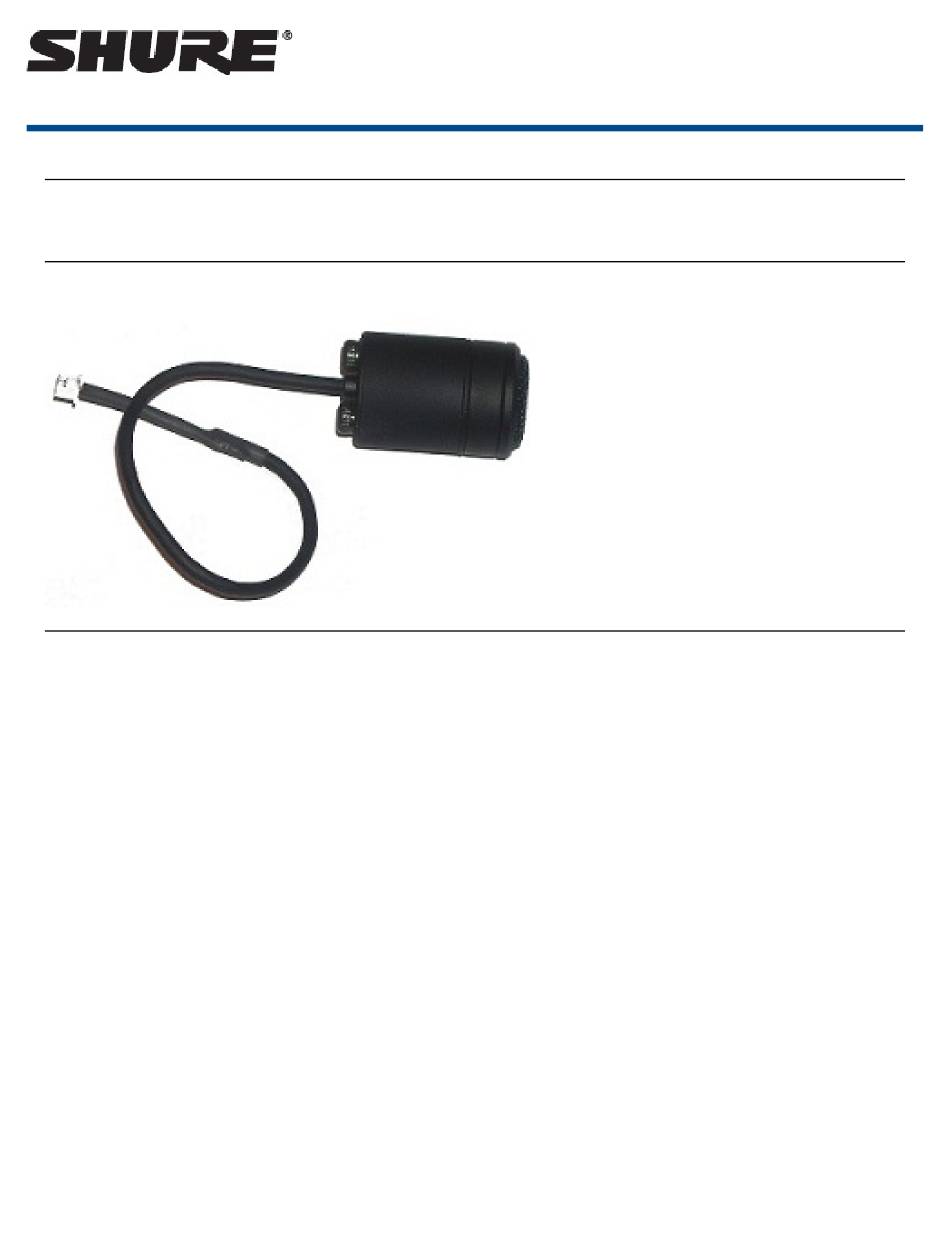

BM6620 -- Boundary Microphones
BM 6620 Boundary Microphone
Important Safeguards
1. Read these instructions - All the safety and operating instructions should be read before the apparatus or
system is operated.
2. Keep these instructions - The important safety instructions and operating instructions should be retained for
future reference.
3. Follow all warnings - All warnings on the apparatus and in the operating instructions should be adhered to.
4. Follow all instructions - All instructions for installation or use/operating should be followed.
5. Do not use this apparatus near water - Do not use this apparatus in a water or moistures environment - for
example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, near a swimming pool, in
an unprotected outdoor installation, or any area which is classified as a wet location.
6. Warning: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture
and no objects filled with liquids, such as vases, should be placed on this apparatus.
7. Clean only with dry cloth - Unplug the apparatus from the outlet before cleaning. Do not use liquid cleaners
or aerosol cleaners.
8. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions -
Openings in the enclosure, if any, are provided for ventilation and to ensure reliable operation of the apparatus
and to protect it from overheating. These openings must not be blocked or covered. This apparatus should not
be placed in a built-in installation unless proper ventilation is provided or the manufacturer's instructions have
been adhered to.
9. Do not install near any heat sources such as radiators, heat registers, stoves, air ducts, or other appa­
ratus (including amplifiers) that produce heat.
1/12

Advertisement

loading
Need help?

Need help?

Do you have a question about the BM 6620 and is the answer not in the manual?

Questions and answers

Related Manuals for Shure BM 6620

Summary of Contents for Shure BM 6620

  • Page 1 BM6620 -- Boundary Microphones BM 6620 Boundary Microphone Important Safeguards 1. Read these instructions - All the safety and operating instructions should be read before the apparatus or system is operated. 2. Keep these instructions - The important safety instructions and operating instructions should be retained for future reference.
  • Page 2 Shure Incorporated 10. Do not install the unit in a place exposed to direct sunlight, excessive dust or humidity, mechanical vi­ bration or shock . 11. To avoid moisture condensations do not install the unit where the temperature may rise rapidly.

  • Page 3: Note For Power Connections

    Shure Incorporated Labels “Lightning Flash Symbol” with the lightning flash with arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of un-insulated "dangerous voltage" with- in the product enclosure that may be of sufficient magnitude to constitute a risk of shock to persons.

  • Page 4: Warranty

    DIS DCS 6000 Digital Conference System. The BM 6620 is available for retrofit in the standard flush-mounted units FC 602xF and FD 612xF by replacing the XLR socket with the boundary microphone in the plastic adaptor. The molex mini connector fits with the micro- phone connector on the PCB.
  • Page 5 It can also be custom ordered for use with other FC/FD and FC/FD 6xxxF units and delivered already mounted in the units. The BM 6620 is designed for sound reinforcement, professional recording and teleconferencing. It features a RF shield that protects the microphone from RF interference.
  • Page 6 Shure Incorporated Step 2: Remove the XLR. Step 3: Turn over the XLR. Undo and remove the two T8 torx screws and the 3mm Allen bolt. 6/12...
  • Page 7 Shure Incorporated Step 4: Separate the connector section from the XLR chassis. Step 5: Remove the plastic "lock" insert. 7/12...
  • Page 8 Shure Incorporated Step 6: Put the XLR chassis back onto the front plate. Step 7: Fasten the XLR chassis to the front plate with the 3 M3 nuts. 8/12...

  • Page 9: Specifications

    Shure Incorporated Step 8: Now insert the boundary mic into the sleeve of the XLR chassis and then tighten the 3 Allen screws on the bottom of the mic; this will cause the mic's rubber sleeve to expand into the XLR chassis and hold it in place.
  • Page 10 Shure Incorporated Dynamic Range 112 dB, 1 kHz at maximum SPL Connectors Connectors Molex mini connector Mechanical Mounting Type Fixed in DIS DCS 6000 flush mounted units Dimensions (L x Dia.) 181.5 x 19 mm Net Weight 63 g (2.22 oz.)
  • Page 11 Shure Incorporated Old name New name F/UTP U/FTP U/UTP Important: Use only F/UTP or U/FTP (shielded) cables and shielded RJ45 connectors and not U/UTP cable, which are unshielded. How to wire a Cat5e (EIA 568-B) Cable: Function Connector #1 Connector #2...
  • Page 12 Shure Incorporated Note: Cat6 and Cat7 cables can normally only be terminated in sockets (female) and not in cable plugs. Cat6 and Cat7 can only be used for longer cable draws terminating in wall outlets or patch panels. Analog out (XLR3 male)
