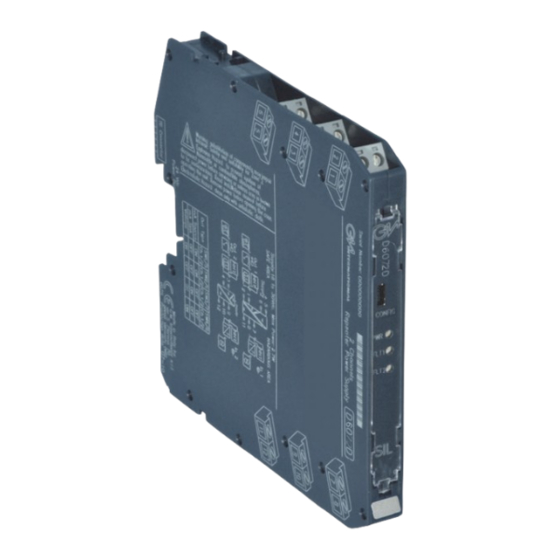

D6072S - D6072D
INSTRUCTION MANUAL
SIL 2 Multifunction Temperature Converter
DIN-Rail and Termination Board
Models D6072S, D6072D
D6072 - SIL 2 Multifunction Temperature Converter
G.M. International ISM0216-5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D6072S and is the answer not in the manual?

Questions and answers

Summary of Contents for GMI D6072S

  • Page 1 D6072S - D6072D INSTRUCTION MANUAL SIL 2 Multifunction Temperature Converter DIN-Rail and Termination Board Models D6072S, D6072D D6072 - SIL 2 Multifunction Temperature Converter G.M. International ISM0216-5...
  • Page 2: Technical Data

    Output: voltage free SPST photoMOS: 100 mA, 60 Vdc (≤ 1 V voltage drop). Performance: Ref. Conditions 24 V supply, 250 Ω load, 23 ± 1 °C ambient temperature, slow integration mode, 4-wires (for D6072S) or 3-wires (for D6072D) configuration for RTD.
  • Page 3: Ordering Information

    D6072D: +Input Ch1 for thermocouple TC or for 3 wire RTD or potentiometer -Output Ch1 (sink current mode) D6072S: -Input for thermocouple TC or for 2, 3, 4 wire RTD or potentiometer D6072S, D6072D (Ch1): -Output Ch1 (source current mode) or...
  • Page 4: Function Diagram

    Function Diagram SAFE AREA, ZONE 2 GROUP IIC T4, NON HAZARDOUS LOCATIONS, CLASS I, DIVISION 2, GROUPS A, B, C, D T-Code T4 MODEL D6072D In 1 Supply 24 Vdc TC + 2-3 wires Out 1 (SIL 2) ext. comp. Pot.
  • Page 5 Out 2 (SIL 2) RTD for Cold Junction Compensation In 2 Termination Modbus RS485 Power and board Fault Bus connector MODEL D6072S 2-3-4 wires Supply 24 Vdc Pot. RTD / Resistance TC + ext. comp. Source I Sink I TC / mV...
  • Page 6: Operation

    Warning D6072 series are isolated apparatus installed into standard EN/IEC60715 TH 35 DIN‑Rail located in Safe Area/Non Hazardous Locations or Zone 2, Group IIC T4 or Class I, Division 2, Group A, B, C, D, T4 Hazardous Area within the specified operating temperature limits Tamb ‑40 to +70 °C. D6072 series must be installed, operated and maintained only by qualified personnel, in accordance to the relevant national/international installation standards (e.g.
  • Page 7: Input Specifications

    -500 to 500 -500 to 500 ≤ ±20 Notes: RTD/resistance accuracy shown in 4-wires (for D6072S) or 3-wires (for D6072D) configuration, in slow acquisition mode. TC/mV Accuracy shown in slow acquisition mode. G.M. International ISM0216-5 D6072 - SIL 2 Multifunction Temperature Converter...
  • Page 8: Supported Modbus Functions

    Addr. Description Rights Type Supported Modbus functions: 1602 Ch2: cold junction resistance value [mOhm] SINT32 Code Name Notes 1604 Ch2: sensor temperature [0.1°C] SINT32 read holding registers reads a stream of words from memory 1606 Ch2: cold junction temperature [0.1°C] SINT32 read input registers reads a stream of words from memory...
  • Page 9 Modbus parameters details: thermocouple A3 thermocouple B thermocouple C *1 Command List thermocouple D Bit pos. Value Description thermocouple E 0..3 full eeprom write thermocouple J thermocouple K *2 Fault Mask thermocouple L Bit pos. Value Description thermocouple LR 0..0 no internal/hardware fault thermocouple N internal/hardware fault...
