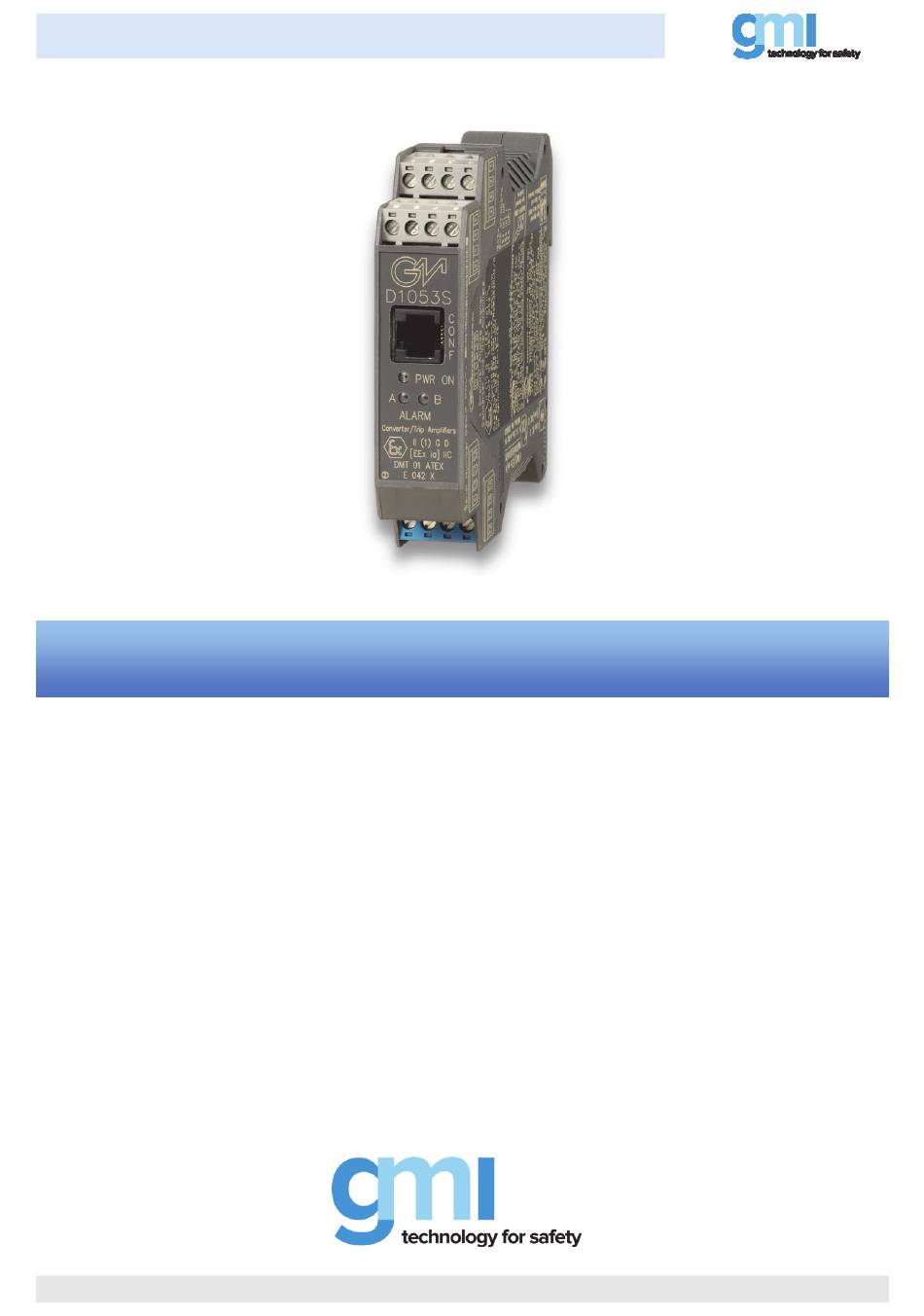

- Page 1 D1053S INSTRUCTION MANUAL SIL 2 Analog Signal Converter and Trip Amplifiers Din-Rail Model D1053S D1053 - SIL 2 Analog Signal Converter and Trip Amplifiers ISM0016-13...
-
Page 2: Technical Data
Characteristics General Description: The single channel DIN Rail Analog Signal Converter and Trip Amplifier D1053S accepts a voltage or current input from externally powered transmitters, located in Hazardous Area, and converts, with isolation, the signal to drive a Safe Area load. Output signal can be direct or reverse. Two independent Alarm Trip Amplifiers are also provided. -
Page 3: Terminal Block Connections
Ordering information Model: D1053S Power Bus enclosure Operating parameters are programmable by the GM Pocket Portable Configurator PPC1090 or via RS-232 serial line with PPC1092 Adapter and SWC1090 Configurator software. If the parameters are provided with the purchasing order the unit will be configured accordingly, otherwise the unit will be supplied with default parameters. - Page 4 Parameters Table In the system safety analysis, always check the Hazardous Area/Hazardous Locations devices to conform with the related system documentation, if the device is Intrinsically Safe check its suitability for the Hazardous Area/Hazardous Locations and gas group encountered and that its maximum allowable voltage, current, power (Ui/Vmax, Ii/Imax, Pi/Pi) are not exceeded by the safety parameters (Uo/Voc, Io/Isc, Po/Po) of the D1053 Associated Apparatus connected to it.
-
Page 5: Function Diagram
CLASS II, DIVISION 1, GROUPS E, F, G, CLASS III, DIVISION 1, GROUPS A, B, C, D T-Code T4, CLASS I, ZONE 2, GROUP IIC T4 CLASS I, ZONE 0, GROUP IIC MODEL D1053S Supply 24 Vdc Source I Source V... -
Page 6: Operation
Warning D1053 is an isolated Intrinsically Safe Associated Apparatus installed into standard EN50022 T35 DIN Rail located in Safe Area/ Non Hazardous Locations or Zone 2, Group IIC, Temperature Classification T4, Class I, Division 2, Groups A, B, C, D, Temperature Code T4 and Class I, Zone 2, Group IIC, IIB, IIA Temperature Code T4 Hazardous Area/Hazardous Locations (according to EN/IEC60079-15, FM Class No. -
Page 7: Installation
Installation D1053 is an analog signal converter and trip amplifiers housed in a plastic enclosure suitable for installation on T35 DIN Rail according to EN50022. D1053 unit can be mounted with any orientation over the entire ambient temperature range, see section “Installation in Cabinet” and "Installation of Electronic Equipments in Cabinet" Instruction Manual D1000 series for detailed instructions. -
Page 8: Menu Item Description
D1053S [1 Level Menu] Displays Model D1053S single channel analog signal converter and trip amplifiers. Press “Enter” key to second level menu. [2 Level Menu] Displays the parameters configuration menu. Press “Enter” key to configure the functional parameters, press the “Select” key to the next menu level item or “Up”... - Page 9 Type [4 Level Menu] Displays the alarm type (A or B) configuration. Press “Enter” to set the alarm condition, press the “Select” key to the next menu level item or “Up” key to return to third level. If you pressed “Enter” key, you can choose between 5 different alarm conditions; press “Select” key to change the type and then the “Enter” key to confirm the choice. The condition types are: no alarm detection, the relay output is always in normal condition high alarm condition, the relay output change status when an alarm condition is detected (input variable goes above the set value)
