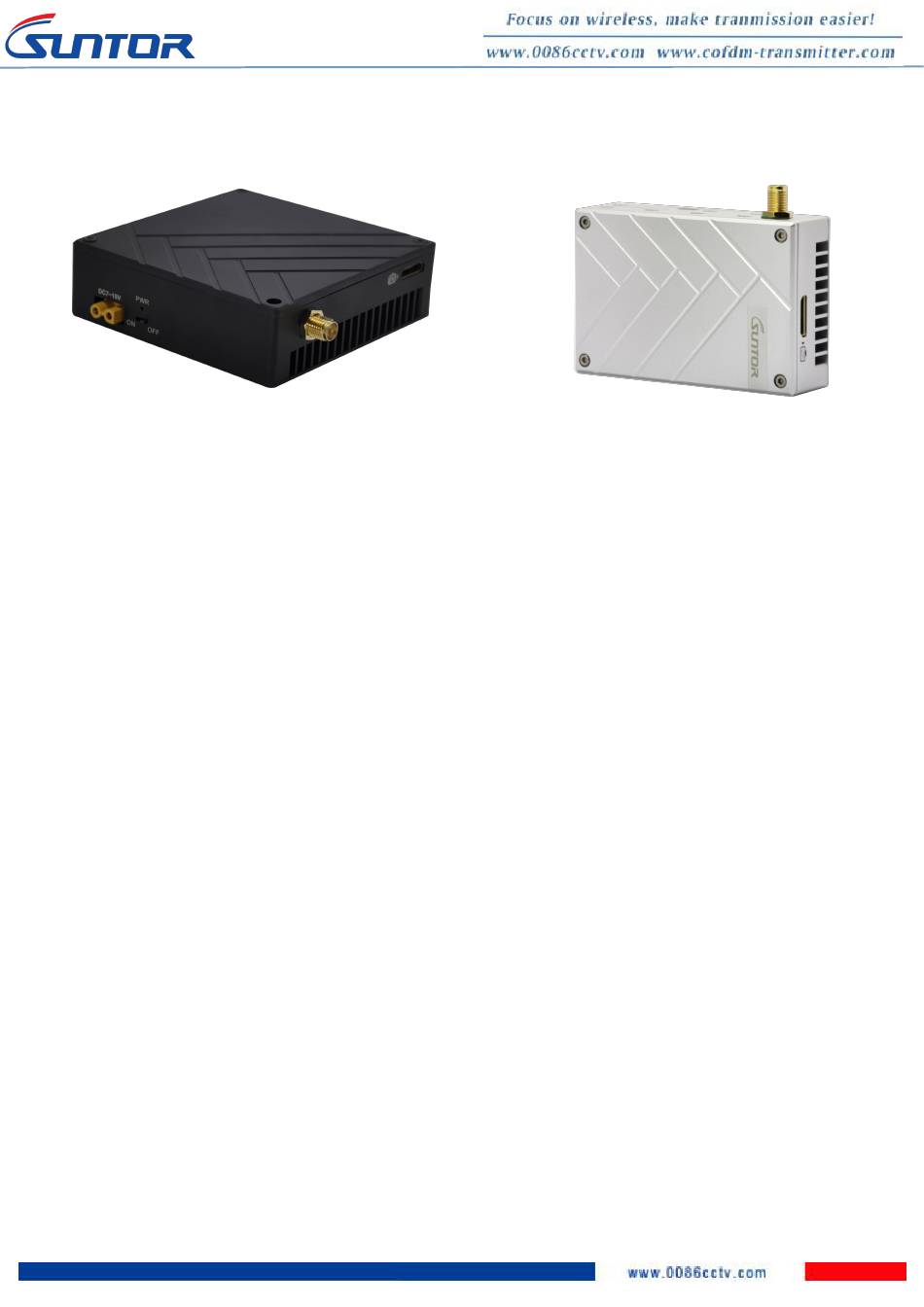

ST30HPT User Manual
1st
RX on Ground
SUNTOR ELECTRONICS CO., LIMITED
V2.0
Advertisement
Table of Contents
Related Manuals for Suntor ST30HPT
Summary of Contents for Suntor ST30HPT
-
Page 1: Table Of Contents
ST30HPT User Manual TX on Board RX on Ground Contents I. Disclaimer....................................2nd II. Precautions for integration..............................2nd III. List of in-box items................................3rd IV. Interface Definition................................5th 1. TX Interface Definition..............................5th 2. RX Interface Definition..............................6th V. Operating Instructions & Steps..............................7th VI. Antenna Installation................................9th 1. -
Page 2: Disclaimer
Antennas on board should be kept away from other radio antennas to avoid electromagnetic noise and interference. We recommend to make full use of data and video transmitting function of ST30HPT to minimize the radio devices quantity on board. -
Page 3: List Of In-Box Items
14) Adjust the Futaba controller into French mode as following steps: 15) [LINKAGE MENU]→FRQUENCY→ RTN b→ [AREA]→[FRANCE] Or connect ST30HPT S1 serial port with trainer interface on back side of Futaba by TTL cable. And set the Futaba RF as OFF. Through the S1 port uplink the PPM/SBUS signal. - Page 4 On board antenna x1 Ground antenna x1 DC power cable x2 TTL cable *2 HDMI video cable x2 Network cable x1 TTL to RS232 cable x2(Optional) USB TTL serial port x1 SMA Cable(Copper wire tinned shield semi-soft line) x2 TPalyer Key USB 2.0 Key...
-
Page 5: Interface Definition
IV. Interface Definition 1. TX Interface Definition 1.1. Power Interface Power on/off: Pull - type switch Power Connector: XT30PW-F(Female) Power Cable: One end XT30PW(Male), the other end DC(female) 1.2. S1 Serial Port: 5P GH with lock socket(GH 1.25mm, we only use 4P) GH 5P Signal Definition 3.3V... -
Page 6: Rx Interface Definition
1.4. RS232 RS232: 3p GH with lock socket(GH 1.25mm) GH 3P Signal Definition 1.5. S2 Interface: EZH 4P 1.5mm 1.6. ETH：EZH 4P 1.5mm Ethernet Signal Definition 2. RX Interface Definition 2.1. Power Interface Power on/off: Pull - type switch Power Connector: XT30PW-F(Female) Power Cable: One end XT30PW(Male), the other end DC(female) Definition... -
Page 7: Operating Instructions & Steps
2.2. RF and S1 Serial Port RF: Standard SMA to connect with antenna or feeder cable S1: SH 1.0mm 5P SH 5P Definition 3.3V 2.3. HDMI Interface HDMI Interface: Mini HDMI (Port with camera Marker is video input, Port with display marker is video output) 2.4. - Page 8 1. Make TX and RX and accessories ready. Besides the whole equipment we supply, you also need to make sure the video source, display and power ready before operating. 2. Connection Make the power cable, HDMI Cable, Ethernet cable, serial port cable and antenna in good connection.
-
Page 9: Antenna Installation
RX will appear image stuck or mosaic. 2. Fixed Wing UAV Using SMA metal shielded semi-flexible blue feeder cable provided by SUNTOR to connect the TX SMA port with antenna. The antenna needs to be mounted vertically downwards. -
Page 10: Software Operation
7.1. Two ways for changing the parameters The parameters can be changed by software SUNTOR supplied such as bandwidth, code stream and so on. Two windows for device on board and ground station can be operated at the same time to do monitoring or setting. The SNR (db) / RSSI (dbm) will be updated in real time. -
Page 11: How To Use The Software
Solution 2. Make sure communication between TX and RX is successful, connect TX with PC to changing another one RX parameters by input its IP address firstly. After changing finsh, the communication will fail. Becasue the parameters of TX and RX are different now. Secondly, change the TX parameters. After the changing is ok, the communication will be successful again. -
Page 12: Rf Configuration
7.2.2. RF Configuration Take TX as a sample, In RF Part, you can modify six parameters listed in the following picture: TX Rate, TX Power, Channel Bandwidth, Channel Frequency, Wireless Distance, TX-RX as the follow pic. TX Rate (Default: QPSK FEC 1/2) This setting determines the modulation type and rate that the data will be wirelessly transferred. - Page 13 Channel-Frequency (Default: 2479Mhz) 2402 - 2482 (1MHz BW, CH 1-81) 2402 - 2482 (2MHz BW, CH 1-81) 2405 - 2479 (4MHz BW, CH 4-78) 2407 - 2477 (8MHz BW, CH 6-76) Wireless Distance (Default: e.g.,ST11HPT 10km) The Wireless Distance parameter allows a user to set the expected distance that the wireless signal needs to travel.
-
Page 14: Rs1 Configuration
TX Power(Default: 29dbm) This setting establishes the transmit power level which will be presented to the antenna connector of the TDD_COFDM. Unless required, the Tx Power should not be set into maximum, but rather for the minimum value required to maintain an adequate system fade margin. 7.2.3. -
Page 15: Rs2 Configuration
Data Format (Default: 8N1) This setting determines the format of the data on the serial port.The default is 8 data bits, No parity, and 1 Stop bit. 7.2.4. RS2 Configuration This setting determines which protocol the serial server will use to transmit serial port data over the TDD-COFDM network. -
Page 16: Rf New Net Configuration
For example, if you want to change the master’s IP address to “192.168.55”. Please do as the following steps. IP Set : 192.168.55.5 IP Mask Set: 255.255.255.0 IP Gateway Set: 192.168.55.1 Then click the IP NEW NETWORK button. Attention! When you have changed the IP address ,you should correct another device ‘s “Remote IP Addr”...
