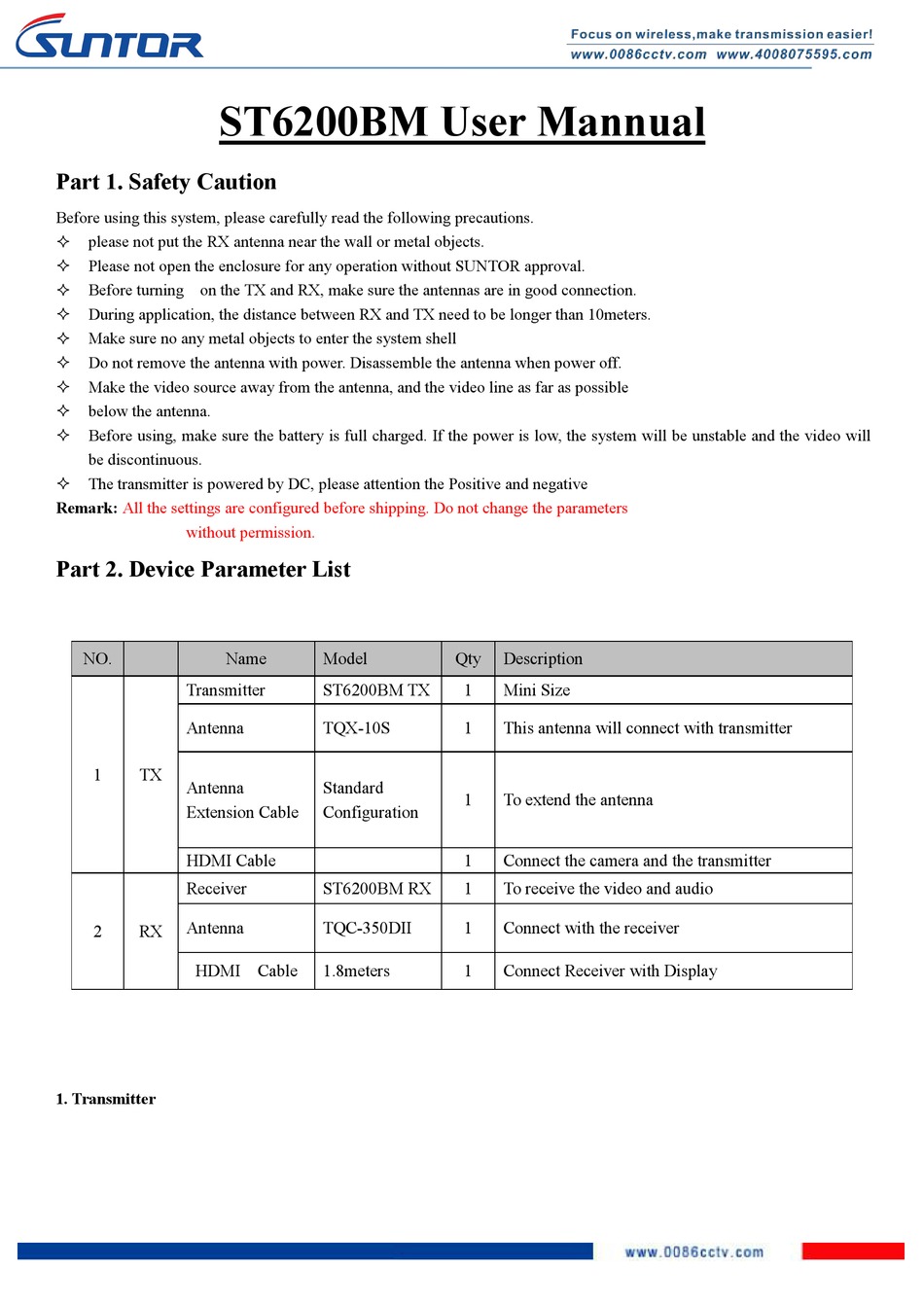

Suntor ST6200BM User Mannual

ST6200BM User Mannual
Part 1. Safety Caution
Before using this system, please carefully read the following precautions.
please not put the RX antenna near the wall or metal objects.

Please not open the enclosure for any operation without SUNTOR approval.

Before turning on the TX and RX, make sure the antennas are in good connection.

During application, the distance between RX and TX need to be longer than 10meters.

Make sure no any metal objects to enter the system shell

Do not remove the antenna with power. Disassemble the antenna when power off.

Make the video source away from the antenna, and the video line as far as possible

below the antenna.

Before using, make sure the battery is full charged. If the power is low, the system will be unstable and the video will

be discontinuous.
The transmitter is powered by DC, please attention the Positive and negative

Remark: All the settings are configured before shipping. Do not change the parameters
without permission.
Part 2. Device Parameter List
NO. Name

Transmitter

Antenna
1 TX
Antenna
Extension Cable
HDMI Cable
Receiver
Antenna
2 RX
HDMI Cable
1. Transmitter
Model Qty
ST6200BM TX 1
TQX-10S 1
Standard
1
Configuration
1
ST6200BM RX 1
TQC-350DII 1
1.8meters 1
Description
Mini Size
This antenna will connect with transmitter
To extend the antenna
Connect the camera and the transmitter
To receive the video and audio
Connect with the receiver
Connect Receiver with Display
