- Page 1 ST30NMT User Manual...
-
Page 2: Table Of Contents
Contents Ⅰ、 Product Appearance ............................. 3 Ⅱ、Product Intro ................................3 Ⅲ、Equipment Install ..............................4 3.1 Interfaces Describe ............................3.2 Basic Parameters ..............................5 3.3 Cautions ................................Ⅳ、Equipment Debug ..............................6 4.1 Prepare of Debug ............................... 4.2 Equipment Login ..............................4.3 Set Central Node/ Access Node ........................4.4 Modify IP Address .............................. -
Page 3: Ⅰ、Product Appearance

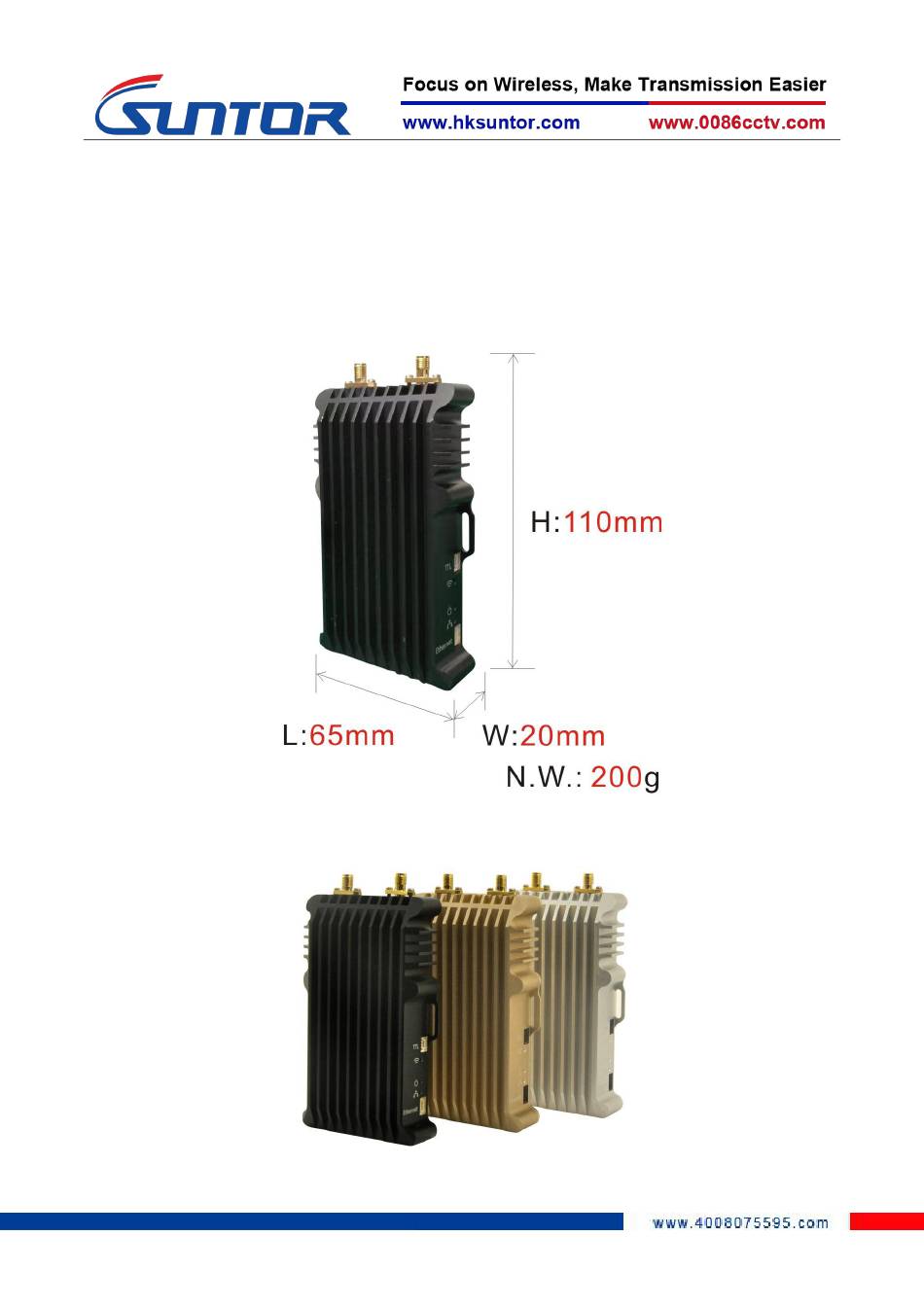

Ⅰ、Product Appearance Ⅱ、Product Intro The ST15MPT UAV wireless transmission link is an Ad-hoc network device, it's good performance in NLOS transmission. The device wireless module adopt Qualcomm chip and two-frequency design, it support 1.4G（1427.9-1447.9MHz）and 800M （806-826MHz）. When it's in 1.4G frequency, it can realize a high throughput Ad-hoc network transmission in a long LOS distance. -
Page 4: Ⅲ、Equipment Install
Unmanned car, Airship, Target drone, Powered parachute, Robot and other fields for video signal transmission, police video forensics, emergency monitor and rescue sites. Ⅲ、Equipment Install 3.1 Interfaces Describe Item Function describe Power DC 12V, two ping Antenna Connector TTL Data Serial Port Also accept customized RS232 data Signal Indicator Signal Connection... -
Page 5: Basic Parameters
RJ45 Eth interface connect to devices： IPC，Switch，PC，etc. 3.2 Basic Parameters N.W.:200g G.W.:265g(including two antenna) 3.3 Cautions The device data interface is designed by air plug. If it needs to be extended during use, please use the direct network cable. The direct network cable sequence is defined as follows:... -
Page 6: Ⅳ、Equipment Debug
Special attention: before the equipment is powered on, please carefully confirm whether the antenna is correctly connected, so as to avoid unnecessary trouble and economic loss caused by damage to the equipment. Ⅳ、Equipment Debug 4.1 Prepare of Debug Before debugging, ensure that PC and device IP in the same network segment. Factory default parameters: IPv4 address: 192.168.1.1;... -
Page 7: Equipment Login
4.2 Equipment Login 1. Open IE browser, input the IP of the device in the address bar: 192.168.1.12, log in the device and select "Management Login", the default IP of the device is: 192.168.1.12, username and password is: admin123. choose“Management Login” 2. -
Page 8: Set Central Node/ Access Node
User name：admin123 password：admin123 click login 4.3 Set Central Node/ Access Node The device has two working modes: Central Node/ Access Node. After logging into the device through the browser, the following actions are required to change the device's working mode. After entering the page, click "Master and Slave Setting", select "Master and Slave Setting"... -
Page 9: Set Wlan
age. Click "Network Parameter Setting" and select "IP setting" to modify the de vice IP address. Click "OK" to complete IP modification， as shown in figure: Set an IP 4.5 Set WLAN When setting the working frequency of the device, click the "Wireless Setting" button and select the "Frequency Band"... -
Page 10: Set Bandwidth
Set the frequency band click "Submit" 800MHz/1.4GHz 4.6 Set Bandwidth According to the link throughput demand, users can choose channel bandwidth 1.4, 3, 5, 10, 20 MHz. The narrower the bandwidth, the farther the transmission distance, the lower the bandwidth, the closer the transmission distance, and the higher the transmission rate. -
Page 11: Ⅴ、Use Notes
select the working bandwidth Ⅴ、Use Notes ●When we adjust and test equipment, make sure that the Tx and Rx are in the same channel. ●The first time to connect the power supply, please check the power supply voltage "+ -" is correct. ●Avoid high voltage towers around. -
Page 12: Ⅵ、Normal Faults And Treatment
antennas. Ⅵ、Normal Faults and Treatment ◆Faults cases: if the video (data) suddenly lost, interrupted, can be as follows suggested troubleshooting. Hardware failure: 1. At this point, the first step is to make sure the power supply is normal, according to the indicator. -
Page 13: Ⅶ、Accessories
Ⅶ、Accessories Item Quantity Specification Remark 1.4GHz mini SMA Internal thread 3dBi gain Rubber Antenna with needle Warranty Card Suntor Standard After-sale guarantee Detail describe Specification User manual parameters and how to （End） Focus on wireless make transmission easier...
