- Page 1 CD15NMT-MiNi User Manual SUNTOR ELECTRONICS CO., LIMITED...
-
Page 2: Table Of Contents
Contents Ⅰ、 Product Appearance ............................. 3 Ⅱ、Product Intro ................................3 Ⅲ、Equipment Install ..............................4 3.1 Interfaces Describe ............................3.2 Basic Parameters ..............................5 3.3 Cautions ................................Ⅳ、Equipment Debug ..............................6 4.1 Prepare of Debug ............................... 4.2 Equipment Login ..............................4.3 Set Central Node/ Access Node ........................4.4 Modify IP Address .............................. -
Page 3: Ⅰ、Product Appearance

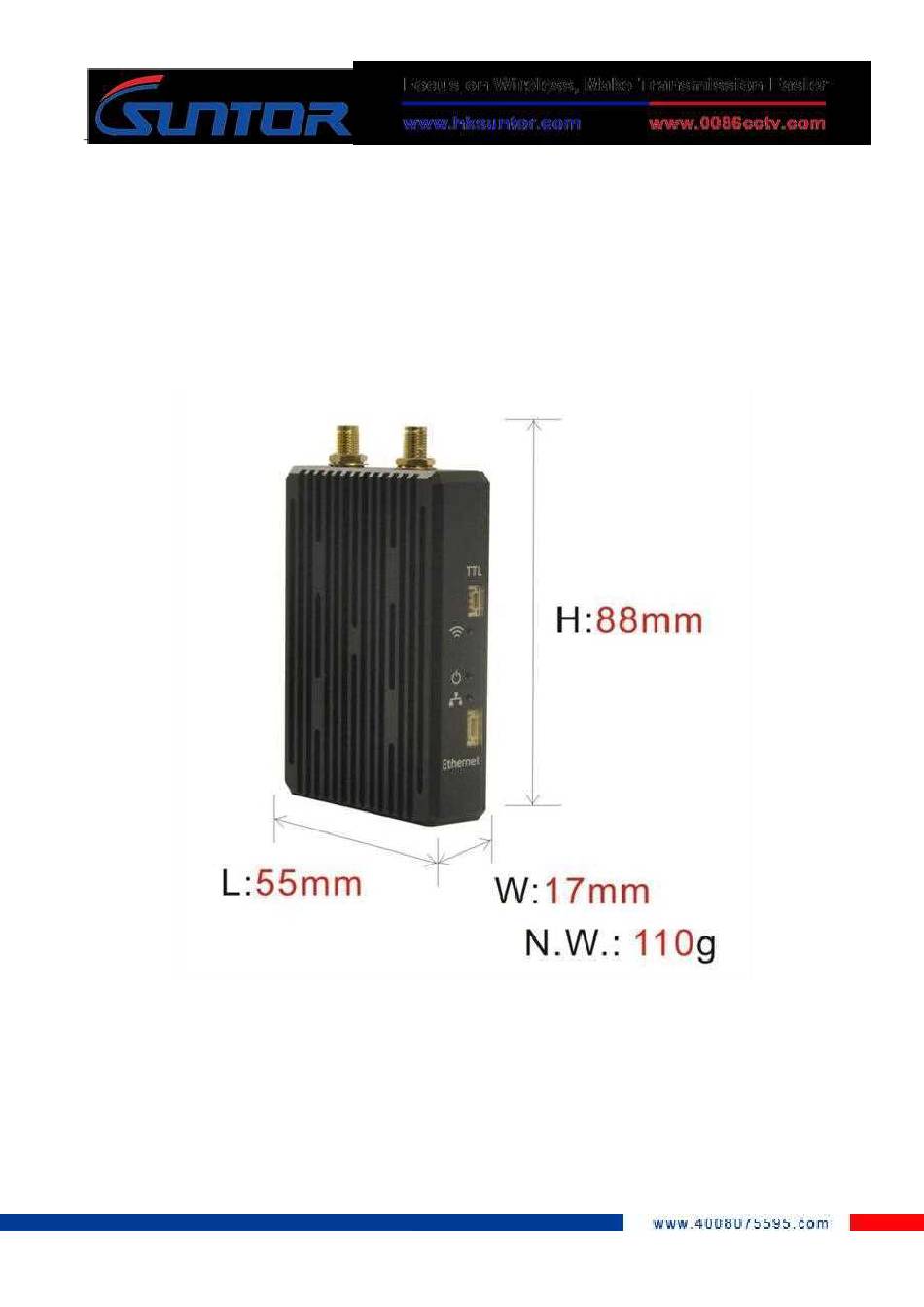

Ⅰ、Product Appearance Ⅱ、Product Intro The CD15NMT-MiNi UAV wireless transmission link is an Ad-hoc network device, it's good performance in NLOS transmission. The device wireless module adopt Qualcomm chip and three-frequency design, it support 2.4G(2401.5-2481.5MHz ),1.4G（1427.9-1447.9MHz）and 800M（806-826MHz）. When it's in 1.4G frequency, it can realize a high throughput Ad-hoc network transmission in a long LOS distance. -
Page 4: Cautions
Unmanned ship, Unmanned car, Airship, Target drone, Powered parachute, Robot and other fields for video signal transmission, police video forensics, emergency monitor and rescue sites. Ⅲ、Cautions The device data interface is designed by air plug. If it needs to be extended during use, please use the direct network cable. -
Page 5: Equipment Login
The steps to modify computer IP: 4.2 Equipment Login 1. Open IE browser, input the IP of the device in the address bar: 192.168.1.12, log in the device and select "Management Login", the default IP of the device is: 192.168.1.12, username and password is: admin123. -
Page 6: Set Central Node/ Access Node
choose“Management Login” 2. User name: admin123 password：admin123 click login User name：admin123 password：admin123 click login 4.3 Set Central Node/ Access Node The device has two working modes: Central Node/ Access Node. After logging into the device through the browser, the following actions are required to change the device's working mode. -
Page 7: Modify Ip Address
Select the working mode of the node, Central Node/Access Node 4.4 Modify IP Address Enter the device IP address in the browser and enter the device management p age. Click "Network Parameter Setting" and select "IP setting" to modify the de vice IP address. -
Page 8: Set Bandwidth
supports the RF 800M frequency band and 1.4G frequency band. The 2.4G frequency band is not open yet. After confirming the frequency, click "Submit" to complete the configuration. The operation is as follows: Set the frequency band click "Submit" 800MHz/1.4GHz 4.6 Set Bandwidth According to the link throughput demand, users can choose channel bandwidth 1.4, 3, 5, 10, 20 MHz. -
Page 9: Ⅴ、Use Notes
select the working bandwidth Ⅴ、Use Notes ●When we adjust and test equipment, make sure that the Tx and Rx are in the same channel. ●The first time to connect the power supply, please check the power supply voltage "+ -" is correct. ●Avoid high voltage towers around. -
Page 10: Ⅵ、Normal Faults And Treatment
antennas. Ⅵ、Normal Faults and Treatment ◆Faults cases: if the video (data) suddenly lost, interrupted, can be as follows suggested troubleshooting. Hardware failure: 1. At this point, the first step is to make sure the power supply is normal, according to the indicator. -
Page 11: Ⅶ、Accessories
Ⅶ、Accessories Item Quantity Specification Remark 1.4GHz mini SMA Internal thread 3dBi gain Rubber Antenna with needle Warranty Card Suntor Standard After-sale guarantee Detail describe Specification User manual parameters and how to （End） Focus on wireless make transmission easier...
