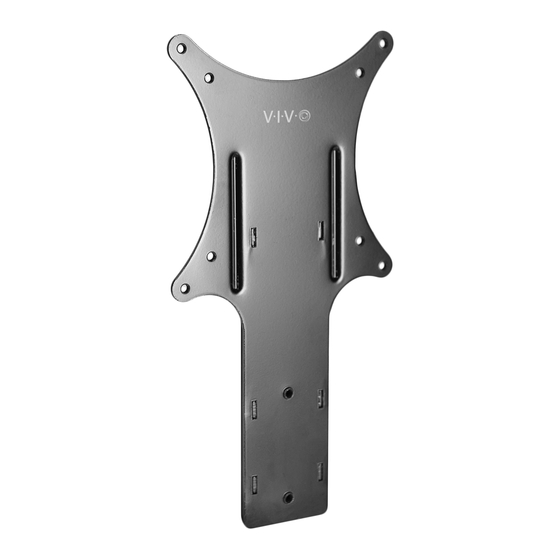

VESA Adapter for Compatible AOC Monitors
Instruction Manual
SKU: MOUNT-AOC1A
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/mount-aoc1a
help@vivo-us.com
www.vivo-us.com
309-278-5303
Advertisement
Table of Contents
Related Manuals for Vivo VESA MOUNT-AOC1A
Summary of Contents for Vivo VESA MOUNT-AOC1A
- Page 1 VESA Adapter for Compatible AOC Monitors Instruction Manual SKU: MOUNT-AOC1A Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/mount-aoc1a help@vivo-us.com www.vivo-us.com 309-278-5303...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury.
- Page 3 STEP 2 Insert spacer (F) into the adapter’s center hole, and secure with M5x15mm bolt (D) and washer (E). Tighten with the Allen wrench (G). STEP 3 Insert M5x25mm bolt (C) through the side of the VESA adapter as shown and tighten with the Allen wrench (G) until the adapter is unable to wobble on the monitor post.
- Page 4 - 83% within < 2hr - 92% within < 3hr www.vivo-us.com : < 15 M AVG. RESOLUTION TIME (within office hrs) : 5M 4S 309-278-5303 AVG. RESOLUTION TIME (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
