Summary of Contents for Vivo MOUNT-AR240H

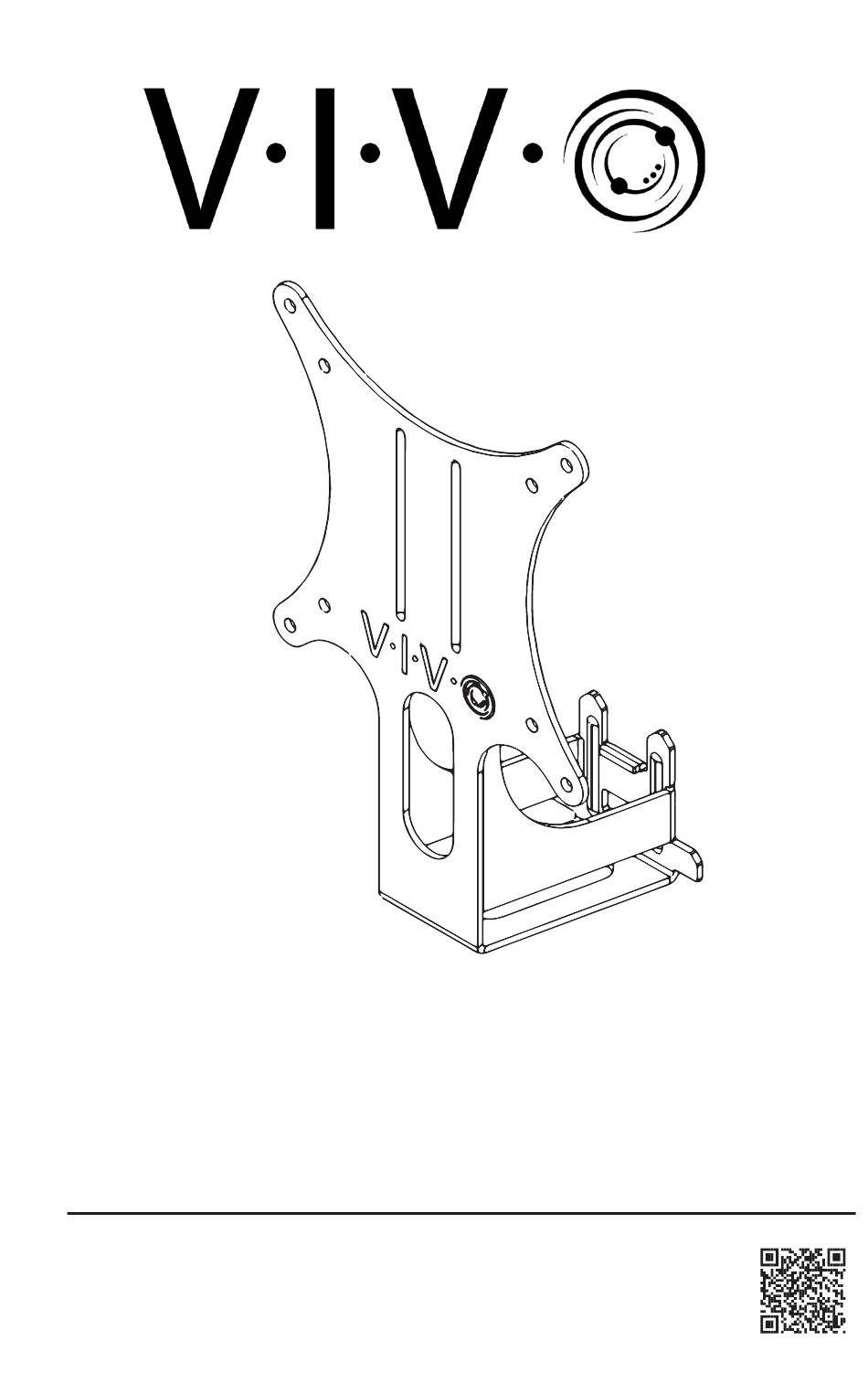

- Page 1 VESA Adapter Designed for Compatible Acer & Viewsonic Monitors SKU: MOUNT-AR240H Instruction Manual Assembly Video & Product Info www.vivo-us.com/products/mount-ar240h...
- Page 2 [ THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK ]...
- Page 3 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
-
Page 4: Package Contents
Package Contents A (x1) VESA Adapter Included Hardware & Tools M-A (x4) M-B (x4) M4x12 Thumbscrew Washer Tools Needed: Phillips Screwdriver... -
Page 5: Pre-Installation
PRE-INSTALLATION Remove your OEM base from your compatible Acer or Viewsonic monitor. Trouble Removing OEM Base? If you are having issues removing the OEM base, check our quick tutorial for tips and tricks for an easy removal process. Scan to View Quick Tips Video WATCH Link will direct to product page... -
Page 6: Installation Steps
INSTALLATION STEPS STEP 1 Slide the VESA adapter (A) into the Monitor Slot. You will hear a “click” when the adapter is locked in place. For a secure fit, ensure that both Spring Clips are fully engaged with Adapter. Spring Clips... - Page 7 STEP 2 Mount the adapter with monitor to your VESA mount using M4x12mm Thumbscrews (M-A) and Washers (M-B). Do not overtighten; the thumbscrews only need to be finger-tight.
- Page 8 LAST UPDATED: 5/6/24 REV2 v1.0 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...
