9. Unpack the host adapter.
You should have the following items:
■
■
Note – Leave the host adapter in the protective bag until you are ready to install it.
J4 connector
FIGURE 1-2

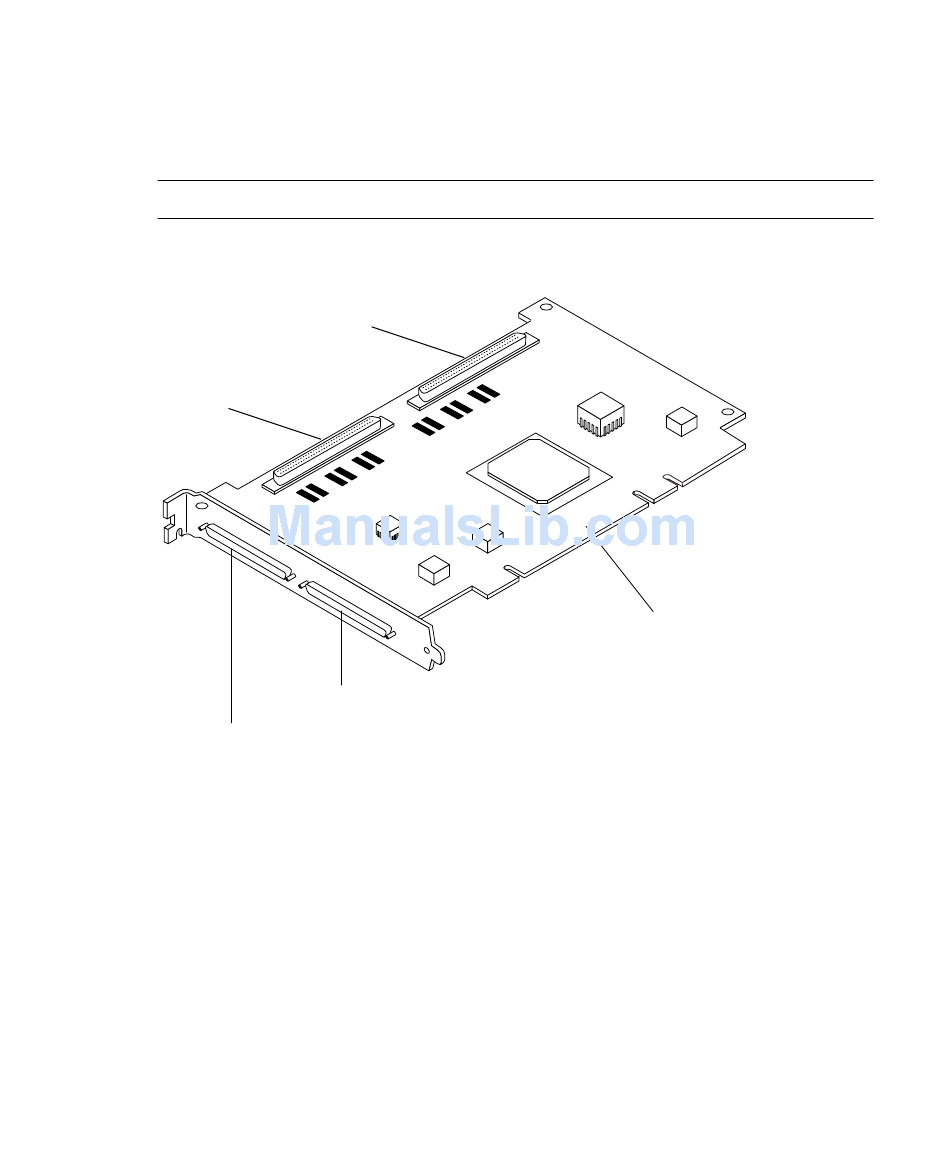

The host adapter is shown in Figure 1-2. The Very High Density Cable Interconnect
(VHDCI) connectors are for the VHDCI cables that are used to connect the host
adapter to the storage device.
The next section provides instructions on how to install the host adapter in your
system.
6 Sun StorEdge PCI/PCI-X Dual Ultra320 SCSI Host Adapter Installation Guide • January 2007
Sun StorEdge PCI/PCI-X Dual Ultra320 SCSI host adapter (Figure 1-1)
Antistatic wrist strap
J6 connector
J2 (Channel A)
J3 (Channel B)
Sun StorEdge PCI/PCI-X Dual Ultra320 SCSI Host Adapter
VHDCI Connectors
PCI/PCI-X connector
