Summary of Contents for twin busch TW M-02

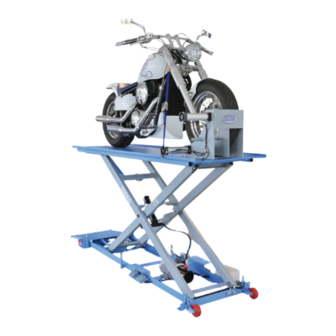

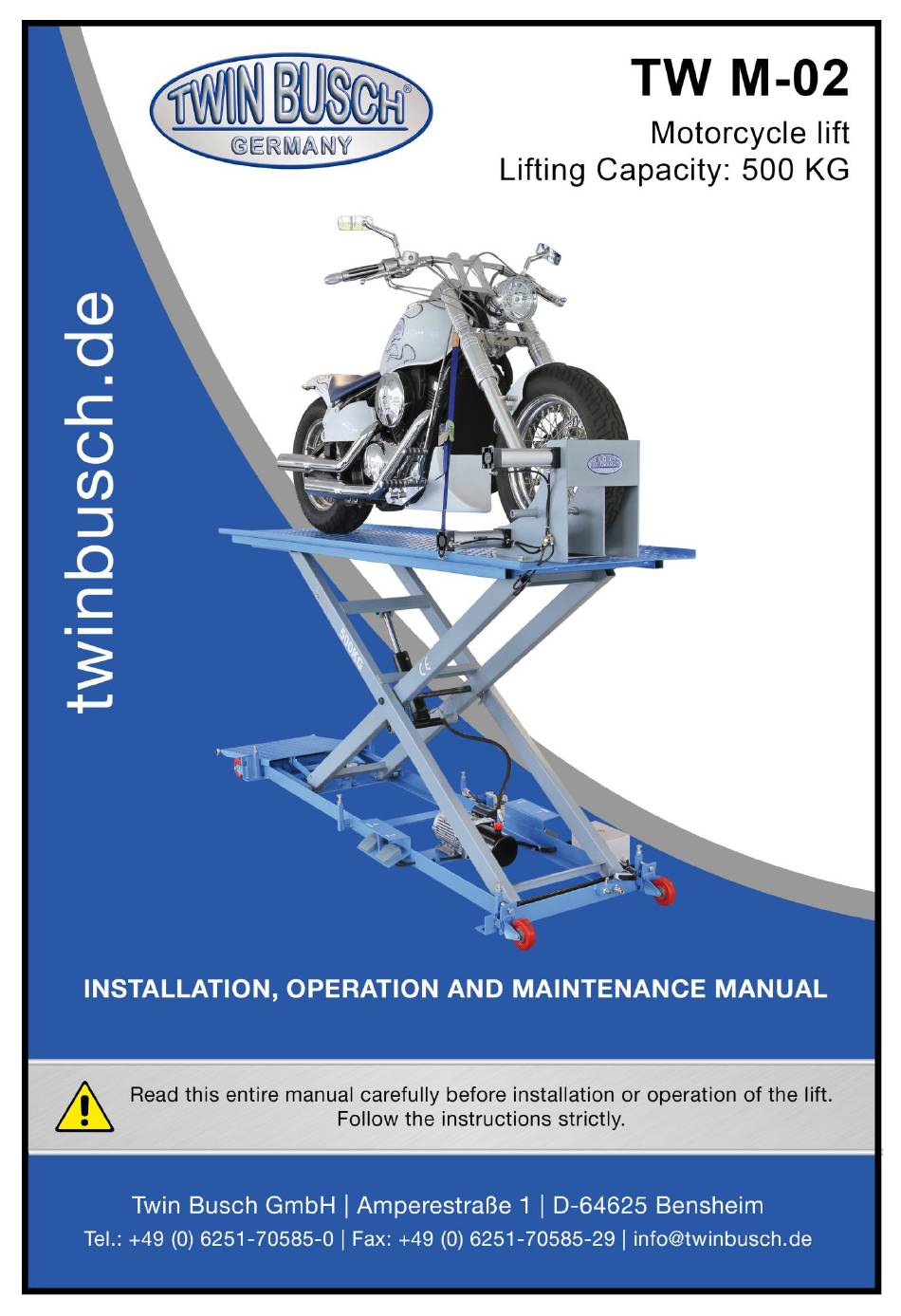

- Page 1 TWIN BUSCH GmbH Technical changes for purposes of a technical advancement as well as deviation in colour, errors and printing mistakes are reserved. - 1 -...
- Page 2 TWIN BUSCH GmbH Technical changes for purposes of a technical advancement as well as deviation in colour, errors and printing mistakes are reserved. - 2 -...
-
Page 3: Table Of Contents
TWIN BUSCH GmbH SCISSOR LIFT INSTRUCTION MANUAL INDEX PAGE 1. Packing, transport and storage ........................- 4 - 1.1 Packing: ..............................- 4 - 1.2 Transport: .............................. - 5 - 1.3 Storage: ..............................- 5 - 2. Manual introduction ............................- 6 - 3. -
Page 4: Packing, Transport And Storage
TWIN BUSCH GmbH 1. Packing, transport and storage All packing, lifting, handling, transport and unpacking operations are to be performed exclusively by expert personnel. 1.1 Packing: Packing List Name Accessory name and quantity Frame Frame 1 piece Accessory box Tyre clamp spare part... -
Page 5: Transport
TWIN BUSCH GmbH 1.2 Transport: Packing can be lifted or moved by lift trucks, cranes or bridge cranes. In case of slinging, a second person must always take care of the load, in order to avoid dangerous oscillations. During loading and unloading operation, goods must be handled by vehicles or ships. -
Page 6: Manual Introduction
TWIN BUSCH GmbH 2. Manual introduction This manual has been prepared for workshop personnel expert in the use of the lift operator and technicians responsible for routine maintenance fitter. Workers should read the <<Instruction & Maintenance Manual>> carefully before carrying out any operation with the lift. -
Page 7: Equipment
TWIN BUSCH GmbH 3.4 Equipment -Machine basement (The position and space of equipment installation) -Machine frame (The main structure of lift and insurance institution) -Power unit (Machine-controlled part) 3.5 Frame Make of base plate, platform and hydraulic cylinder. Wheel Platform... -
Page 8: Power Unit
TWIN BUSCH GmbH 4. Specifications 4.1 Main technical parameter Machine type Drive Power unit Lifting capacity 300kg 500kg Machine lift height 1200mm Platform initial height 180mm 200mm Platform length 1800mm 2480mm Platform width 570mm 720mm ≤20s ≤30s Lifting time ≤20s ≤30s... -
Page 9: External Dimension Drawing
TWIN BUSCH GmbH 4.2 External dimension drawing 1200 450/560 670/820 570/720 200/250 460/545 1800/2480 2310/3170 180/200 Picture 5 (Lift dimension picture) Technical changes for purposes of a technical advancement as well as deviation in colour, errors and printing mistakes are reserved. -
Page 10: Operation
TWIN BUSCH GmbH 5. Operation There are two pedal switches (one for UP and the other for DOWN) at both the left and right side of the machine’s base (picture 6), and one pedal switch at the left side (picture 7) to control the pneumatic front tyre clamp. -
Page 11: Maintenance And Care
TWIN BUSCH GmbH 6. Maintenance and care Skilled personnel only is allowed to perform the operations Daily checking items The user must perform daily check. Daily check of safety system is very important – the discovery of device failure before action could save your time and prevent you from great loss, injury or casualty. -
Page 12: Circuit Diagram
TWIN BUSCH GmbH 7. Circuit diagram Technical changes for purposes of a technical advancement as well as deviation in colour, errors and printing mistakes are reserved. - 12 -... -
Page 13: Gas Loop Diagram
TWIN BUSCH GmbH D35-1003 D35-1004 D35-1003 H-030-050011-1 AC contactor D35-1004 fuse 8. Gas loop diagram Technical changes for purposes of a technical advancement as well as deviation in colour, errors and printing mistakes are reserved. - 13 -... -
Page 14: Explosion Drawing
TWIN BUSCH GmbH 9. Explosion drawing M02-100 M01-100 M02-200 M01-200 M02-300 M01-300 M02-400 M01-400 M01-500 M01-500 M01-100 Complete platform assembly M02-100 Complete platform assembly M01-200 Complete connecting rod assembly M02-200 Complete connecting rod assembly M01-300 Complete oil cylinder assembly M02-300... - Page 15 TWIN BUSCH GmbH M01-100 D35-405 M01-103 M01-102 M01-104 M01-105 M01-101 M01-106 FS35-312 M01-107 FS35-311 M01-108 M01-109 M01-113 M01-110 M01-112 M01-111 FS35-310 M02-100 D35-405 M01-105 M01-106 M02-102 M02-101 M01-107 M01-101 FS35-312 M02-103 FS35-311 M02-104 M02-105 M01-113 M01-110 M02-106 M01-112 FS35-310 FS35-311 flat washer Ø12...
- Page 16 TWIN BUSCH GmbH M01-104 Guide rod M01-105 hex socket head cap screw M8X25 M01-106 spring washer Ø8 M01-107 flat washer Ø8 M01-108 clamping cylinder SC50X125 M01-109 platform M01-110 spring M01-111 guide tube FS35-310 shaft snap ring Ø10 M01-112 roller M01-113...
- Page 17 TWIN BUSCH GmbH M01-201 top plate pin M02-201 top plate pin FS35-227 shaft snap ring Ø20 M01-202 Inner connecting rod M02-202 Inner connecting rod M01-203 Outer connecting rod M02-203 Outer connecting rod M01-204 base pin M02-204 base pin D35-104 shaft snap ring Ø25...
- Page 18 TWIN BUSCH GmbH M01-400 M01-404 M02-400 D35-521 M01-411 M01-412 M01-413 H30-105 D35-522 M01-403 M01-402 M01-405 D35-514 M01-106 D35-315 M01-107 M01-401 M01-406 M02-401 M01-407 M01-408 M01-410 M01-409 D35-409 M01-400 base complete M01-401 Foot valve D35-515 flat washer Ø6 D35-514 spring washer Ø6...
- Page 19 TWIN BUSCH GmbH D35-409 hex nut M8 M01-409 caster M01-410 hex bolt M8X65 M01-411 bend connector M01-412 quick connector(female) M01-413 quick connector(male) M01-300 M01-308 M01-307 M01-306 M01-305 M01-304 M01-303 M01-302 M01-301 M02-300 M02-307 M02-306 M02-305 M02-304 M02-303 M02-302 M02-301 M01-301 Technical changes for purposes of a technical advancement as well as deviation in colour, errors and printing mistakes are reserved.
- Page 20 TWIN BUSCH GmbH M01-301 dust-proof ring Ø32X40X5.3 M01-301 dust-proof ring Ø32X40X5.3 M01-302 Wear ring M02-301 Wear ring M01-303 oil cylinder cover M02-302 oil cylinder cover M01-304 O-ring Ø45X3.55 M02-303 O-ring Ø45X3.55 M01-305 piston rod M02-304 piston rod M01-306 combined seal ring Ø45X29X18.4 M02-305 combined seal ring Ø45X29X18.4...
-
Page 21: Accessory Packing List
TWIN BUSCH GmbH M01-511 Oil hose connector(M01,M02) D35-904 Lowering valve(M01,M02) D35-903 Lowering coil(M01,M02) 10.Accessories Packing List Name Spec. φ6*4 1. Air Cylinder union φ6*4 2. Air hose T-union φ6*4 3.Air hose straight union 4.Pedal switch CFS-201 AC-15 5.Fuse 6.Fuse φ6*4 7.Air hose bend union... - Page 22 TWIN BUSCH GmbH Space for notes: Technical changes for purposes of a technical advancement as well as deviation in colour, errors and printing mistakes are reserved. - 22 -...
- Page 23 TWIN BUSCH GmbH Technical changes for purposes of a technical advancement as well as deviation in colour, errors and printing mistakes are reserved. - 23 -...
- Page 24 TWIN BUSCH GmbH Technical changes for purposes of a technical advancement as well as deviation in colour, errors and printing mistakes are reserved. - 24 -...
