Summary of Contents for twin busch TWM-02
-
Page 2: Table Of Contents

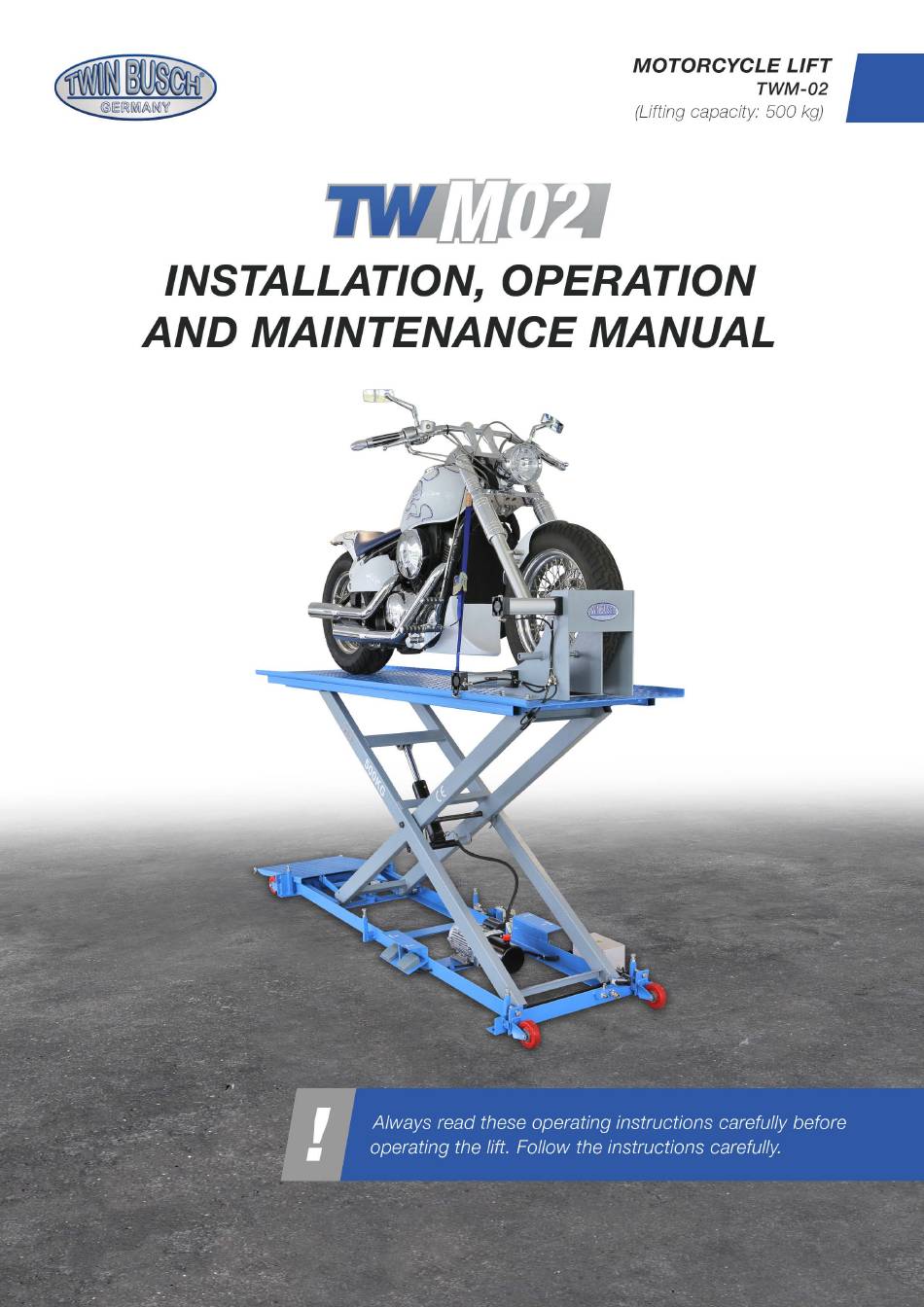

Manual motorcycle lift TWM-02 Table of contents 1. General information ..........................1 2. Identification of the instructions for use ....................1 3. Technical data ............................1 4. Modification of the product ........................1 5. Safety-related information ........................2 5.1 Symbols ............................... 2 5.2 Safety instructions ............................ - Page 3 Manual motorcycle lift TWM-02 Further attachment: EU Declaration of Conformity ⋅ TWM-02_Motorcycle_lift_manual_uk_02_20240702.pdf Version: -02, 02.07.2024...
- Page 4 Manual motorcycle lift TWM-02 Important information: ASSEMBLY You can find the assembly video for this lift on YouTube: https://www.youtube.com/watch?v=qGnyPqr8oUI or scan the QR code. PRODUCT PRESENTATION You can find the product presentation video for this lift on YouTube: https://www.youtube.com/watch?v=kzDfl9FLEd4 or scan the QR code.
- Page 5 TIPS & TRICKS In the "Tips & Tricks" section, we show you simple solutions, in videos to make your TWIN BUSCH® products even more efficient. to work. Our technical specialist will explain the exact steps to you. Tips & Tricks - Tips & Tricks (twinbusch.co.uk)
-
Page 6: General Information

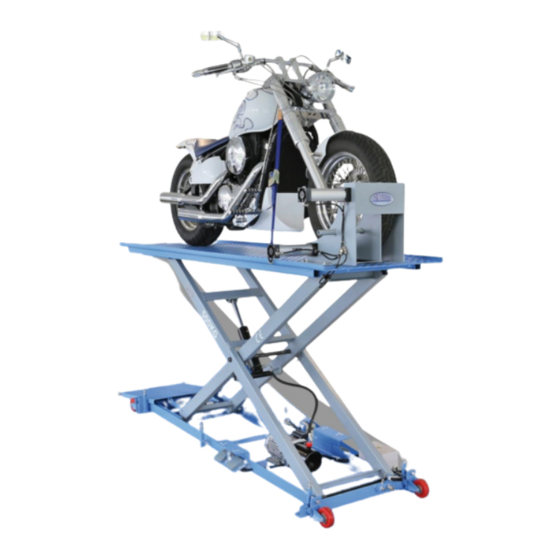

Manual motorcycle lift TWM-02 1. General information With the TWM-02 motorbike lift, you have an extremely solid hydraulic scissor lift for motorbikes (also for large machines such as choppers, tourers, etc.) and scooters weighing up to 500 kg. A powerful electric motor ensures comfortable lifting and lowering of your two-wheelers. -
Page 7: Safety-Related Information
Manual motorcycle lift TWM-02 5. Safety-related information Read the operating instructions carefully before operating the lift. Keep the instructions in a safe place for future reference. Follow the instructions carefully to achieve the best performance from the machine and to avoid damage due to personal negligence. -
Page 8: Warnings And Symbols
Manual motorcycle lift TWM-02 platform must be tidy and clean. ⋅ Always ensure that all safety precautions have been taken before working in the vicinity of the lift. ⋅ Never remove safety-relevant components from the lift. Never use the lift under any circumstances if safety-relevant components are missing or damaged. -
Page 9: Conformity With The Product
Manual motorcycle lift TWM-02 6. Conformity with the product The TWM-02 motorbike hoist is CE-certified and complies with the Machinery Directive 2006/42/EC and fulfils the standards EN 1493:2022, EN 60204-1:2018, EN IEC 61000-6-2:2019, EN IEC 61000-6-4:2019, EN IEC 61000-3-2:2019+A1:2021 and EN 61000-3-3:2013+A2:2021 (see under: EU Declaration of Conformity, at the end of the instructions for use). -
Page 10: Assembly Of The Lifting Platform
Manual motorcycle lift TWM-02 8. Assembly of the lifting platform 8.1 Checklist (packing list) Unpack all components of the lift and check that all components are complete using the packing list (see appendix: Packing list). 8.2 Ground conditions The lifting platform must be installed on a solid foundation with a compressive strength of more than 3 kg/mm², a flatness of less than 5 mm and a minimum thickness of 100 mm. -
Page 11: Checkpoints According To The Structure
Test the function of the hydraulic lifting and lowering device Note: If problems occur or the lift does not function properly, check all connections for faults again or contact your dealer or Twin Busch GmbH. 8.4 Checkpoints according to the structure... -
Page 12: Commissioning
Manual motorcycle lift TWM-02 9. Commissioning 9.1 Safety precautions a) If the safety devices are defective or show abnormalities, the lift must not be put into operation under any circumstances! b) Check that all connections of the hydraulic lines are tight and functional. If there are no leaks, the lifting process can be started. - Page 13 Manual motorcycle lift TWM-02 The rocker switch is for controlling the front wheel clamp. The front wheel lock can be controlled pneumatically. The access ramp automatically moves out of the user's range of movement during the lifting process. Page | 8...
-
Page 14: Troubleshooting
10. Troubleshooting Please note: Do not hesitate to contact the expert staff at Twin Busch GmbH if you are unable to rectify a fault yourself. We will be happy to help you solve the problem. In this case, please document the fault and send us pictures and a precise description of the fault so that we can identify and rectify the cause as quickly as possible. -
Page 15: Maintenance
Manual motorcycle lift TWM-02 11. Maintenance Regular maintenance of your lift will ensure a long and safe service life. Suggestions for maintenance intervals and the activities to be carried out are listed below. How often you service your lift depends on the ambient conditions, the degree of soiling and, of course, the stress and load on the lift. -
Page 16: Behaviour In The Event Of A Malfunction
If the lift malfunctions, simple faults may be the cause. Use the following list for troubleshooting *). If the cause of the fault cannot be found, please contact the expert Twin Busch GmbH team. Never attempt to carry out repairs yourself, especially on safety equipment or electrical system components. -
Page 17: Dimensions Of The Lift
Manual motorcycle lift TWM-02 13.2 Dimensions of the lift 13.3 Foundation requirements and working area Requirements for the concrete: - Concrete C20/25 according to DIN 1045-2 (previous designation: DIN 1045 concrete B25). - The floor must be level and have a flatness of less than 5 mm/m. -
Page 18: Pneumatic Plan
Manual motorcycle lift TWM-02 13.4 Pneumatic plan 1 Quick-release coupling, locking on one side 2 4/3 way valve 3 Pneumatic cylinders, double-acting Page | 13 Misprints, errors and changes excepted. -
Page 19: Circuit Diagrams
Manual motorcycle lift TWM-02 13.5 Circuit diagrams SB foot pedal FU fuse DQ Pneumatic valve M Motor SQ limit switch KM motor contactor Page | 14 Misprints, errors and changes excepted. -
Page 20: Detailed Drawing And Parts Description Of The Lift
Manual motorcycle lift TWM-02 13.6 Detailed drawing and parts description of the lift M02-500 M02-100 Complete carriageway at the top M02-200 Complete scissor system M02-300 Oil cylinder complete M02-400 Floor slab complete M02-500 Motor unit Page | 15 Misprints, errors and changes excepted. - Page 21 Manual motorcycle lift TWM-02 M02-105 M02-106 M02-107 M02-101 FS35-311 U disc Ø12 FS35-312 Spring washer Ø12 D35-405 Nut M16 FS35-310 Seeger ring Ø10 M02-101 Wheel clamp complete M02-102 Pressure plate M02-103 Pneumatic cylinders M02-104 Guide pin M02-105 Carriageway M02-106 Guide bush M02-107 U disc Ø8...
- Page 22 Manual motorcycle lift TWM-02 M01-200 M02-200 M01-201 M02-201 FS35-227 M01-202 M02-202 M01-203 M02-203 M01-204 M02-204 D35-516 M01-206 D35-116 M02-206 D35-104 D35-104 M01-214 M01-205 FS35-227 M01-213 M01-207 M02-205 FS35-227 M01-208 M01-209 M01-210 H30-106 M02-207 M01-211 M02-208 M01-212 FS35-324 M01-400 M01-404 M02-400...
- Page 23 Manual motorcycle lift TWM-02 D35-515 U disc Ø6 M02-201 D35-514 Spring washer Ø6 FS35-227 Seeger ring Ø20 D35-522 M8X16 screw M02-202 Connecting rod inside D35-521 Limit switch LZ7312 M02-203 External connecting rod H30-105 M12X50 screw M02-204 M02-401 Bottom frame D35-104 Seegerring Ø25...
- Page 24 Manual motorcycle lift TWM-02 M02-301 M02-301 Slip ring M02-302 Oil cylinder cover M02-303 O-ring Ø45X3.55 M02-304 Piston rod M02-305 Sealing ring Ø45X29X18.4 M02-306 Piston M02-307 Oil cylinder Page | 19 Misprints, errors and changes excepted.
- Page 25 Manual motorcycle lift TWM-02 M01/M02-500 M02-501/M02-502 M01-501/M01-502 M01-503 M02-504 M01-504 M02-505 M01-505 M02-506 M01-506 M02-507 M01-507 M02-508 M01-508 M01-509 M01-511 D35-904 D35-903 M01-510 M02-501 1 phase motor (M01, M02) M02-502 3 phase motor (M01, M02) M02-503 Socket (M01, M02) M02-504...
- Page 26 Notes...
