Installation Instructions
Inductive sensor
DC / unipolar
UK

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Efector 100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IFM Electronic Efector 100

Summary of Contents for IFM Electronic Efector 100

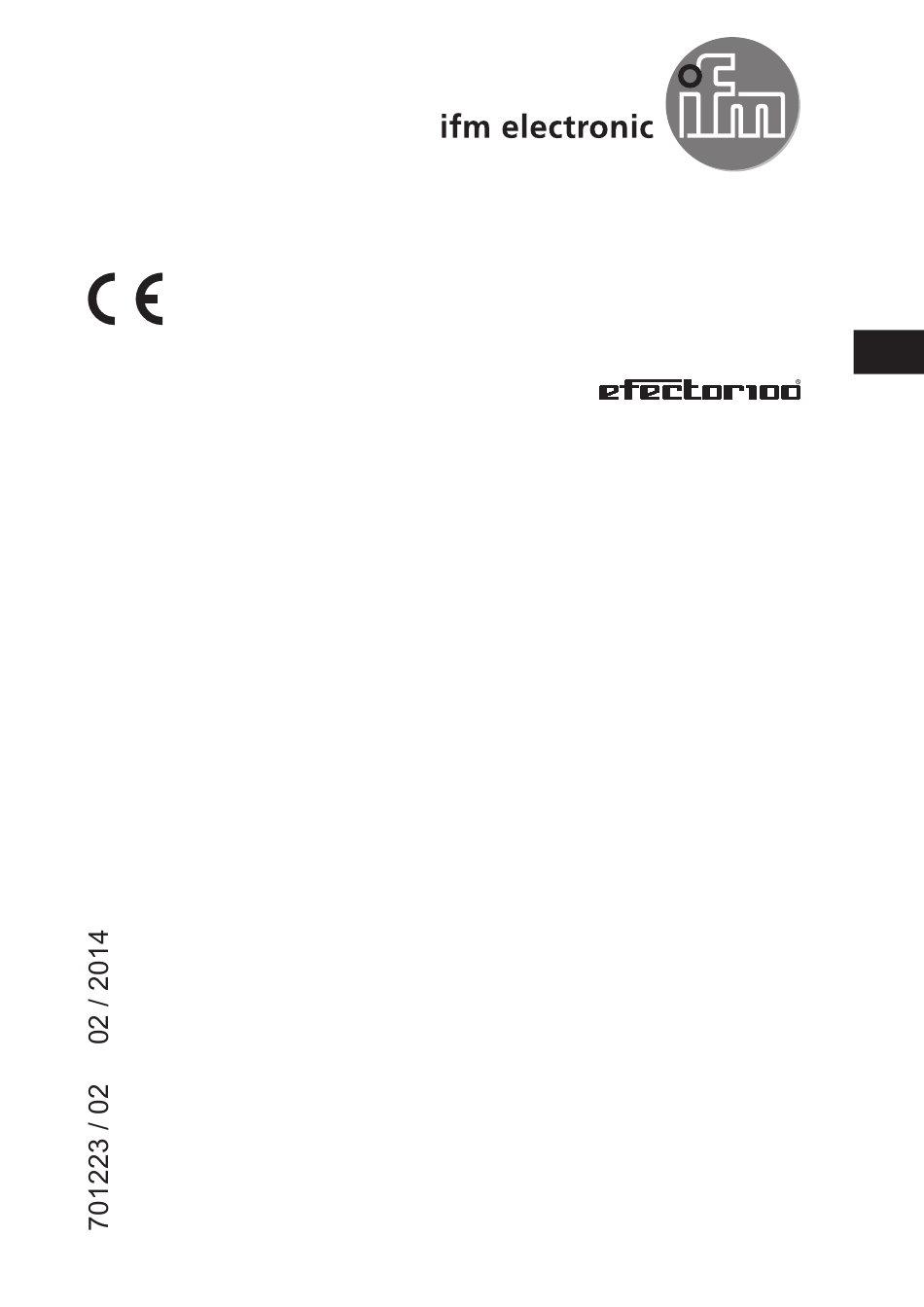

  • Page 1 Installation Instructions Inductive sensor DC / unipolar...
  • Page 2 Function and features This sensor detects metals without contact and indicates their presence by providing a switched signal. Nominal sensing range (Sn) see type label; (value based on standard measurement with mild steel; a shorter sensing range for other metals). Installation • Flush or non-flush installation (see type label: Sn = Xmm f or Xmm nf) (→ fig. 1)

  • Page 3: Electrical Connection

    Sn = x mm f Sn = x mm nf 2 x D Electrical connection ► Disconnect power before connecting the proximity switch; connection: → fig. 5). • For cables longer than 30 m and wires greater than 0.5 mm² the cable should be laid separately from sources of interference (at a distance of about 50 cm) or a screened cable should be used. • Connect the load before applying the operating voltage. • Observe the values for current rating and minimum load current. • If capacitive loads are used, ensure that the peak current rating is not exceeded.
  • Page 4 ► Do not connect loads of low resistance (e.g. lamps) directly to the sensor. Switch these loads via a relay (→ fig. 6): ► For inductive loads a RC circuit should be connected in parallel to the load (→ fig. 7). ► A load which is too low for 2-wire sensors may lead to malfunction. In such a case a resistor should be connected in parallel to the load (→ fig. 8). • For series connection consider the voltage drop of each unit.
  • Page 5 ► As a rule avoid connecting 2-wire units in parallel (only in exceptional cases, check the safe function, → fig. 9): ► The supply voltage must correspond to the values indicated on the label. If it is not stabilised, a capacitor should be connected (at 24 V and 1 A for example a capacitor of 1000 µF, 50 WV → fig. 10):...
