Eaton Arrow Hart AHAWC-DT-120W Installation Instructions

Arrow Hart
Dual Technology Wall/Corner Mounted Low
Voltage Occupancy Sensor
9850-000550-00
General Information
• Read all instructions on both sides of this sheet • For Use with Eaton Switchpacks & Systems Only
first • Do not run any Eaton Low Voltage Wiring in the
• Install in accordance with ALL local codes same conduit as power conductors
• For indoor use only
Specifications
Technology: Passive Infrared (PIR) and Ultrasonic (US) Coverage: 1200 sq. ft.
Power Requirements: Light Level Sensing: 0 to 300 foot-candles (-R model)
Input: Operating Environment:
• 10-30 VDC from Eaton Switchpack or Eaton system. • Temperature: 32° F – 104° F (0° C – 40° C)
Maximum current needed is 25mA per sensor • Relative Humidity: up to 90% non-condensing
Output: Housing:
• Open collector output to switch up to ten Eaton • Medium impact injection molded housing
Switchpacks. BAS with Isolated Form C Relay (-R • Polycarbonate resin complies with UL 94V0
model) Isolated Form C Relay Ratings: 1A 30VDC/VAC
Size: 4.4" x 3.4" x 2" (112 mm x 86.4 mm x 50.8 mm)
Time Delays: Self-Adjusting, 15 seconds/test (10 min Auto)
LED Indicators: Red indicates PIR detection; Green
or Selectable 5, 15, 30 minutes indicates Ultrasonic detection
Description

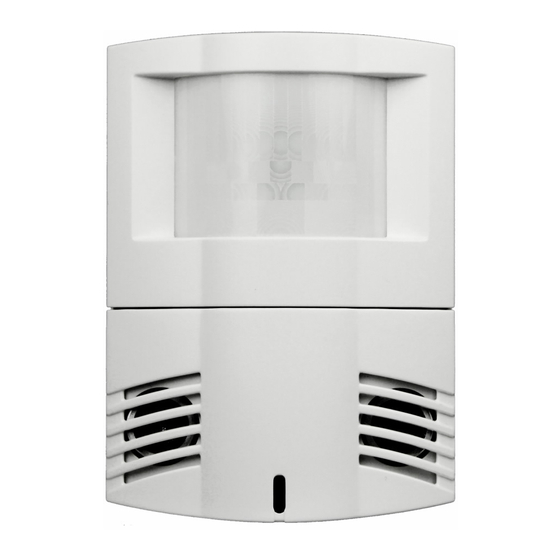

The AHAWC-DT Wall/Corner Mount Low Voltage Occupancy Sensor is a Passive Infrared (PIR) and Ultrasonic (US) motion
sensing lighting control, used for energy savings and convenience. PIR is used to turn the lights ON and then either or both
technologies are used to keep the lights ON. When motion is detected, the blue wire is electronically connected to the red
wire, energizing the relay in the switchpack to turn ON the load. If vacancy is detected, the blue wire is disconnected from
the red, causing the relay to open turning OFF the load. The red lead is 10-30 VDC supply, the black lead is common and the
blue is the relay control.
The sensor includes self-adaptive technology that continually adjusts to conditions by adjusting sensitivity and time delay
in real-time.
The Daylighting feature (-R model only) prevents lights from turning ON when the room is adequately illuminated by
natural light.
The Walk-Through feature maximizes energy savings by not leaving the lights ON after momentary occupancy. The sensor
will switch the lights ON when it detects a person entering the area. If the sensor does not continue to detect motion 30
seconds following the initial activation, it will automatically go to a shorter 2 minute time delay.
In Automatic ON Mode, the lights turn ON when a person enters the room. In Manual On Mode, the lights are turned ON
by activating a momentary switch that is connected to the sensor. When used with 2 level lighting
(-R model only), bi-level Automatic ON can be achieved which allows Zone 1 to come ON automatically upon occupancy.
Zone 2 does not come ON unless the occupant presses the optional momentary switch.
Coverage
24'
(7.3 mm)
20'
(6 mm)
12'
(3.7) Minor Motion, IR
8'
(2.4 mm) Major Motion, IR
0
Minor Motion, Ultrasonic
8'
(2.4 mm)
Major Motion, Ultrasonic
12'
(3.7)
24'
(7.3 mm)
20'
(6 mm)
10 ft
(3 mm)
6 ft 15 ft 24 ft 50 ft
(1.7 mm) (4.6 mm) (7.3 mm) (15.3 mm)
Location
The maximum coverage area may vary somewhat according to room shape and
the presence of obstacles. Follow the coverage diagram concerning major and minor
motion coverage. Decrease total coverage area by 15% for "soft" rooms (for example,
heavy draperies or heavy carpeting). The sensor must have a clear view of the area
to be controlled. The sensor will not "see" through glass. Mounting height should not
exceed 12 feet. Optimum mounting height is 10 feet. Mount the sensor so the grilles
face the open portion of the room and are not facing a nearby wall, door, window or
other obstructing object. Avoid pointing into hallways. To prevent false activation, the
sensor should be mounted away from the air supply duct a minimum of 4 to 6 feet.
Mounting at fixture height is most effective. For typical placement refer to Location
Diagram.

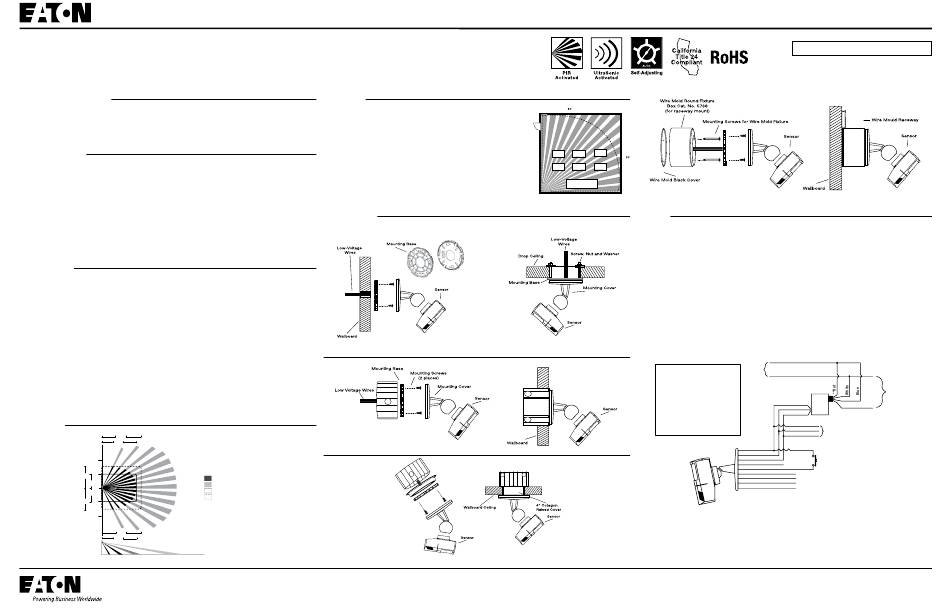

Installation
The AHAWC-DT-120W can be mounted to the wall, ceiling, junction box, or round fixture with raceway.
Occupancy Sensor Mounted to Wallboard
Occupancy Sensor Mounted to Octagon Box
Maximum coverage area may
vary somewhat according to room
shape and the presence of obstacles.
The NEMA WD 7 Guide and robotic
method were utilized to verify
coverage patterns.
Occupancy Sensor Mounted to Octagon Box with Mud Ring
Location Diagram
Occupancy Sensor Mounted to Drop Ceiling
Printed in Malaysia

Installation Instructions

Model # AHAWC-DT-120W
Occupancy Sensor Mounted to Round Fixture with Raceway
Wiring
CAUTION: Before installing or performing any service on a Eaton system, the power MUST be turned OFF at the
branch circuit breaker. According to NEC 240-83(d), if the branch circuit breaker is used as the main switch for a
fluorescent lighting circuit, the circuit breaker should be marked "SWD". All installations should be in compliance
with the National Electric Code and all state and local codes.
NOTE REGARDING COMPACT FLUORESCENT LAMPS: The life of some compact fluorescent lamps (CFLs) is shortened by
frequent automatic or manual switching. Check with CFL and ballast manufacturer to determine the effects of cycling.
1. Make sure power is turned OFF at the branch circuit breaker.
2. Wire units as shown in wiring diagrams per applicable voltage requirements. (Use twist-on wire connectors for all
connections) CAP ALL UNUSED WIRE LEADS.
3. Mount unit to wall, ceiling, junction box or round fixture with raceway.
4. Turn power back ON at the branch circuit breaker and wait two minutes for the unit to stabilize.
5. Make necessary adjustments. (See Checkout and Adjustments section)
One Sensor, One Switchpack
Hot
Line
SENSOR WIRE LEAD LEGEND
Neutral
Black (Common)
Red (10-30 VDC)
Blue (Control) **Use Black Lead for 120 VAC
Yellow (Control) Use Orange Lead for 277 VAC
Cap Unused Lead Black (Common)
Brown (Switch-Blue Lead Control)
Brown/White (Switch-Yellow Lead Control)
Red (15 VDC)
Blue (Control)
Sensor's Isolated Relay
Orange (Normally Open) Switchpack
Gray (Common)
Purple (Normally closed)
Black
Red
Blue
Yellow
Brown
Brown/White
Orange
Gray
Purple
Recommended Wire: 18-3 AWG stranded non-shielded
Eaton Wiring Devices Electrical Sector
203 Cooper Circle Canada Operations
Peachtree City, GA 30269 5925 McLaughlin Road
United States Mississauga, Ontario, L5R 1B8
Eaton.com EatonCanada.ca
Eaton.com/arrowhart
Load 1
Blue
To Additional Sensors.
Maximum of 5 sensors
per switchpack.
Optional momentary switch-
Blue control lead-manual ON/OFF
