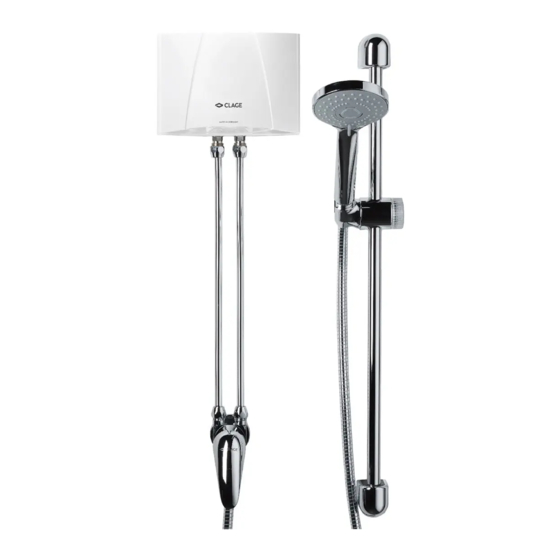

E-mini instant water heater set

MBX Shower

Application areas

Single point supply:

> Single shower (e.g. guest bathroom)

> Attic or basement conversion

> Garden shelter, at the swimming pool

Subject to technical changes and version changes. Errors and omissions excepted. Date of publication: 07.19

Product information 1 / 4

Need help?

Do you have a question about the MBX 4 Shower and is the answer not in the manual?

Page 1 E-mini instant water heater set MBX Shower Application areas Single point supply: > Single shower (e.g. guest bathroom) > Attic or basement conversion > Garden shelter, at the swimming pool Subject to technical changes and version changes. Errors and omissions excepted. Date of publication: 07.19 Product information 1 / 4...
Page 2: Product Information
> With power cable for permanent connection, length: ≤ 65 cm > Can also be controlled via tablet or smartphone (iOS 9 * or higher / Android-OS 4.4 or higher, FXE adapter, CLAGE Home Server and the »Smart Control« app required) * ) iOS is a registered trademark of Apple Inc.
Page 3 E-mini instant water heater set MBX Shower Installation Example of installation (vented) Dimensions in mm Assembly and operating instructions must be observed upon installation. Unit depth 87 Hand shower CXH Length: 242 Shower head: Ø 98 G ½" max. 800 Shower hose Length: 1540 Subject to technical changes and version changes.
Page 4 Adjustable hand shower CXH Hand shower for instant water heater, three modes adjustable, anti-scale insert, chrome. Dimensions: 24.2 cm length, shower head Ø 9.8 cm CXH: Part no. 0300-0086 CLAGE GmbH Phone +49 4131 8901-38 Pirolweg 1 – 5 +49 4131 2444771 21337 Lüneburg export@clage.de...
