FOSTORIA INDUSTRIES
114 Roscoe Fitz Road
Gray, TN 37615
Phone: 800-495-4525
Fax: 419-435-0842
www.fostoriaindustries.com
Division of TPI Corporation
FES - Series
Portable Electric Heaters

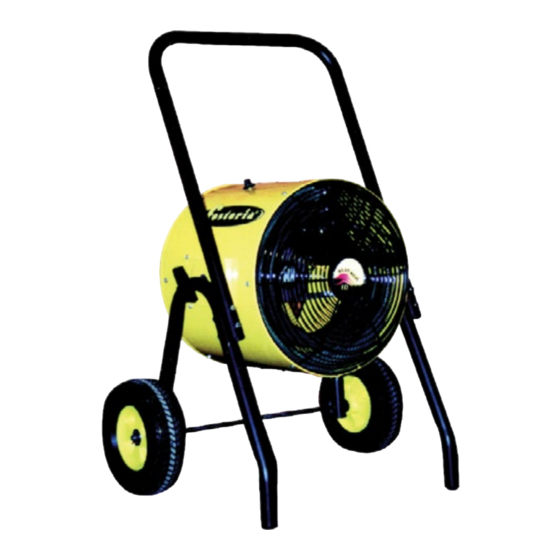

(FES-1524-3E shown)
IMPORTANT SAFETY INFORMATION INSIDE
CONSIGNES DE SÉCURITÉ IMPORTANTES
• Serious injury or death possible.
des blessures graves ou la mort • possible.
Read, understand, and follow all safety information
•
and instructions in this manual before using or
servicing this product.
Lire, comprendre et suivre toutes les consignes de
sécurité et instructions de ce manuel avant d'utiliser
ou de réparer ce produit.
• Retain these instructions for future reference.
Conserver ces instructions pour référence ultérieure.
Issue Date: 4-19-02
Rev. Date: 10/18
®
À L'INTÉRIEUR
Rev. Level: 21
®
Suspended Electric Heaters
Specifications
YES Installation
FES Assembly
Wiring
Operating
Replacement
Parts
Maintenance
ECO1-7476
OIPM P/N 8997
YES - Series
CONTENTS
Page 3
Page 4
Page 5
Page 5, 6, 7,
8, 9,
Page 10
Page 11, 12,
13
Page 14
1 OF 14
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Fostoria SUN-MITE FES Series
Summary of Contents for Fostoria SUN-MITE FES Series
- Page 1 FOSTORIA INDUSTRIES ® 114 Roscoe Fitz Road Gray, TN 37615 Phone: 800-495-4525 Fax: 419-435-0842 www.fostoriaindustries.com ® Division of TPI Corporation FES - Series YES - Series Portable Electric Heaters Suspended Electric Heaters (FES-1524-3E shown) CONTENTS IMPORTANT SAFETY INFORMATION INSIDE Specifications Page 3 CONSIGNES DE SÉCURITÉ...
-
Page 2: Important Instructions
IMPORTANT INSTRUCTIONS 1. When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electrical shock, and injury to persons, including the following: 2. Read all instructions before using this heater. 3. CAUTION: High temperatures. Keep cords and all other combustible material, such as furniture, papers, clothes and curtains away from the heater. -
Page 3: Specifications
38” Description – Fostoria portable and suspended electric heaters provide clean, quiet, odor-free, fan-forced heat. They are designed to circulate room air continuously; gradually heating a confined space. The best results will be obtained when using these heaters in smaller, insulated spaces. Features include a safety-yellow enclosure with front and rear safety screens;... - Page 4 YES - SERIES INSTALLATION ALL Fostoria YES models require some assembly. Four steps are required to complete the assembly and installation. Step 1: Install (1) side rotating stop over bolt Tools required: (2) ¾” socket or box wrenches. and into curved slot (as shown at right) on each side of heater.
-
Page 5: Operating
FES – SERIES ASSEMBLY Tools Required: (2) 7/16” socket or box wrenches. To position the handle at operating height: BOLTS Step 1: Remove and keep the hardware securing the handle to the legs. Step 2: Raise handle until holes align with the upper WASHERS holes in the legs. -
Page 6: Electrical Shock Hazard
WIRING (continued) Models FES-1024-1CA and FES-0924-1C are FES-1024-1CA, FES-0924-1C shipped with a cordset factory-installed. This 240 VOLT / 2500 WATT ELEMENTS cordset contains a plug for use with a 50A household CONTACTOR TYP. 4 GROUND COIL range receptacle. The blade configuration on the GREEN plug included on these heaters is represented in WHITE... - Page 7 WIRING (continued) YES-1524-1A 240 V / 2500W ELEMENT (TYP. 6) CONTACTOR FUSE FLNR-40 250V THERMOSTAT FAN MOTOR TERMINAL GROUND LUG NON-CYCLING BLOCK CONTACTOR COIL THERMOSTAT 240 VOLTS 60 HZ 1-PHASE 15KW CYCLING OVER-TEMP. SWITCH MAXIMUM OVER CURRENT PROTECTION 80 MAPS USE COPPER WIRE ONLY Attach feeder cable or cable kit to heater as shown in photograph at right for the single-phase models indicated.
- Page 8 WIRING (continued) FES-1524-3E & YES-1524-3E FES-1520-3A & YES-1520-3A 208 VOLTS 60HZ 240 VOLTS 60HZ 3-PHASE 15KW 3-PHASE 15KW L1 L2 L3 L1 L2 L3 MAXIMUM OVERCURRENT PROTECTION 55 AMPS, MAXIMUM OVERCURRENT PROTECTION 45 AMPS, USE COPPER WIRE ONLY USE COPPER WIRE ONLY CABLE NOT INCLUDED CABLE NOT INCLUDED 240V / 2500W ELEMENTS...
- Page 9 WIRING (continued) FES-3048-3A & YES-3048-3A FES-3060-3A & YES-3060-3A 600 VOLTS 60HZ 480 VOLTS 60HZ 3-PHASE 30KW 3-PHASE 30KW MAXIMUM OVERCURRENT PROTECTION 40 AMPS, MAXIMUM OVERCURRENT PROTECTION 45 AMPS, L1 L2 L3 L1 L2 L3 USE COPPER WIRE ONLY USE COPPER WIRE ONLY CABLE NOT INCLUDED CABLE NOT INCLUDED GROUND LUG...
-
Page 10: Operating Instructions
OPERATING INSTRUCTIONS Fostoria FES and YES series heaters are designed Note: ALL FES/YES models are equipped with to circulate room air across its heating elements an internal over temperature limit designed to to gradually increase room temperature. The best protect your heater if a restricted airflow condition performance results will be obtained when using occurs. -
Page 11: Replacement
FES REPLACEMENT PARTS LIST& EXPLODED VIEWS 1024-1CA Description 1520-3A 1524-3E 1548-3E 1560-3A 3048-3A 3060-3A 0924-1C Motor 08482001 (1) 08482001 (1) 08482001 (1) 08482002 (1) 08482003 (1) 08482004 (1) 08482005 (1) Bolt carriage ½-13 x 2-3/4 32137-001 (2) 32137-001 (2) 32137-001 (2) 32137-001 (2) 32137-001 (2) 32137-001 (2) -
Page 12: Parts
FES REPLACEMENT PARTS LIST& EXPLODED VIEWS GRILL ATTACHMENT THERMOSTAT Description 1524-1A Motor 08482001 (1) Bolt carriage ½-13 x 2-3/4 32137-001 (2) Rotating stop 32127-001 (2) Thermostat 02470300 (1) Washer Reducing ROTATING STOP (not shown) Knob thermostat 02470500 (1) Strap 32103-001 (1) Shroud 32136-101 (1) Motor mount bracket... - Page 13 Screw ½-13 x 1-1/2 28953-004 Rotating Stop – Side 32146-001 To convert an FES unit to a YES unit order the Fostoria kit Model WMK-FES p/n 04804102. Issue Date: 4-19-02 Rev. Date: 10/18 Rev. Level: 21 ECO1-7476 OIPM P/N 8997...
-
Page 14: Maintenance
MAINTENANCE Other than periodic cleaning of the exterior, no maintenance is required for these heaters. • Do not hose these units down. Remove dust and dirt from inside heater with • compressed air. Do not operate these heaters without the grills or the •...
