Page 1

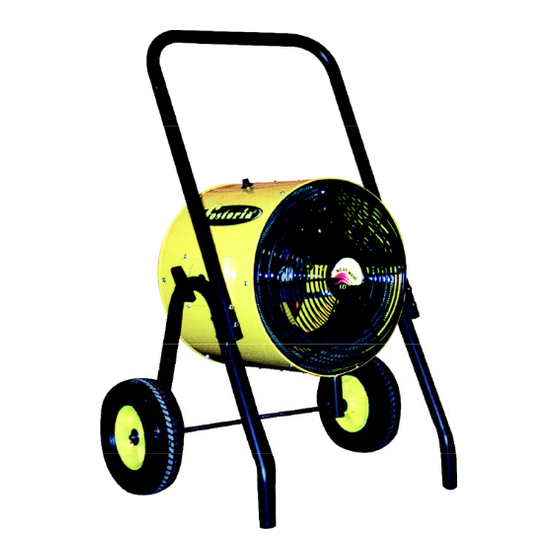

FOSTORIA INDUSTRIES, INC. 1200 North Main Street Fostoria, OH 44830-1911 Phone: 800-495-4525 Fax: 419-435-0842 www.fostoriaindustries.com A DIVISION OF FES - Series Portable Electric Heaters YES - Series Suspended Electric Heaters (FES-1524-3E shown) CONTENTS Specifications Page 2 IMPORTANT SAFETY INFORMATION INSIDE...
Page 2
Description – Fostoria portable and suspended electric heaters provide clean, quiet, odor-free, fan-forced heat. They are designed to circulate room air continuously; gradually heating a confined space. The best results will be obtained when using these heaters in smaller, insulated spaces. Features include a safety-yellow enclosure with front and rear safety screens; reliable stainless steel finned heating elements;...
Page 3
YES - SERIES INSTALLATION ALL Fostoria YES models require some assembly. Four steps are required to complete the assembly and installation. Tools required: (2) ¾” socket or box wrenches. Step 1: Install (1) side rotating stop over bolt and into curved slot (as shown at Parts required: the two screws required to secure right) on each side of heater.
Page 4
FES – SERIES ASSEMBLY Tools Required: (2) 7/16” socket or box wrenches. To position the handle at operating height: Bolts Step 1: Remove and keep the hardware securing the handle to the legs. Step 2: Raise handle until holes align with the upper holes in the legs.
Page 5
WIRING (continued) FES-1024-1CA YES-1024-1CA Models FES-1024-1CA and YES-1024-1CA are shipped with a cordset factory-installed. This cordset contains a plug for use with a 50A household range receptacle. The blade configuration on the plug included on these heaters is represented in fig. 1 below (4-wire circuit).
Page 6
WIRING (continued) FES-1524-1A YES-1524-1A FES-1524-1A YES-1524-1A T E R M IN A L B L O C K Attach feeder cable or cable kit to heater as shown in Ground lug is located photograph at right for the single-phase models Attach circuit conductors at directly below fuse as indicated.
Page 7
WIRING (continued) FES & YES 3- PHASE WIRING DIAGRAMS FES-1520-3A YES-1520-3A FES-1524-3E YES-1524-3E MAXIMUM OVERCURRENT PROTECTION 45 AMPS. USE COPPER WIRE ONLY MAXIMUM OVERCURRENT PROTECTION 55 AMPS. USE COPPER WIRE ONLY CABLE NOT INCLUDED CABLE NOT INCLUDED FES-1548-3E YES-1548-3E FES-1560-3A YES-1560-3A MAXIMUM OVERCURRENT PROTECTION 25 AMPS.
Page 8
WIRING (continued) FES & YES 3-PHASE WIRING DIAGRAMS FES-3048-3A YES-3048-3A FES-3060-3A YES-3060-3A 480 VOLTS 60 HZ 3-PHASE MAXIMUM OVERCURRENT PROTECTION 40AMPS. MAXIMUM OVERCURRENT PROTECTION 45 AMPS. 30 KW USE COPPER WIRE ONLY USE COPPER WIRE ONLY. CABLE NOT INCLUDED CABLE NOT INCLUDED Page 8 of 24 Issue Date: 4-19-02 Rev.
Page 9
OPERATING INSTRUCTIONS Fostoria FES and YES series heaters are designed Note: ALL FES/YES models are equipped with to circulate room air across its heating elements to an internal over temperature limit designed to gradually increase room temperature. The best protect your heater if a restricted airflow...
Page 11
Screw ½-13 x 1-1/2 2480132 Rotating Stop – Side 8484423 To convert an FES unit to a YES unit order the Fostoria kit Model WMK-FES p/n 04804102. Page 11 of 24 Issue Date: 4-19-02 Rev. Date: 11-10-04 Rev. Level: 10 OIPM P/N 3420458...
LIMITED WARRANTY FOSTORIA INDUSTRIES, INC. – 1200 North Main Street - Fostoria, Ohio 44830-1911 - (419) 435-9201 The warranty herein set forth is in lieu of all other warranties expressed or The obligation of Fostoria Industries, Inc. under the terms of this warranty, shall be to implied.
