OPERATION – INSTALLATION – PARTS MANUAL
WARNING!
DO NOT ATTEMPT TO INSTALL, OPERATE, OR SERVICE THIS PRODUCT BEFORE READING ALL
INSTRUCTIONS CAREFULLY. FAILURE TO COMPLY WITH THESE INSTRUCTIONS COULD RESULT IN
INJURY
PROPERTY DAMAGE!
AND/OR

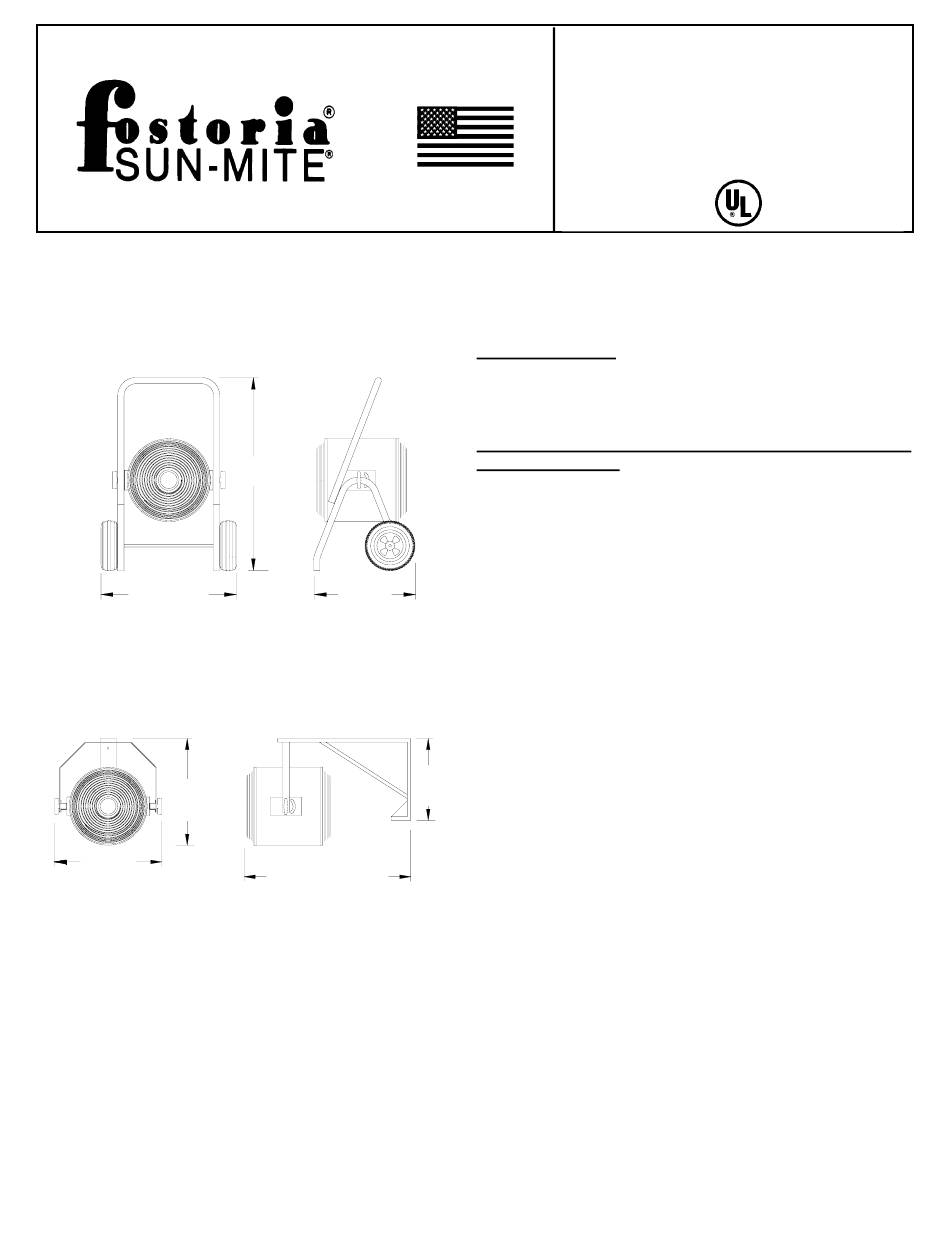

FES Models
27"
10kW 1 phase & 15kW series 3 phase: 21"
15kW series 1 phase & 30Kw series: "23"
YES Models
23"
23"
Read all instructions before using this heater.
SOME SMOKING MAY OC CUR DURING THE FIRST 100
MINUTES OF OPERATION. THIS IS NORMAL AND IS THE
RESULT OF A PROTECTIVE COATING ON THE HEATING
ELEMENTS. OPERATION DURING T HIS INITIAL PERIOD
SHOULD THEREFORE BE DONE IN A WELL-VENT ILATED
AREA.
DO NOT USE OUTDOORS.
Issue Date: 4-19-02
Rev. Date: 12-12-03
RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.
39"
See
below
10Kw series: 36"
15Kw series 1 PH : 38"
15Kw series 3 PH : 36"
30Kw series: 38"
IMPORTANT SAFETY INFORMATION
Rev. Level: 07
ELECTRIC PORTABLE HEATER
FES-1024-1CA 08860010
FES-1520-3A 08860110
FES-1524-1A 08860710
FES-1524-3E 08860210
FES-1548-3E 08860310
FES-1560-3A 08860410
FES-3048-3A 08860510
FES-3060-3A 08860610
Made in
U.S.A.
REQUIRED CLEARANCES
ON ALL MODELS: KEEP COMBUSTIBLE MATERIALS
SUCH AS FURNITURE, PAPERS, CLOTHES AND
CURTAINS AT LEAST 3 FEET FROM THE FRONT, SIDES
AND REAR OF HEATER.
ADDITIONAL CLEARANCE REQUIREMENTS FOR ALL
"YES" MODELS: THE UNIT MUST BE MOUNTED AT
LEAST 6 FEET ( OR 1.8 METERS) OFF THE FLOOR AND
2 FEET FROM THE CEILING.
UL File Number:
FES models.................................................E154159
YES models................................................E32304
Fan Output:
10 & 15 KW series........................................800 CFM
30 KW series..............................................1100 CFM
Heat output:
10 KW series...........................................34130 BTU
15 KW series...........................................51120 BTU
30 KW series..........................................102390 BTU
17.5"
Power requirements:
FES & YES 1024-1CA................240V, 1PH, 42 Amps
FES & YES 1520-3A..................208V, 3PH, 41.5 Amps
FES & YES 1524-1A..................240V, 1PH, 62.5 Amps
FES & YES 1524-3E..................240V, 3PH, 36 Amps
FES & YES 1548-3E..................480V, 3PH, 18 Amps
FES & YES 1560-3A..................600V, 3PH, 14.4 Amps
FES & YES 3048-3A..................480V, 3PH, 36 Amps
FES & YES 3060-3A..................600V, 3PH, 30 Amps
This heater is hot when in use. To avoid burns, do not let bare
skin touch hot surfaces. Use handle when moving this heater.
Extreme caution is necessary when any heater is used by or
near children or invali ds and whenever the heater is
operating and unattended.
(Continued on page 2)
OIPM P/N 3420458
YES-1024-1CA 08861510
YES-1520-3A 08860810
YES-1524-1A 08861810
YES-1524-3E 08860910
YES-1548-3E 08861010
YES-1560-3A 08861110
YES-3048-3A 08861210
YES-3060-3A 08861310
C
US
FIRE, PERSONAL
SPECIFICATIONS
left
Page 1 of 7
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Fostoria FES-1024-1CA
Summary of Contents for Fostoria FES-1024-1CA
-
Page 1: Specifications
ELECTRIC PORTABLE HEATER OPERATION – INSTALLATION – PARTS MANUAL FES-1024-1CA 08860010 YES-1024-1CA 08861510 FES-1520-3A 08860110 YES-1520-3A 08860810 FES-1524-1A 08860710 YES-1524-1A 08861810 FES-1524-3E 08860210 YES-1524-3E 08860910 FES-1548-3E 08860310 YES-1548-3E 08861010 FES-1560-3A 08860410 YES-1560-3A 08861110 FES-3048-3A 08860510 YES-3048-3A 08861210 FES-3060-3A 08860610 YES-3060-3A 08861310 Made in U.S.A. -
Page 2: Safety Information
Always use the proper size SO cable for the electrical hook-up of this salamander. The proper cable size is shown in the table below. Fostoria offers the cable kits as indicated by unit rating. The electrical connections must include some provision for... - Page 3 “FES” ASSEMBLY All Fostoria FES models come fully assembled with the handle attached in a lowered shipping position. Tools Required: (2) 7/16” sockets or box wrenches Bolts To position the handle at operating height: Step 1: Remove and keep the hardware securing the handle to the legs.
- Page 4 FES & YES COMMON REPLACEMENT PARTS LIST & EXPLODED VIEWS Description 1024-1CA 1520-3A 1524-3E 1548-3E 1560-3A 3048-3A 3060-3A Motor 8482001 (1) 8482001 (1) 8482001 (1) 8482002 (1) 8482003 (1) 8482004 (1) 8482005 (1) Bolt carriage ½-13 x 2-3/4 2470132 (2) 2470132 (2) 2470132 (2) 2470132 (2)
- Page 5 3446432 Screw ½-13 x 1-1/2 2480132 Rotating Stop – Side 8484423 To convert an FES unit to a YES unit order the Fostoria kit Model WMK-FES p/n 04804102. Issue Date: 4-19-02 Rev. Date: 12-12-03 Rev. Level: 07 OIPM P/N 3420458...
- Page 6 FES & YES WIRING DIAGRAMS 1024-1CA 1520-3A CORD KIT 6/4 (NOT PROVIDED), REFER TO INSTALLATION CHART ON PAGE 2 FOR FOSTORIA PART NO. 1524-1A 1524-3E CORD KIT 6/4 (NOT PROVIDED), REFER TO INSTALLATION CHART ON PAGE 2 FOR FOSTORIA PART NO.
-
Page 7: Warranty
(12) month period under normal use and service Fostoria Industries, Inc. to bear the cost of labor in r eplacing any assembly, unit o r following date of manufacture or installation when proof of such is provided...
