Panel and Handle Profile—110° Door Opening
SUB-ZERO UNIT
DOOR CLOSED
APPROX PROFILE OF
STAINLESS STEE WRAPPED
DOOR AND HANDLE
APPROX THICKNESS OF

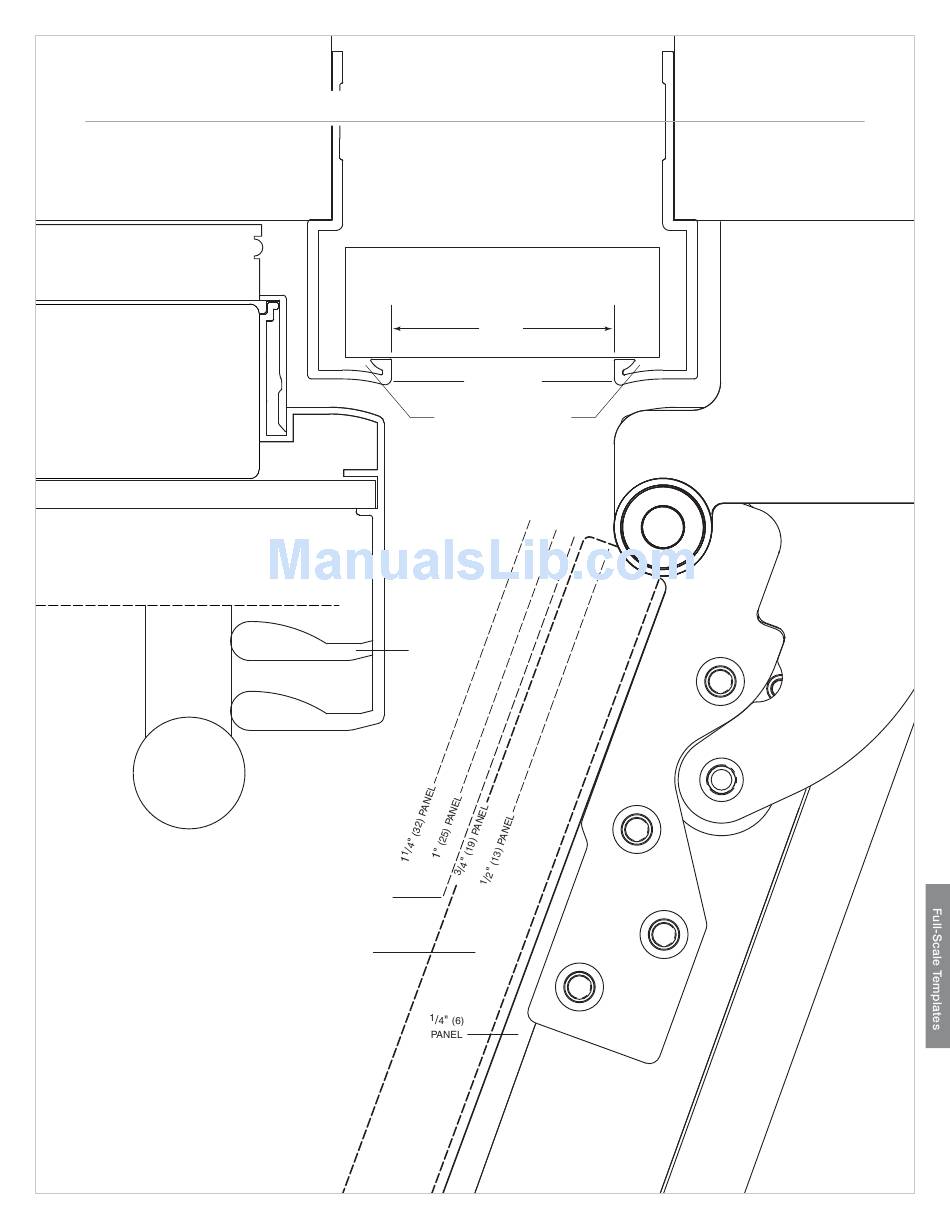

This full-scale template
shows the panel and handle
profile for a dual installation
with a 2" (51) filler strip at
110˚ door opening.
Interference of door panels
with handles at maximum
door opening may require
the use of an optional 90˚
door stop available through
your Sub-Zero dealer.
Dimensions in parentheses
are in millimeters unless
otherwise specified.
ALLOW FOR FILLER LAP
STANDARD
FRAMED
FULL-LENGTH
HANDLE
OPTIONAL
FRAMED EXTENDED
FULL-LENGTH HANDLE
WRAPPED STAINLESS
STEEL DOOR
OVERLAY PANEL
3
/ "
(19) THICK
4
(TYPICAL)
TOP VIEW
FILLER STRIP
2"
(51)
MAIN FRAME
BEHIND FLANGE
DOOR OPEN 110˚
