Overlay Panels
Overlay Panels.

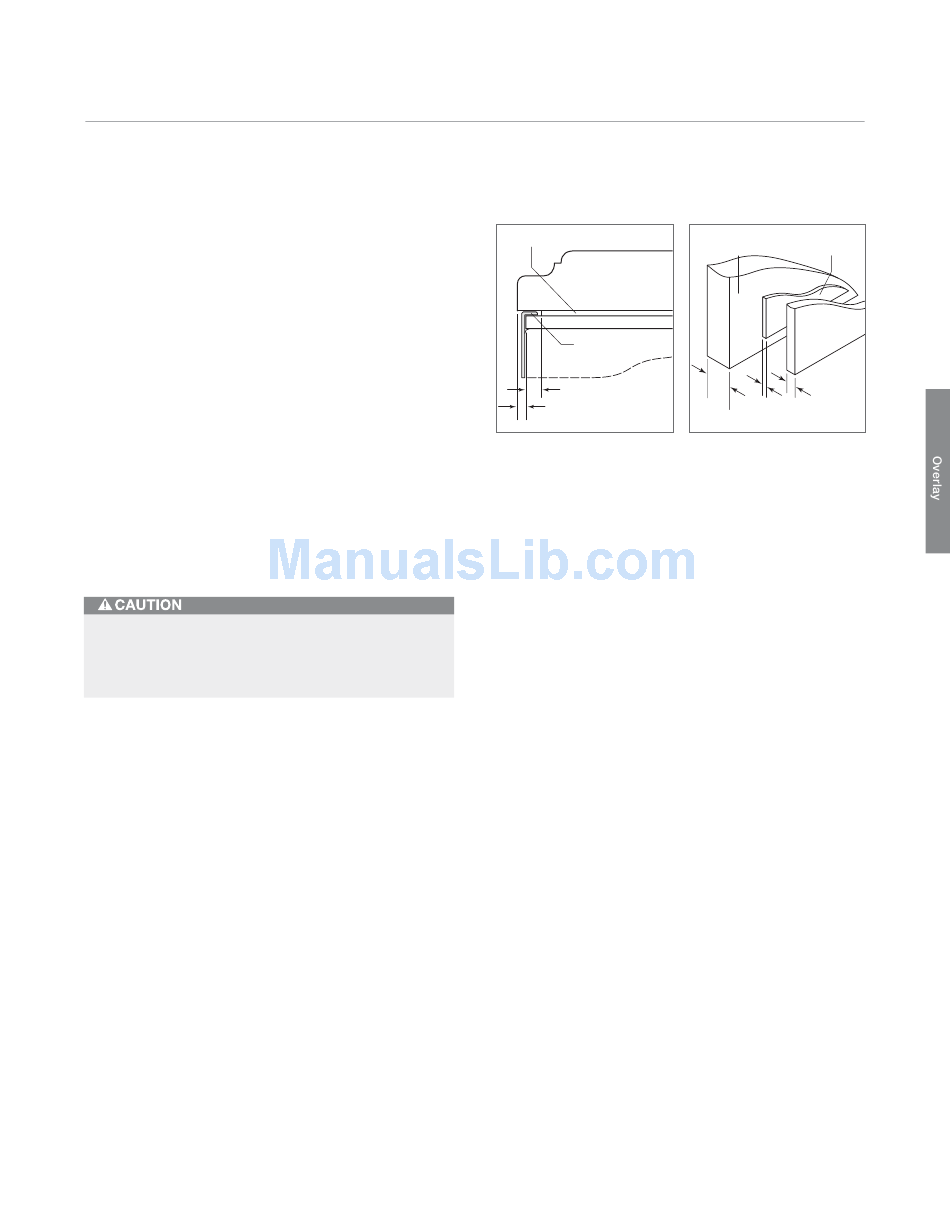

The illustrations provide a cross
section view of the three-panel assembly showing place-
ment of the trim and a rear view of the three-panel
assembly with critical dimensions, standard for all built-in
models.
Overlay grille panels for the panel grille match the design
of the overlay door panels. Dimensions for the grille panel
are listed in the overlay panel specifications on the follow-
ing pages.
IMPORTANT NOTE: On glass door models, the edges of
the window cut-out will need to be finished, as they will
be exposed.
IMPORTANT NOTE: When installing two units in a side by
side application, refer to pages 30–31 for dual standard
installations. Be aware that rough opening dimensions are
different for this application.
Do not exceed the overlay decorative panel dimen-
sions. Exceeding dimensions could cause damage
to the panels and the Sub-Zero unit.
SPACER PANEL
OVERLAY PANEL
BACKER PANEL
TRIM
5
/ "
16 (8) min
1
/ "
8
(3)
Panel assembly cross
section.
19
subzerotrade.com
OVERLAY SPACER
PANEL PANEL
BACKER
PANEL
3
/ "
4
1
.10" / "
(19) (3) 4 (6)
typical
Panel assembly rear view.
