Sub-Zero BI-36U Design Manual page 39

Overlay Panel Application—90° Door Opening
7
23 / "
(606)
8
TO REAR OF UNIT
APPROX THICKNESS
OF WRAPPED STAINLESS
STEEL DOOR
OVERLAY PANEL
3 / "
(19) THICK
4
(TYPICAL)
SUB-ZERO UNIT
OVERALL WIDTH
OF UNIT
MAIN FRAME
DOOR OPEN 90˚
39
subzerotrade.com
DOOR CLOSED
TOP VIEW

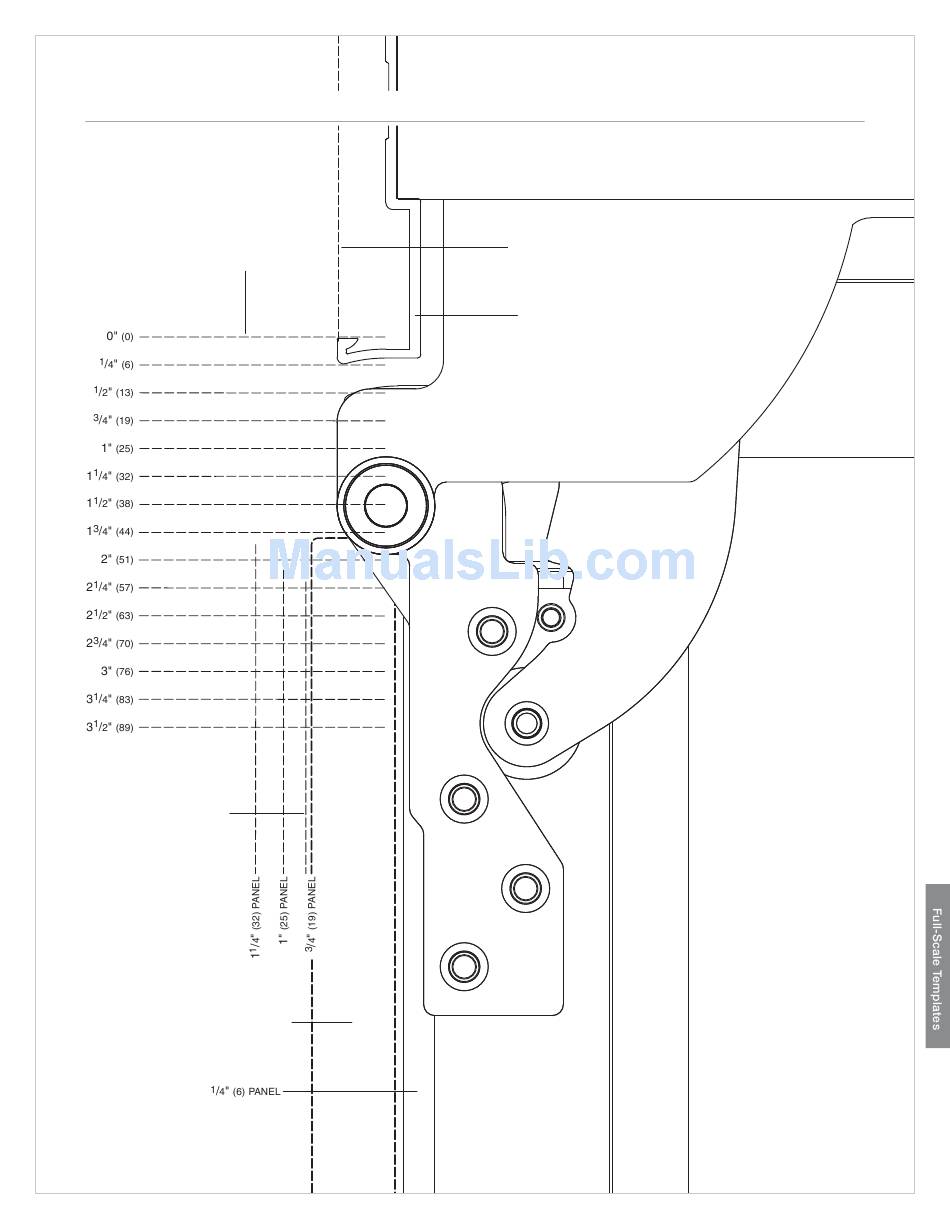

This full-scale template
shows what considerations
you need to make for
overlay panel applications
and how they may interact
with adjacent cabinets and
countertops.
