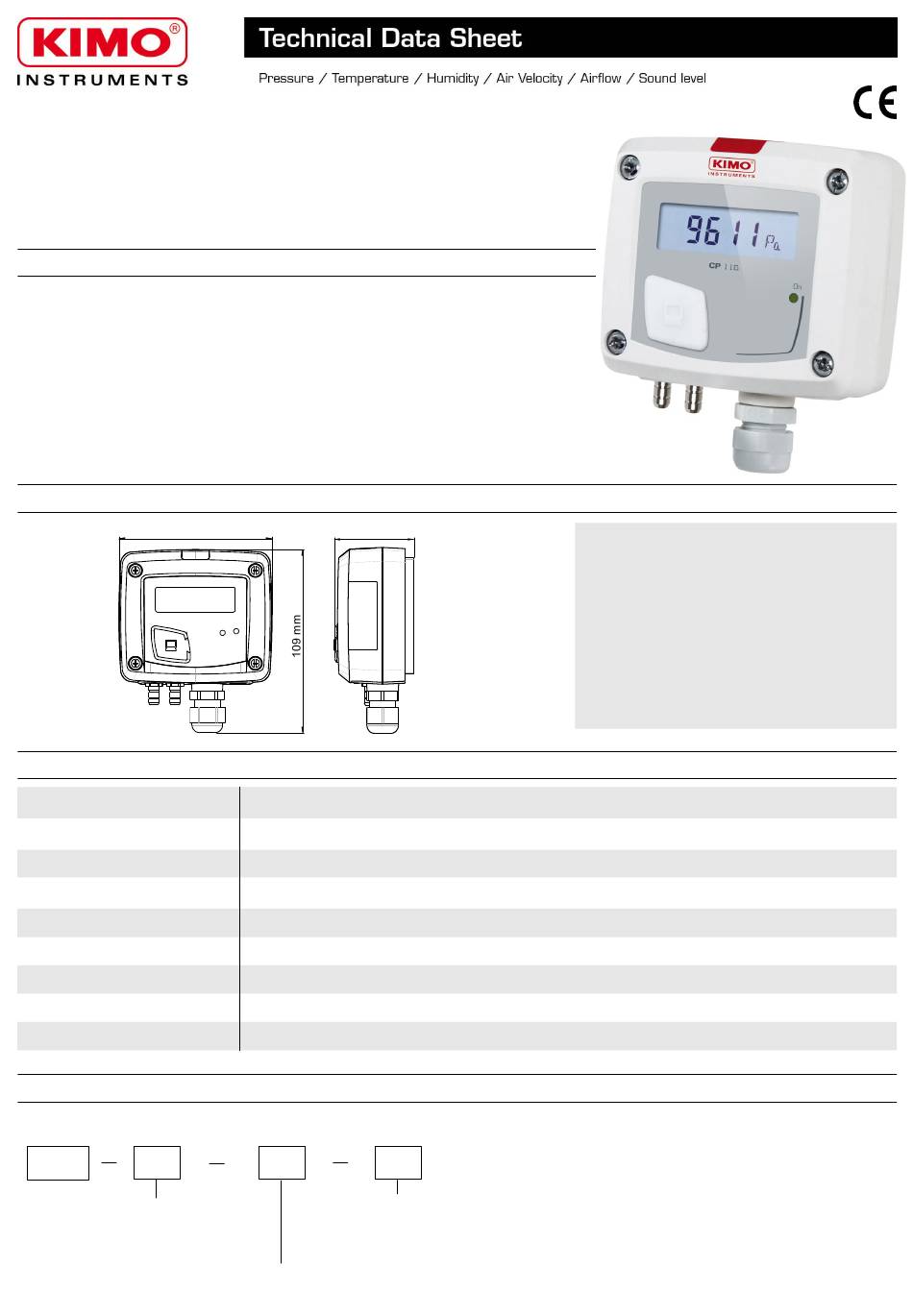

Kimo CP 111 Technical Data Sheet

Kimo CP 111 Technical Data Sheet

Differential pressure transmitter

Advertisement

Quick Links

Differential pressure transmitter
CP 111 – CP 112 – CP 113

KEY POINTS

- Ranges from -100/+100 Pa to -10000/+10000 Pa (according to models)
- Configurable intermediary ranges
- 0-10 V or 4-20 mA output, active, power supply 24 Vac/Vdc (3-4 wires) or 4-20 mA
output, passive loop, power supply from 16 to 30 Vdc (2 wires)
- ABS V0 housing, IP65, with or without display
- "¼ turn" system mounting with wall-mount plate
- Housing with simplified mounting system
- Solenoid valve for auto-calibration (only on CP111 model)

FEATURES OF THE HOUSING

90 mm

TECHNICAL FEATURES

Measurement units
Accuracy*
Response time
Resolution
Type of fluid
Overpressure tolerated
Operating temperature
Storage temperature
*All the accuracies indicated in this technical datasheet were stated in laboratory conditions, and can be guaranteed for measurements carried out in the same conditions, or carried out with calibration compensation.

PART NUMBER

To order, just add the codes to complete the part number :
CP 11
Measuring range
1 : -100/+100 Pa
2 : -1000/+1000 Pa
3 : -10 000/+10 000 Pa
46 mm
Pa, mmH
O, inWG, mmHG, daPa, kPa, hPa, mbar
2
CP111 : ±1% of reading ±2 Pa ; CP112 : ±1.5% of reading ±3 Pa ; CP113 : ±1.5% of reading ±3 mmH
1/e (63%) 0.3 s
1 Pa ; 0.1 mmH
O ; 0.01 mbar ; 0.01 inWG ; 0.01 mmHG ; 0.1 daPa ; 0.001 kPa
2
Manual with push-button ; Automatic by solenoid valve (only on CP111 model)
Air and neutral gases
CP111/112 : 21 000 Pa – CP113 : 69 000 Pa
From 0 to +50 °C
From -10 to +70 °C
O : with display
N : without display
Power supply / Output
A : Active – 24 Vac/Vdc – 0-10 V or 4-20 mA
P : Passive – 16/30 Vdc – 4-20 mA
Material : ABS V0 as per UL94
Protection : IP65
Display : LCD 10 digits. Size : 50 x 17 mm
Height of digits : Value : 10 mm ; Unit : 5 mm
Connections : ribbed, Ø 6.2 mm
Cable gland : for cables Ø 8 mm maximum
Weight : 143 g
Example : CP 113 – AO
Pressure transmitter measuring range -10 000/+10 000 Pa,
0-10 V or 4-20 mA active, with display
Display
O
2
