Litho U.S.A.
2011

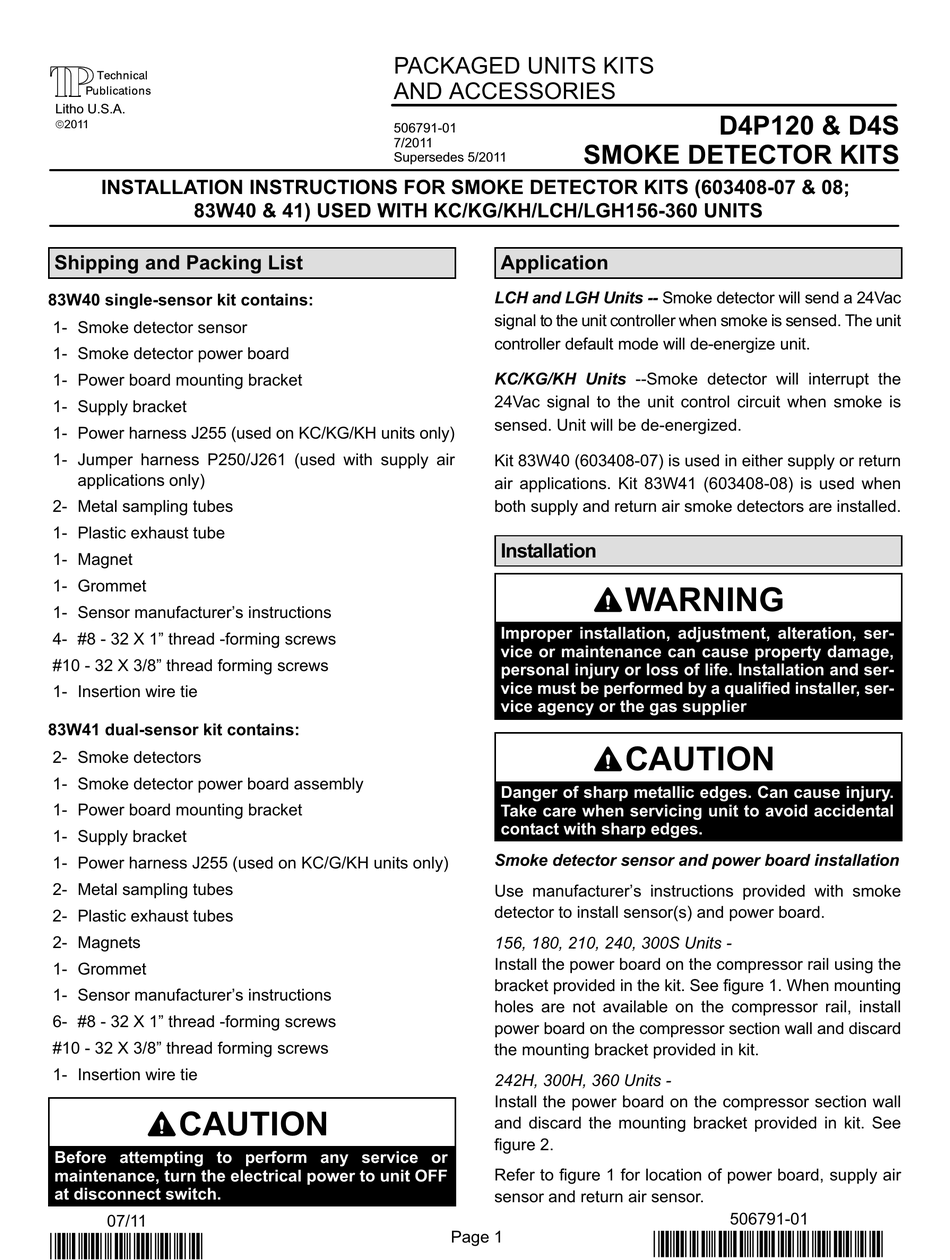

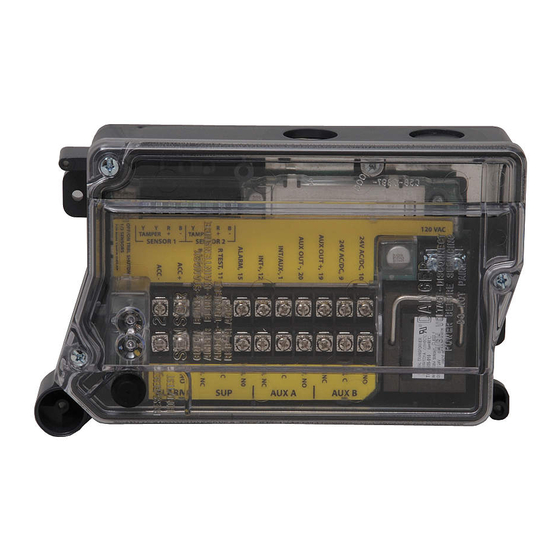

INSTALLATION INSTRUCTIONS FOR SMOKE DETECTOR KITS (603408−07 & 08;
83W40 & 41) USED WITH KC/KG/KH/LCH/LGH156−360 UNITS
Shipping and Packing List
83W40 single−sensor kit contains:
1− Smoke detector sensor
1− Smoke detector power board
1− Power board mounting bracket
1− Supply bracket
1− Power harness J255 (used on KC/KG/KH units only)
1− Jumper harness P250/J261 (used with supply air
applications only)
2− Metal sampling tubes
1− Plastic exhaust tube
1− Magnet
1− Grommet
1− Sensor manufacturer's instructions
4− #8 − 32 X 1" thread −forming screws
#10 − 32 X 3/8" thread forming screws
1− Insertion wire tie
83W41 dual−sensor kit contains:
2− Smoke detectors
1− Smoke detector power board assembly
1− Power board mounting bracket
1− Supply bracket
1− Power harness J255 (used on KC/G/KH units only)
2− Metal sampling tubes
2− Plastic exhaust tubes
2− Magnets
1− Grommet
1− Sensor manufacturer's instructions
6− #8 − 32 X 1" thread −forming screws
#10 − 32 X 3/8" thread forming screws
1− Insertion wire tie
CAUTION
Before attempting to perform any service or
maintenance, turn the electrical power to unit OFF
at disconnect switch.
07/11
*2P0711*
PACKAGED UNITS KITS
AND ACCESSORIES
506791−01
7/2011
Supersedes 5/2011
Application
LCH and LGH Units −− Smoke detector will send a 24Vac
signal to the unit controller when smoke is sensed. The unit
controller default mode will de−energize unit.
KC/KG/KH Units −−Smoke detector will interrupt the
24Vac signal to the unit control circuit when smoke is
sensed. Unit will be de−energized.
Kit 83W40 (603408−07) is used in either supply or return
air applications. Kit 83W41 (603408−08) is used when
both supply and return air smoke detectors are installed.
Installation
Improper installation, adjustment, alteration, ser-
vice or maintenance can cause property damage,
personal injury or loss of life. Installation and ser-
vice must be performed by a qualified installer, ser-
vice agency or the gas supplier
Danger of sharp metallic edges. Can cause injury.
Take care when servicing unit to avoid accidental
contact with sharp edges.
Smoke detector sensor and power board installation
Use manufacturer's instructions provided with smoke
detector to install sensor(s) and power board.
156, 180, 210, 240, 300S Units −
Install the power board on the compressor rail using the
bracket provided in the kit. See figure 1. When mounting
holes are not available on the compressor rail, install
power board on the compressor section wall and discard
the mounting bracket provided in kit.
242H, 300H, 360 Units −
Install the power board on the compressor section wall
and discard the mounting bracket provided in kit. See
figure 2.
Refer to figure 1 for location of power board, supply air
sensor and return air sensor.
Page 1
D4P120 & D4S
SMOKE DETECTOR KITS
WARNING
CAUTION
506791−01
*P506791-01*

Advertisement

loading
Need help?

Need help?

Do you have a question about the D4P120 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for System Sensor D4P120

  • Page 1 PACKAGED UNITS KITS AND ACCESSORIES Litho U.S.A. D4P120 & D4S 2011 506791−01 7/2011 SMOKE DETECTOR KITS Supersedes 5/2011 INSTALLATION INSTRUCTIONS FOR SMOKE DETECTOR KITS (603408−07 & 08; 83W40 & 41) USED WITH KC/KG/KH/LCH/LGH156−360 UNITS Shipping and Packing List Application LCH and LGH Units −− Smoke detector will send a 24Vac 83W40 single−sensor kit contains:...
  • Page 2 SMOKE DETECTOR COMPONENT LOCATIONS (1560300S Unit With Economizer Shown) PLASTIC EXHAUST TUBE METAL SAMPLING TUBE INSERTION WIRE TIE (use to secure harness to side of power board) SMOKE DETECTOR POWER BOARD JACK/PLUG LOCATION (P255, J250 & J252) RETURN AIR SAMPLING SENSOR (sampling holes pointing...
  • Page 3 Sampling tube installation 2− Slide metal sampling tube and plastic exhaust tube onto the back side of the sensor as shown in figure 3. 1− Select the appropriate sampling tube. Return air sensor −− 36" 3− Orient sampling tube so that holes point toward the Supply air sensor −−...
  • Page 4 power harness near the power board jack/plugs in the Wiring − KG/KC/KH Units compressor section. Use markings on wires to 1− Locate and disconnect wires labeled SM−1 and SM−4 identify jack/plugs. in control area. See figure 4. 3− Make jack/plug connections as shown in figure 5 2−...
  • Page 5 Wiring − KG/KC/KH Units (continued) KC, KG or KH Unit Application with Single Return Air Smoke Detector (Note: Verify that power board DIP switch is set to 1) COMPRESSOR COMPARTMENT SM−1 Discard P250/J261 SM−4 Harness Provided In Kit Set DIP Power Harness switch to 1 RETURN AIR SECTION...
  • Page 6 installing supply air smoke detector only and figure 10 Wiring − LGH/LCH Units when instaling both supply and return air smoke Make jack/plug connections as shown in figure 8 when detectors. Plugs are located in the unit near the location of instaling return air smoke detector only, figure 9 when the sensor(s) and power board.
  • Page 7 Test Magnets Maintenance and Test Procedure Instructions A test magnet is provided in a bag assembly with each The sensor manufacturer’s instructions, which are sensor. Remove the magnet from the bag assembly and provided with each sensor, outline information on place it on a metal surface near the sensor.
