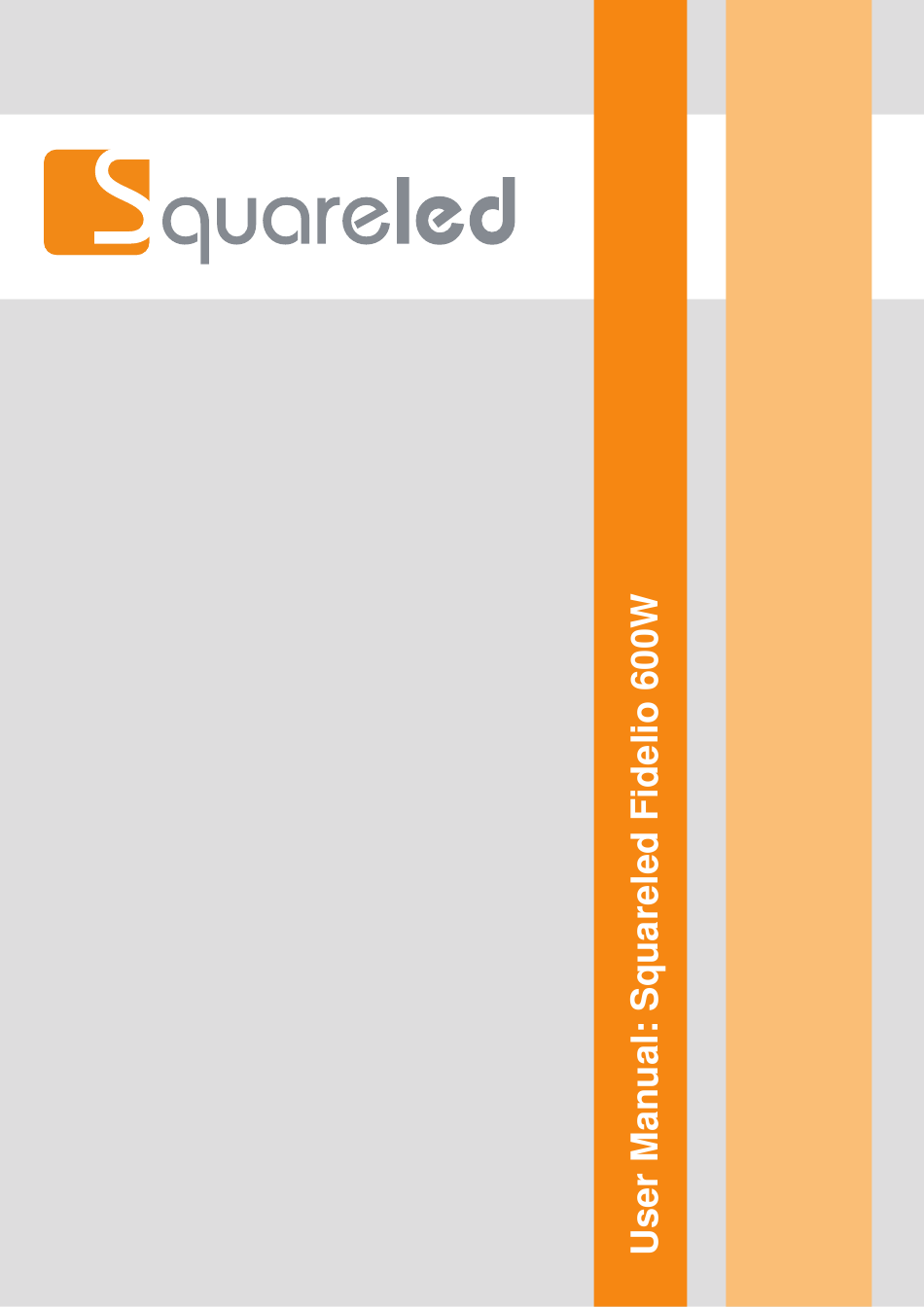

Squareled Fidelio User Manual

600w
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Fidelio and is the answer not in the manual?

Questions and answers

Related Manuals for Squareled Fidelio

Summary of Contents for Squareled Fidelio

  • Page 2 Manual SQUARELED FIDELIO...

  • Page 3: Table Of Contents

    Catalogue 1．SAFETY GUIDE ..............................3 2．TECHNICAL SPECIFICATION .......................... 4 3．HOW TO SET UP THE MACHINE ........................6 3.1 control panel ............................. 6 3.2 MAIN FUNCTIONS ............................6 4. UNIVERSAL DMX CONTROLLER CONTROL....................2 4.1 DMX Connect ............................ 2 4.2 Address ID setting ........................... 2 4.3 DMX 512 Channel ..........................

  • Page 4: 1．Safety Guide

    1．Safety Guide Please read this manual carefully Warning Note： The equipment is packaged at the factory, please follow the user manual. None machine failure is not covered by the warranty. ● Please open it carefully to ensure that the lamp is not damaged by transportation. ●The fixture is only suitable for indoor dry places.

  • Page 5: 2．Technical Specification

    2．Technical Specification Light Source LED Type: High power 600W White LED CCT: 8000K / 6500K LED life: 20,000H CRI: ≥90 Pan&Tilt Pan: 540° (16 bit) Tilt: 270° (16 bit) Advanced scanning system is faster, more stable, quieter, with automatic error correction reset function.
  • Page 6 The DMX address code, machine reset, voice mode conversion and other functions can be changed from the console; so that the customer can know the fixture usage in time. Other function Input signal isolation protection function ensures signal transmission is stable and undisturbed.

  • Page 7: 3．How To Set Up The Machine

    3．How to set up the machine 3.1 control panel LCD Display：Display function menu and selected functions Rear side covers card board 1. DMX signal input/output: DMX512 connection, connect DMX console and fixtures with XLR signal line, and input /output DMX signal; 2.
  • Page 8 P/T Feedback Yes/No Dimmer Curve Liner Square law Inv SQ law S Curve Dimmer Speed Fast Smooth Focus Compensate Disable Near Medium Display Display Inverse Yes/No Setting Backlight Switch On/Off Backlight Intensity 1-10 ℃ ℉ Temperature Unit Language English/Chinese Test Auto Test Manual Test Fixture...
  • Page 9 Select the View DMX Value and press ENTER to confirm, the current DMX value will be displayed on the display. Use UP/DOWN to select the value and press ENTER to save. Press MENU to return to the previous menu or wait 1min is automatically exit the menu mode. Fixture Setting Enter MENU mode, select Fixture Setting, press ENTER to confirm, use UP/DOWN to select: Pan Inverse, Tilt Inverse, P/T Feedback, Backlight Switch, Backlight Intensity, Dimmer Speed,...
  • Page 10 Mode1（Optical linearity）：As the DMX value increases, the increase in light intensity tends to be linear； Mode2（Square rate）：The light intensity is controlled to be fine at low values and thicker at high values； Mode3（Reverse squared rate）：The light intensity is controlled to be thicker at low values and thinner at high values;...
  • Page 11 Select manual test, press the ENTER button to confirm, the current channel will be displayed on the screen. Use UP/DOWN to select a channel: press ENTER to confirm, then use UP/DOWN to adjust the channel value and press ENTER to save, the machine will run at the value of the channel.
  • Page 12 Special function Enter the menu mode, select the special function, press the ENTER button to confirm, select: Restore Factory Settings. Factory setting Select to restore Factory setting, press the ENTER button to confirm, use the UP/DOWN button to select No (keep the current setting) or (Restore Factory setting), once selected, press the ENTER button to save.

  • Page 14: Universal Dmx Controller Control

    4. Universal DMX Controller Control 4.1 DMX Connect 1. In order to reduce signal errors and avoid signal attenuation and interference during transmission, a 120OHM 1/4W resistor can be added between the 2 and 3 cores of the DMX output of the last machine. 2.

  • Page 15: Dmx 512 Channel

    UP/DOWN button to select the address code (1-512) and press the ENTER button to save. Press the MENU button to return to the previous menu or wait for one minute to automatically exit the menu mode. Please refer to the chart below to set the address codes of the first 4 fixtures. Fixture 1 Fixture 2 Fixture 3...
  • Page 16 (170-179) Dimmer Speed Default (180-189) Dimmer Speed Fast (190-199) Dimmer Speed Smooth (200-209) Reset All (210-219) Reset Effect (220-229) Reset XY (230-255) Null Strobe (0-15) Shutter closed (16-30) Shutter open (31-135) Strobe (slow to fast) (136-145) Shutter open (146-175) Fast Close Slow Open(slow to fast) (176-185) Shutter open (186-215)
  • Page 17 (8-15) R-Gobo1-1 index (16-23) R-Gobo1-2 index (24-31) R-Gobo1-3 index (32-39) R-Gobo1-4 index (40-47) R-Gobo1-5 index (48-55) R-Gobo1-6 index (56-95) Gobo1 CW(fast to slow) (96-97) Gobo1 Stop (98-129) Gobo1 CCW(slow to fast) (130-147) R-Gobo1-1 Shaking(Slow to Fast) (148-165) R-Gobo1-2 Shaking(Slow to Fast) (166-183) R-Gobo1-3 Shaking(Slow to Fast) (184-201)
  • Page 18 (184-201) Gobo2-4 Shaking(Slow to Fast) (202-219) Gobo2-5 Shaking(Slow to Fast) (220-237) Gobo2-5 Shaking(Slow to Fast) (238-255) Gobo2-6 Shaking(Slow to Fast) Iris (0-255) Big to Small Fire Wheel (0-15) Close (16-125) Rotation CW(fast to slow) (126-145) Stop (146-255) Rotation CCW(slow to fast) Prism (0-15) Prism off...

  • Page 19: Trouble Shooting

    (0-255) Index 0 -100 BladeA1 (0-255) Index 0 -100 BladeA1 (0-255) Index 0 -100 BladeA1 (0-255) Index 0 -100 BladeA1 (0-255) Index 0 -100 BladeA1 (0-255) Index 0 -100 BladeA1 (0-255) Index 0 -100 5. Trouble shooting The following are some of the problems that often occur during operation. It is accompanied by some suggestions for troubleshooting.
  • Page 20 6. Fixture cleaning The inside and outside of the lens and the mirror must be wiped frequently to make the lighting better. The frequency of wiping depends on the environment. Moist, smoky, and particularly dirty environments can cause dust to accumulate in the lens. --- Use soft linen and a special glass cleaner.
  • Page 22 Das Lichttechnikhaus Vertriebs GmbH Rudolf-Diesel-Str. 3, D-89312 Günzburg Telefon +49 (0) 82 21 207 98-0 +49 (0) 82 21 207 98-69 E-Mail info@lth-gmbh.de www.lth-gmbh.de...
